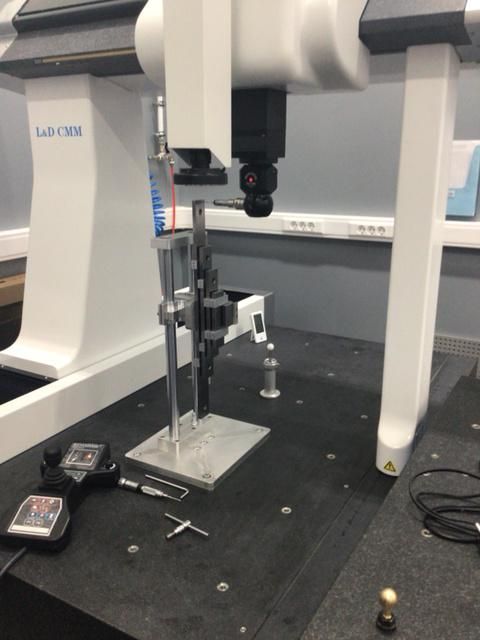

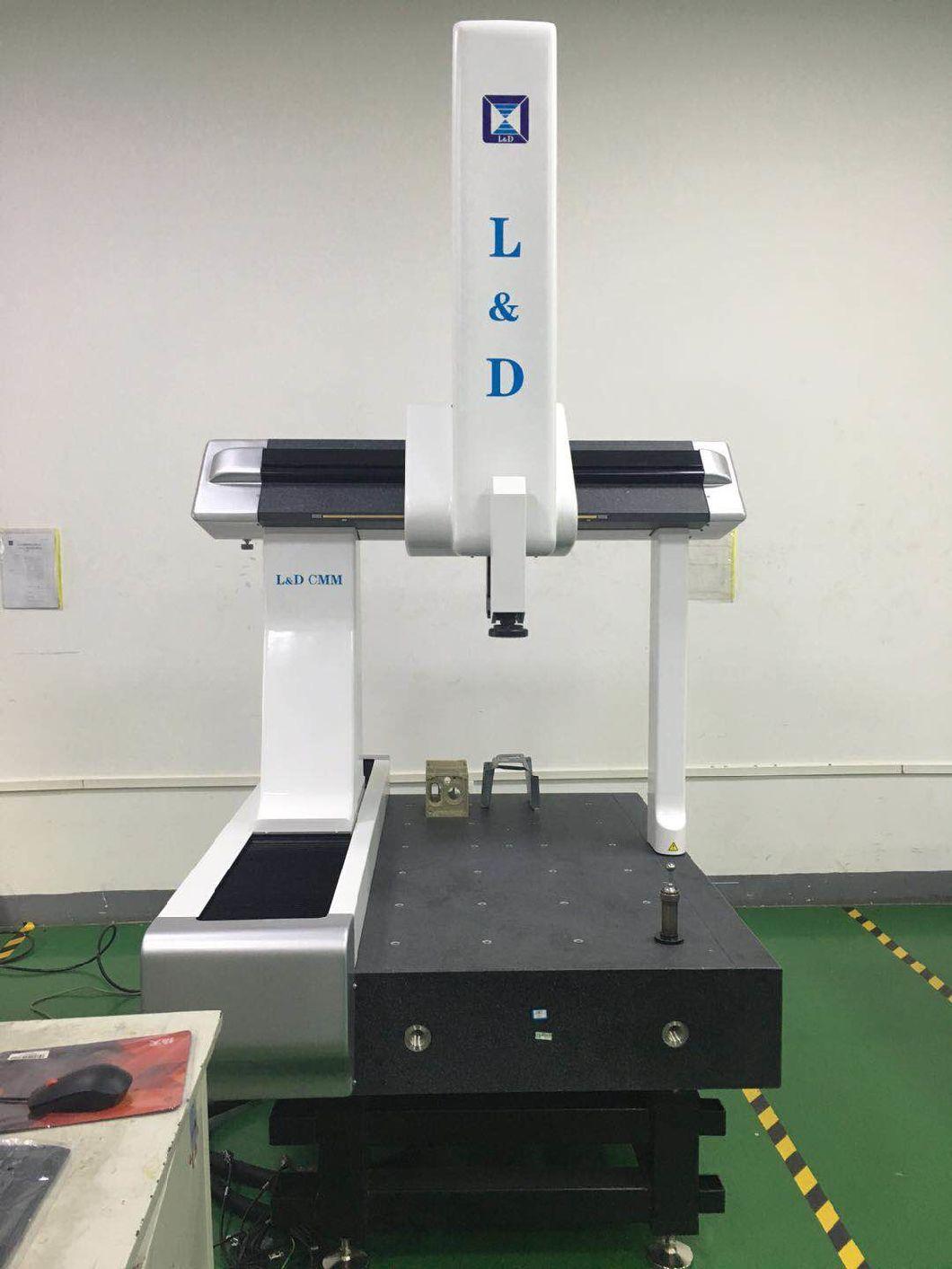

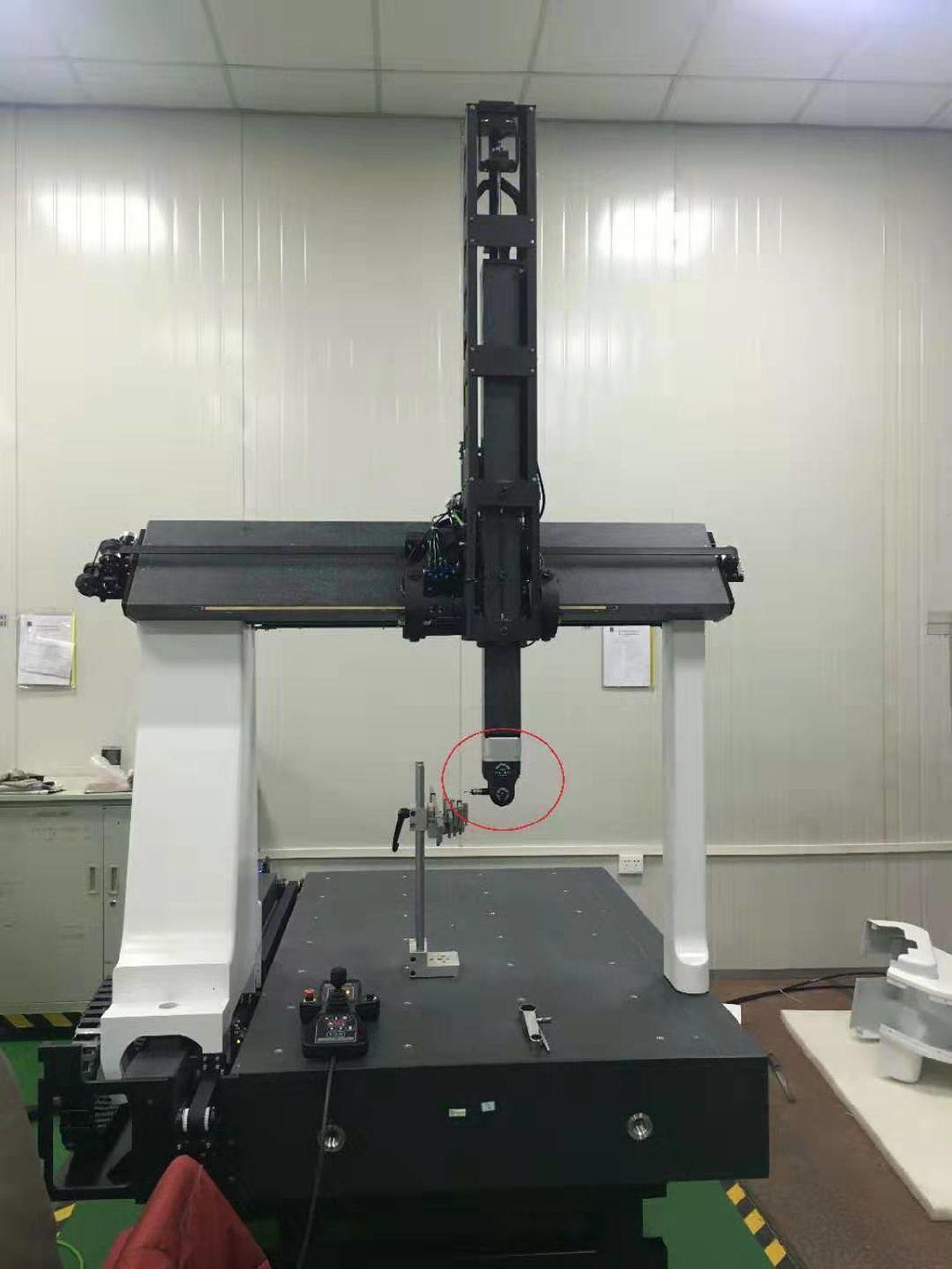

CNC Small Size Coordinate Measuring Machine (CMM-554C)

Leader Precision Instrument Co., Ltd.
  • Machine Name：Coordinate Measuring Machine CNC CMM
  • Type：CNC Type
  • Model：CMM-554c
  • Driving：System Servo Motor
  • Control System：Pante Series with Joystick
  • Probing System：Renishaw Mh20I or pH10t+Tp20

Base Info

  • Model NO.：CMM-554C
  • Measuring Software：Rational Dmis
  • Stucture：Sliding Bridge Type
  • Guide：Air Bearing
  • Accuracy：2.8+L,250
  • Transport Package：Pallet
  • Specification：ISO
  • Trademark：Leader
  • Origin：China
  • HS Code：9031802000
  • Production Capacity：20, 000

Description

ModelCMM-554CCMM-665CCMM-886CCMM-10108CCMM-574CCMM-685CCMM-8106CCMM-10128CCMM-584CCMM-6105CCMM-8126CCMM-10158CTravel (mm)X5006008001000Y500 700 800600 800 1000800 1000 12001000 1200 1500Z400500600800Driving SystemServo MotorControl SystemRENISHAW UCC Series with JoystickProbing SystemRENISHAW MH20I or PH10T+TP20Measuring SoftwareRationalDMISStructureSliding Bridge TypeGuideAir BearingAccuracy (µm)MPEE = ( 3.0 + L/250 )MPEE = ( 3.5 + L/200 )Resolution (µm)0.5Dimensions (m)1.21 x 1.3 x 2.331.31 x 1.4 x 2.531.66 x 1.9 x 2.851.85 x 2.1 x 3.251.21 x 1.5 x 2.331.31 x 1.6 x 2.531.66 x 2.1 x 2.851.85 x 2.3 x 3.251.21 x 1.6 x 2.331.31 x 1.8 x 2.531.66 x 2.3 x 2.851.85 x 2.6 x 3.25Weight (kg)98011002200260011201250246028801200140027203300Max.load (kg)400500600800Package Dimensions (m)   1.3x 1.6 x 21.4 x 1.7 x 2.41.9 x 2.3 x 2.42.4 x 2.45 x 2.41.3 x 1.8 x 21.4 x 1.9 x 2.41.9 x 2.5 x 2.42.4 x 2.65 x 2.41.3 x 1.9 x 21.4 x 2.1 x 2.41.9 x 2.7 x 2.42.4 x 2.95 x 2.4EnvironmentsPower Supply220 V ± 10%      50/60 HzAir Consumption120L/min    at  0.4 MPaAir Supply³ 0.5 MPaTemperature18 Cen. -  22Cen.Humidity CNC Small Size Coordinate Measuring Machine (CMM-554C)CNC Small Size Coordinate Measuring Machine (CMM-554C)CNC Small Size Coordinate Measuring Machine (CMM-554C)
Quality System

1. Establish the quality management system based on ISO9001, improve quality inspection, and ensure that all the finished products are qualified.

2. All our measuring machines are with CE certification

3. All our measuring machines are assembled and adjusted with linear accuracy, so that the instrument accuracy is guaranteed by hardware assembly and adjustment to the greatest extent.

4. Our professional technical service team is familiar with the principle, structure, assembly, and software debugging of the instrument, freeing customers from worries!

5. We has provided professional and complete measurement solutions for many large and medium-sized enterprises at home and abroad, and
has won the trust of customers!

After-sale Service

1. Free professional operation training

2. Warranty: 18 months instead of 12 months

3. Regularly upgrade of software is available free

4. Available lifetime technical support
