• Model NO.：DOG-208FA
• HS Code：9027809900
• Production Capacity：10000 Pics,Month

Basic Info.

Model NO. DOG-208FA HS Code 9027809900 Production Capacity 10000 Pics/Month

Product Description

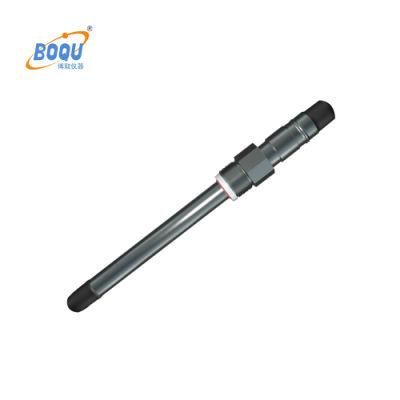

DOG-208FA High Temperature Dissolved Oxygen Electrode
DOG-208FA dissolved oxygen electrode, which is specially designed to be resistant to 130 degree Centigrade steam sterilization, the pressure auto-balance oxygen electrode, for liquids or gases dissolved oxygen measurement, the electrode is most suitable for small microbial culture reactor dissolved oxygen levels on line monitoring.

Can be used for environmental, wastewater treatment and aquaculture on line dissolved oxygen level monitorin.
 Features
DOG-208FA Industrial High Temperature fermentation Dissolved Oxygen Electrode,using polarographic oxygen electrode principle.With import breathable membrane heads.Steel gauze electrode membrane and silicone rubberEndure high temperature, deformation characteristics










1.	Technical indexes
2.	Electrode body material: stainless steel
3.	Permeable membrane: fluorine plastic, silicone, stainless steel wire mesh composite membrane.
4.	Cathode: platinum wire
5.	Anode: silver
6.	Electrodes built-in temperature sensor: PT1000
7.	The response current in the air: 60 Na Ampere.
8.	The response current in a nitrogen atmosphere: less than one percent response current of response in air.
9.	Electrode response time: about 60 seconds (up 95% response).
10.	Electrode Response Stability: a constant oxygen partial pressure at a constant temperature environment, response current drift is less than 3% per week.
11.	Liquid mixing flow to the electrode response: 3% or less (in water at room temperature).
12.	Electrode Response Temperature Coefficient: 3% (at room temperature).
13.	Electrode insertion diameter: 12 mm, 19 mm, 25 mm optional.
14.	Electrode insertion part length: 80,150,200,250,300 mm optional.
