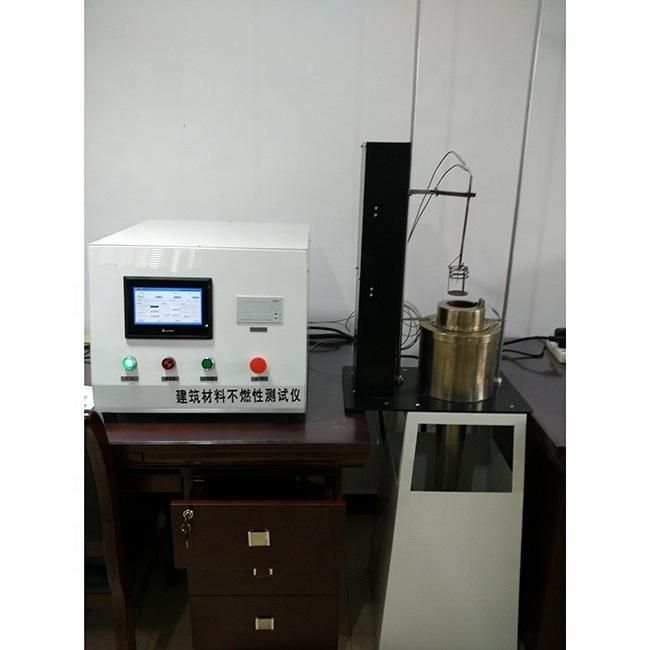

ISO1182 Non-Combustibility Test Apparatus for Building Material
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Usage：Test The Non Combustibility of Building Material
- Test Standard：ISO1182, BS 476-4 & 11
- Power Supply：AC 220V, 50,60Hz, 10A
- Weight：50kg
- Warranty：12 Month
- Transport Package：Standard Wooden Case and Carton
Base Info
- Model NO.：GDPX-07002
- Specification：ISO
- Trademark：Gold
- Origin：Chongqing, China
- HS Code：9031809090
- Production Capacity：300 Sets Per Month
Description
Basic Info.
Model NO. GDPX-07002 Specification ISO Trademark Gold Origin Chongqing, China HS Code 9031809090 Production Capacity 300 Sets Per MonthProduct Description
ISO1182 Non-Combustibility Apparatus for Building MaterialIntroduction:
Incombustible material refers to the material which is heated by fire even if it is red or fused when a fire occurs.Building materials noncombustible tester is the new edition of gb8624-2012 building materials fire classification standards required mandatory testing items; The non-combustibility testing furnace fully meets the international standards of GB/T 5464 and ISO 1182.The furnace temperature can reach the temperature balance quickly and enter the test program.The temperature curve can be freely printed.
Application:
Determine the non-combustibility of homogenous and non-homogenous building material in the furnace at the temperature of 750.
Features:
1. Abrasive molding heat resistant furnace for long life.
2. Heating element of Nickel Chrome for a high temperature of 900 ºC.
3. Heat resistant processing for safety.
4. 2 thermocouples for the center and surface of the specimen.
5. PC+Labview software control.
6. Viewing the mirror on the top for monitoring the flame performance is optional.
7. The temperature of inside furnace calibration is optional.
8. temperature error ±0.5ºC.
9. lifelong warranty of after-sale service.
Standards:
ISO 1182: Reaction to fire test for building material---Non-combustibility test.
BS 476-4: Fire Tests on Building Materials and Structures.. Part 4: Non-combustibility Test for Materials.
BS 476-11: Fire tests on building materials and structures - Part 11: Method for assessing the heat emission from building materials.
ASTM E 136
Specification:
| Model | GDPX-07002 |
| Dimension | 400(W)×400(D)×1400(H)mm heating furnace 430(W)×450(D)×300(H)mm control chamber |
| Power | AC 220V, 50/60Hz, 10A |
| Weight | 50kg |
Pictures:
