• Model NO.：BS-BCA2
• Transport Package：Standard Export Package
• Specification：CE, ISO etc
• Trademark：Lumsail
• Origin：China
• Production Capacity：100PCS, Month

Basic Info.

Model NO. BS-BCA2 Transport Package Standard Export Package Specification CE, ISO etc Trademark Lumsail Origin China Production Capacity 100PCS/ Month

Product Description

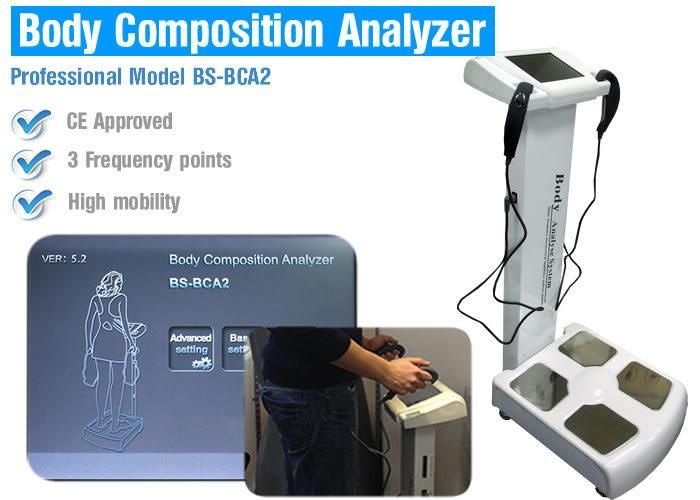

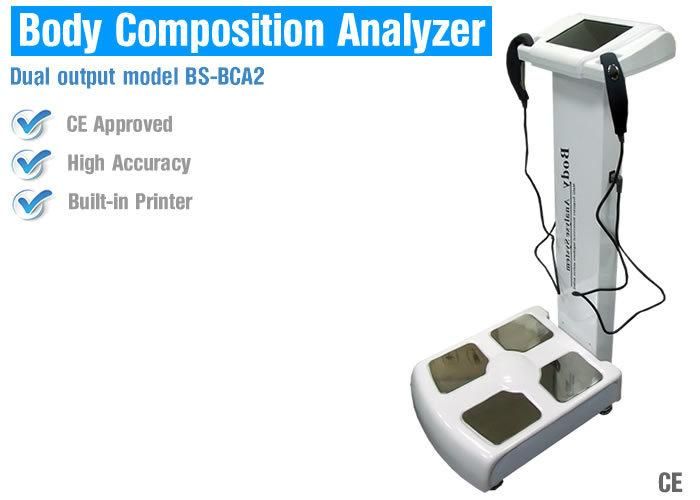

Electronic auto human body composition analyzer
Model no.BCA-2



Introduction:

Body Composition Analyzer is designed to calculate regional body composition, empowering healthcare professionals to better determine health risk associated with visceral and abdominal fat. The BS-BCA2 model is based on the latest statistics method DXA, which analyzes human body composition including fat, weight, BMI (Body Mass Index), none-fat and other health indicators through multi-frequency bio-electrical impedance analysis method, also called MFBIA. It calculates by the built-in high performance computer, and gives out instruction upon the analysis result for testers' reference as plans to lose weight.



Current has different penetration force depending on frequency. Since low frequency cannot penetrate cells and flow on the external surface's water, it measures only water content outside cells, while higher frequency means that you can measure even the water content inside cells since it penetrates inside cells, that is, by using diverse frequency, the BS-BCA2 model can accurately measure water contents inside and outside cells separately. When a body touches an electrode, contact resistance occurs, and it is important to control the contact resistance in order to correctly measure the resistance in a body.



Applications:
Segmented body composition analysis
Detect BMI, and other healthy data
Emit healthy report and weigth control plan



Features:

- 3 frequencies and 8 points, 6 channels testing

- Huge healthy samples based on scientific research result

- Export Impedance of Each Segments & Frequencies

- Big scale colorful touch screen control panel

- Generate health report and print out through built-in thermal printer or external ink jet printer

- The analysis process is simple, fast and safe



Analysis Report	Multi-frequency bioelectrical impedance analysis
Electrode	8-Point Tactile Electrode System
Calculation method	No Empirical Estimation
Segmented item	Right arm, left arm, body, right leg, left leg
Weight	28Kg
Control Panel	Colorful Touch Screen
Interface	USB2.0, RJ45
Power Specification	AC220V/50Hz or AC110V/60Hz
