• Model NO.：HZSM-701
• Gas：Sf6
• Type：Sf6 Gas Analyzer
• Name：Cheap Price Sf6 Gas Water Content Moisture Dew Poi
• Measurement Range：Dew Point: -80~+20ºC
• Precision of Dew Point：±0.5ºC
• Resolution Ratio：Dew Point 0.1ºC or 0.1ppm
• Repeatability：±0.5ºC
• Precision and Repeatability：±0.5%,Have Nothing to Do with The Flow
• Gas Measurement Range：H2s:1 ~ 200ppm
• Work Voltage：220VAC±10% 50Hz
• Pressure：0~20bar
• Output Interface：USB1.1 Specification
• Transport Package：Wooden Box with Foam Inside

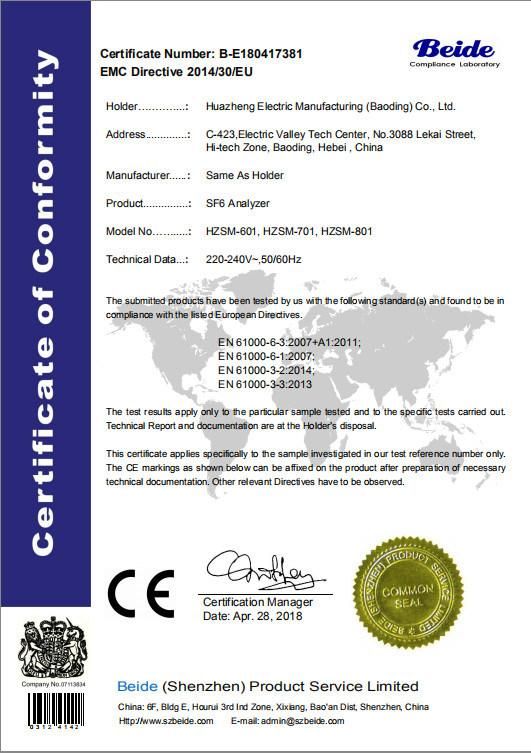

• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：China
• HS Code：9031809090
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. HZSM-701 Gas Sf6 Type Sf6 Gas Analyzer Name Cheap Price Sf6 Gas Water Content Moisture Dew Poi Measurement Range Dew Point: -80~+20ºC Precision of Dew Point ±0.5ºC Resolution Ratio Dew Point 0.1ºC or 0.1ppm Repeatability ±0.5ºC Precision and Repeatability ±0.5%,Have Nothing to Do with The Flow Gas Measurement Range H2s:1 ~ 200ppm Work Voltage 220VAC±10% 50Hz Pressure 0~20bar Output Interface USB1.1 Specification Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin China HS Code 9031809090 Production Capacity 100 PCS/Month

Product Description

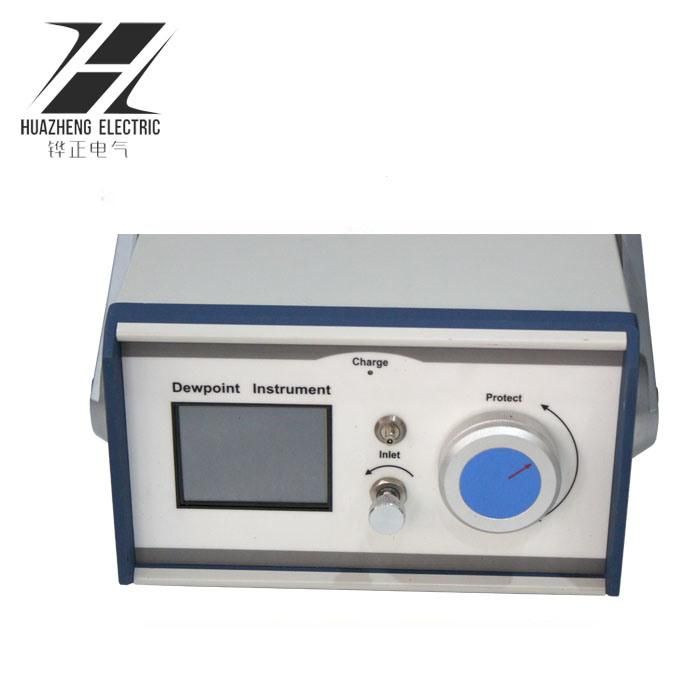

 Intelligent Accurate Portable Sf6 Gas Moisture Meter Dew Point Tester

I.Description
HZSF-701 SF6 Gas Dew Point Tester is advanced ,intelligent. It is advanced in principle, degree of automation, convenience, especially it adopts Europe Standard technique, to ensure the data to be accurate and steady. This equipment with large measurement range, fast response, short test time, clearly display, easy to operate.


II.The main functions and features
1,Portable design: the instrument lighter, carry, easy to use.
2,Measuring fast: no need to wait after the instrument boot-strap, instantly measure, quickly get humidity value.
3,Saves gas quickly. Gas consumption when measured only 2L (101.2kPa) around.
4,Self-locking connector: use the German original installation import self-locking joint, safe and reliable, and no leakage.
5,Data storage: use the large capacity design , can store up to 50 groups of test data.
6,Clear display: LCD display directly to the dew point, moisture (ppm), ambient temperature, humidity, time and date, battery power, etc.
7,RS232 interface: can be connected with a serial printer, print the data.
8,Built-in power supply: built-in 4 ah rechargeable lithium battery, a sufficient continuous work for 10 hours.



III.The main technical indicators:
1,The dew point:
Measuring range -60 degree Celsius to +20 degree Celsius
Measurement accuracy :±2 degree Celsius
Measuring time: (+20 degree Celsius) <3 minutes.
2,Environment temperature: - 40 degree Celsius to +60 degree Celsius
3,Environment humidity: 0 to 100% RH,
4,Power AC 220V
  Built in rechargeable battery
5,Battery Performance:charging time 20 hours or more, can be used for 10 hours
6,Weight: 3 kg,
7,Size: 250 * 100 * 300 mm3
8,Working temperature: - 40 Celsius to +80 Celsius

IV.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.



V.Customer Visit



VI.Exhibition

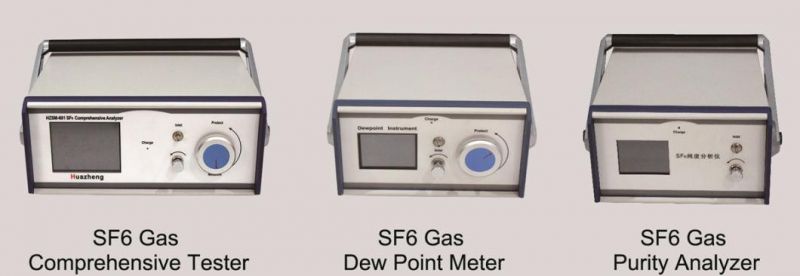

VII.Similar Recommendation
