• Model NO.：GD-4294 XFR Sulfur Analyzer
• Function：Storage
• Weight：0-100Kg
• Power Source：AC220V±22V
• Customized：Customized
• Standard：GB,T 17040, GB,T11140, ASTM D4294 Xfr Sulfur Analy
• Operation Method：Automatic
• Tester Display：8-Inch (1024*768) Touch Screen
• Measurement Range：0.0007%Ppm~5%
• Detection Limit：10ppm
• Oil Sample Quantity：2~3 Ml
• Repeatability (R)：Less Than 0.02894(S+0.1691)
• Reproducibility (R)：Less Than 0.1215(S+0.05555)
• Measurement Time：30s or 60s or 90s or 120s or 150s
• Calibration Curve Numbers：Can Save 10 Calibration Curves
• Working Temperature：5~35c
• Power Supply：220V, 50Hz, 30W
• Transport Package：Carton
• Trademark：GD-4294
• Origin：China
• HS Code：9031499090
• Production Capacity：100units

Basic Info.

Model NO. GD-4294 XFR Sulfur Analyzer Function Storage Weight 0-100Kg Power Source AC220V±22V Customized Customized Standard GB/T 17040, GB/T11140, ASTM D4294 Xfr Sulfur Analy Operation Method Automatic Tester Display 8-Inch (1024*768) Touch Screen Measurement Range 0.0007%Ppm~5% Detection Limit 10ppm Oil Sample Quantity 2~3 Ml Repeatability (R) Less Than 0.02894(S+0.1691) Reproducibility (R) Less Than 0.1215(S+0.05555) Measurement Time 30s or 60s or 90s or 120s or 150s Calibration Curve Numbers Can Save 10 Calibration Curves Working Temperature 5~35c Power Supply 220V, 50Hz, 30W Transport Package Carton Trademark GD-4294 Origin China HS Code 9031499090 Production Capacity 100units

Product Description

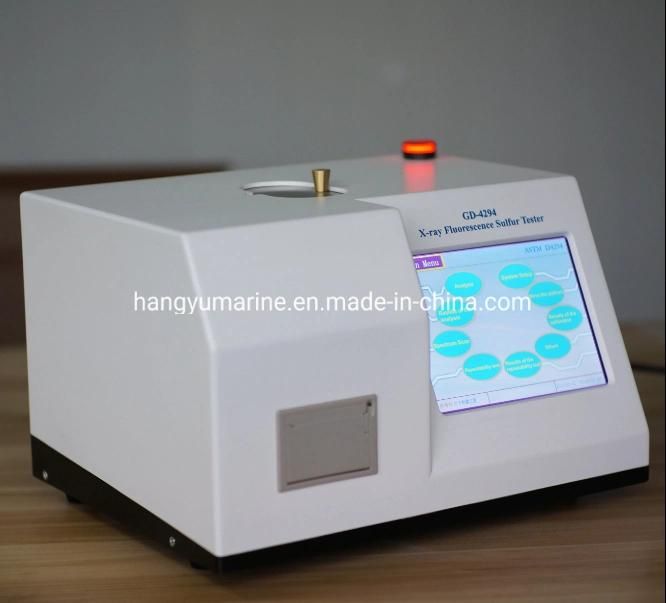

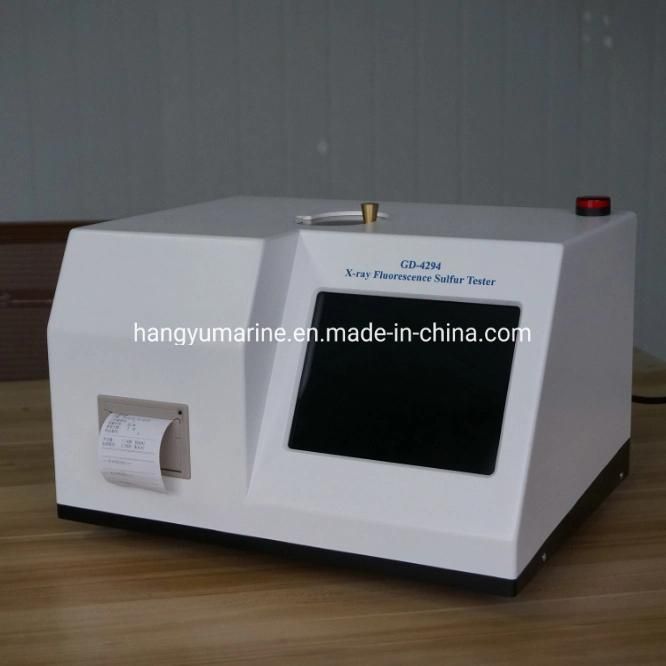

IMO2020 Automatic X-ray Fluorescence Sulfur Analyzer Sulfur in Oil Tester



Automatic X-ray Fluorescence Sulfur Analyzer Sulfur Tester is specially designed to determine sulfur content in the petroleum products. Adopts energy-dispersive principle, and with electrical, mechanical and microprocessor integration design, so it is rapid and accurate. It can meet the requirements of National Standard GB/T 17040 and GB/T11140 on repeatability and reproducibility, and it can also meet requirements of ASTM D4294-03 on these indexes. It provides a measure to determine sulfur content during petroleum or petrochemical production process.

Purpose
(1) It can be used to determine mass% of total sulfur in the crude petroleum, petroleum, heavy oil, diesel oil, gasoline, and naphtha.
(2) It can be used to determine total sulfur content in the products of coal chemical industry, such as primary benzene.
(3) It can be used to determine total sulfur or sulfide in other liquid or solid powder samples.


Instrument characteristics
(1) With electrical, mechanical and microprocessor integration design, so it is compact and beautiful;
(2) It can determine various products and in a wide measurement range. It is rapid for analysis and it only need little standard sample.
(3) Adopts fluorescence intensity ratio analysis methods, it can make correction to temperature and pressure automatically and it can also make correction to ratio of carbon and hydrogen (C/H).

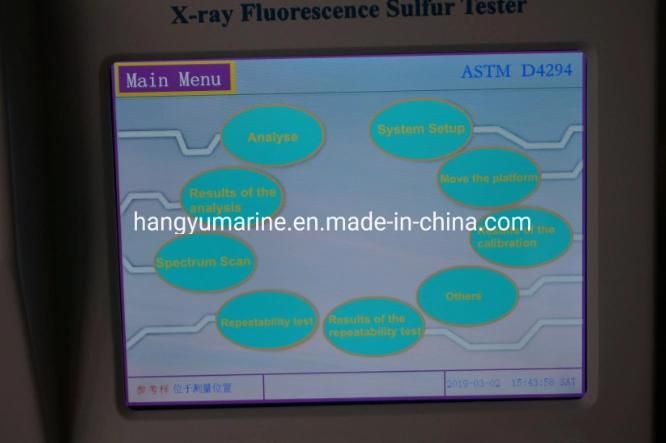

(4) 8-inch (1024*768) capacitive touch screen;
(5) It  can determine its working state and electric parameters by making repeatability test and spectrum scan using reference samples.
(6) Equipped with a RS232 serial port, it can connect with any computer .
(7) It takes disposable sample cell with Mylar film, so it can avoid cross contamination. Sample cell is made by a multifunction pressure shaping device, so it is rapid and convenient. There is a hole on the sample cell cover and you can record sample serial number, S% (m/m), and date on the sample cell cover.
(8) The sample holder is installed on a slide rail,It is convenient and it can avoid any contamination to detection system.
(9) It can save large quantity of test data. You can browse test data and calibration curves at any time.
(10) It uses a thermal printer, so it is easy to replace printing paper.
(11) Tightly protection measures to avoid oil leakage. The sample cell is placed on the leakage protection device. The sample cell can enter into the detection system together with the leakage protection device only during sample analysis procedures. If the instrument is not at sample analysis state, the leakage protection device will move out, so this can avoid any contamination to the detection system.
(12) Its safe X-ray protection measures can keep people from injury of X-ray radiation.

Main technical specification and parameters
(1) Measurement range: 50 ppm to 5%;
(2) Repeatability (r): <0.02894(S+0.1691);
(3) Reproducibility (R): <0.1215(S+0.05555);
(4) Detection limit: 10 ppm;
(5) Oil sample quantity: 3 ml (it is equal to sample depth of 3 mm~4 mm);
(6) Measurement time: it can be set to 30s or 60s or 90s or 120s or 150s ;
(7) It can make determination automatically for single sample. Replication times can set 1,2, 3, 5, 10 at random; it will show average value and standard deviation at end of measurement.
(8) Calibration curve numbers: it can save 10 calibration curves.
(9) Working condition:
a. Ambient temperature: 5~35ºC;
b. Relative humidity: <=85% (30 ºC);
(10) Power supply: AC 220V±20V, 50 Hz/60Hz; Rated power: 30 W;
(11) Size and weight: 460mm×260mm×260mm; 12 kg;

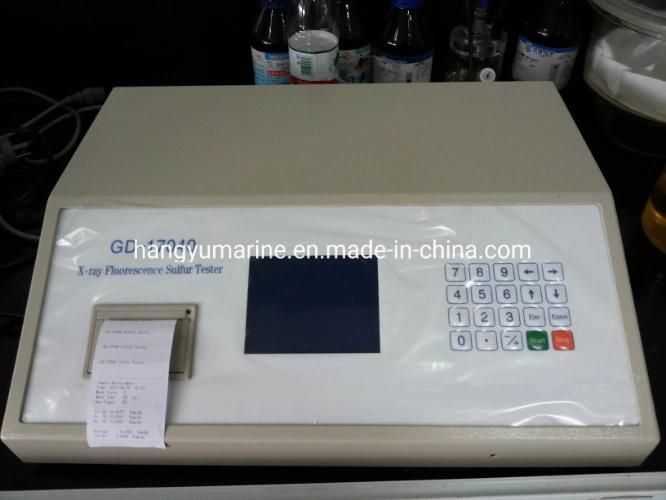

Digital type of X-ray Fluorescence Sulfur Tester  (GD-17040)



Welcome to contact us for more information if you are interested in Sulfur in Oil Tester.
