• Model NO.：BC72B
• Carbon Dioxide Measurement Scope：0-5000ppm
• Display Method：4.3" LCD Screen Display, 320X240 P
• Measurement Items：CO2, Temperature, Humidity
• Atmospheric Pressure：86kpa-106kpa
• CO2 Technology：Infrared (Ndir)
• Temperature and Humidity Technology：Temperature and Humidity Sensor
• Sampling Time：1.5 Seconds
• Detection Temperature：-10ºC to 50ºC , 14ºF to 122ºF
• Relative Humidity：20%-85%
• Battery：1 * Lithium Battery, 2000mAh (Included)
• Power Source：5V DC Power Charging Via Micro USB Plug
• Transport Package：Color Box
• Specification：145 * 97.2 * 78mm
• Origin：China
• Production Capacity：5000set,Month

Basic Info.

Model NO. BC72B Carbon Dioxide Measurement Scope 0-5000ppm Display Method 4.3" LCD Screen Display, 320X240 P Measurement Items CO2, Temperature, Humidity Atmospheric Pressure 86kpa-106kpa CO2 Technology Infrared (Ndir) Temperature and Humidity Technology Temperature and Humidity Sensor Sampling Time 1.5 Seconds Detection Temperature -10ºC to 50ºC / 14ºF to 122ºF Relative Humidity 20%-85% Battery 1 * Lithium Battery, 2000mAh (Included) Power Source 5V DC Power Charging Via Micro USB Plug Transport Package Color Box Specification 145 * 97.2 * 78mm Origin China Production Capacity 5000set/Month

Product Description

Air Quality Tester Carbon Dioxide Air Detector Greenhouse CO2 Monitor Tester






Packaging Details
Package size: 150 * 110 * 80mm / 5.9 * 4.3 * 3.1in
Package weight: 480g / 1.1lb

Packing List:
1 * Main Unit
1 * Charging Cable
1 * User Manual

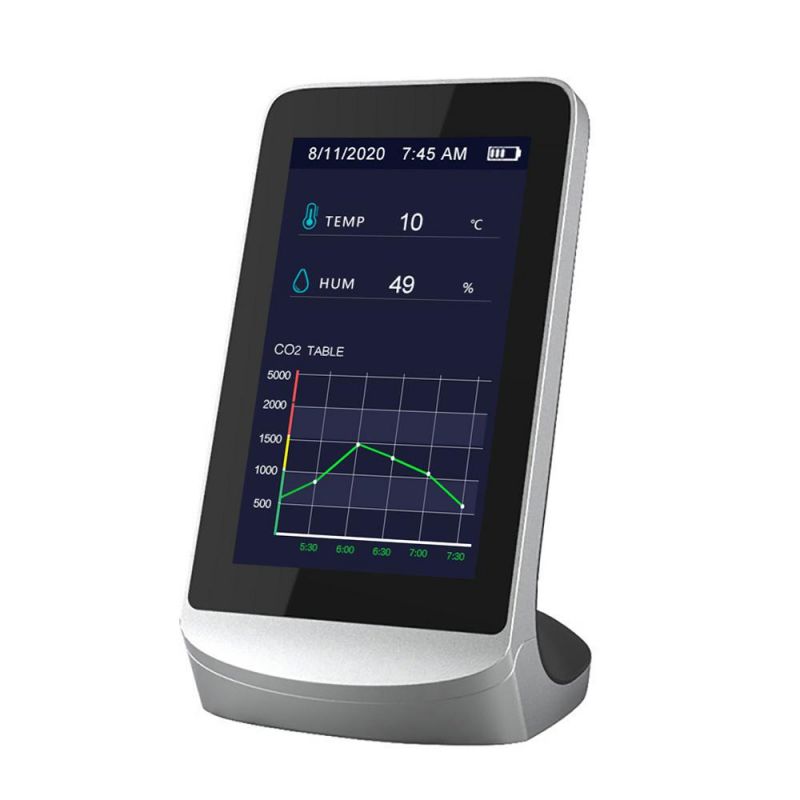

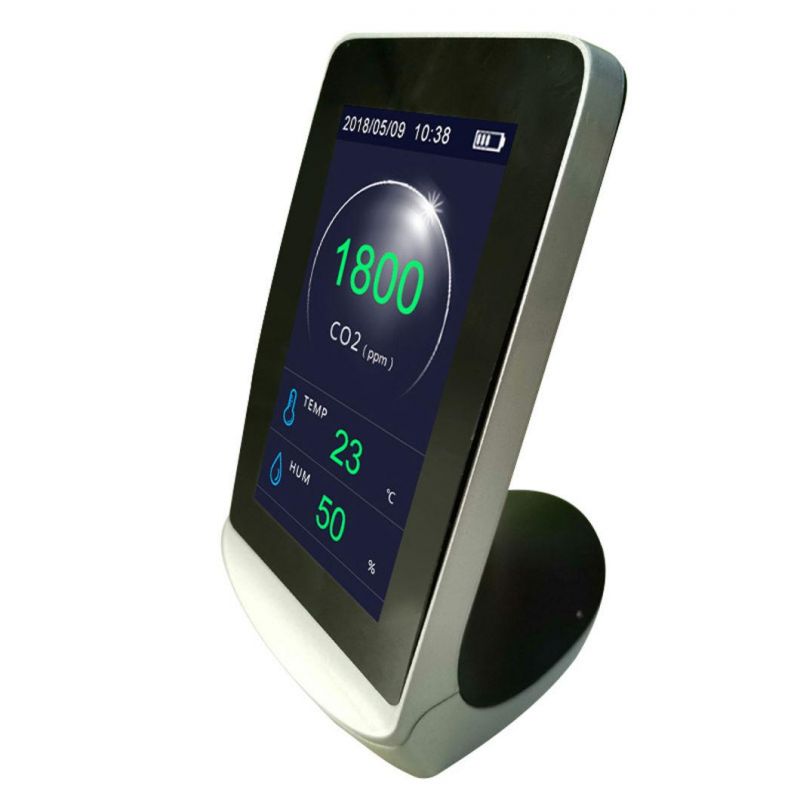

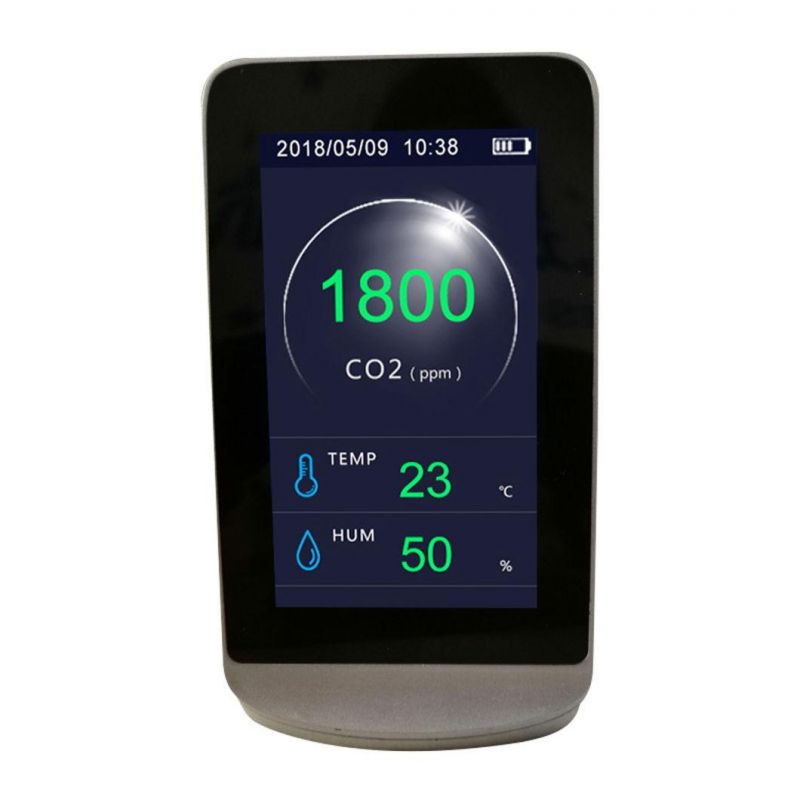

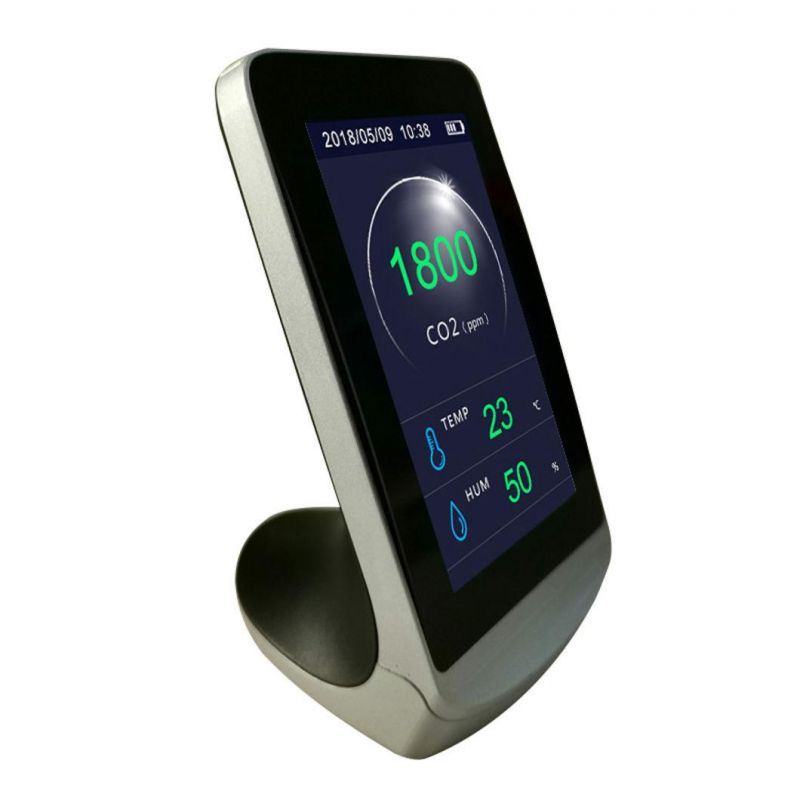

This product is a multifunctional air quality detector that detects CO2 (carbon dioxide), temperature, and humidity with a clock and record function. As a scientific air quality detection device, it combines an infrared (NDIR) sensor with a built-in fan to allow real-time monitoring of CO2 (carbon dioxide), temperature, and humidity on its digital LCD display.

Features:
4.3" color liquid crystal display (LCD), 320x240 pixels, 24 hours real-time monitoring.
Measurement items: CO2, temperature, humidity.
Large 2000mAh capacity lithium battery.
On-board fan to draw in ambient air for more accurate real-time results.
5V Micro USB charging and low battery warning.

Specifications:
Material: metal+ABS
Color: black
Display method: 4.3" LCD screen display, 320x240 pixels
Measurement items: CO2, temperature, humidity
Atmospheric pressure: 86Kpa-106Kpa
CO2 technology: infrared (NDIR)
Temperature and humidity technology: temperature and humidity sensor
Detection range:
CO2: 0-5000ppm
Sampling time: 1.5 seconds
Detection temperature: -10ºC to 50ºC / 14ºF to 122ºF
Relative humidity: 20%-85%
Storage temperature: -10ºC to 60ºC / 14ºF to 140ºF
Battery: 1 * lithium battery, 2000mAh (included)
Power source: 5V DC power charging via micro USB port
Item size: 145 * 97.2 * 78mm / 5.7 * 3.8 * 3.1in
Item weight: 225g / 7.9ounce
Package size: 150 * 110 * 80mm / 5.9 * 4.3 * 3.1in
Package weight: 480g / 1.1lb

1.Q:What test index are included for air quality monitor?
A:CO2: is for carbon dioxide,Infrared sensor(NDIR)Temperature and Humidity Suitable for detecting CO2 concentration in industrial,agricultural and residential environments. Control the ventilation system according to the monitored target value (CO2 concentration).

2.Q:Can it connect to wifi?
A: No, Details connection way, you can contact our sales.

3.Q:What is the standard range for CO2?

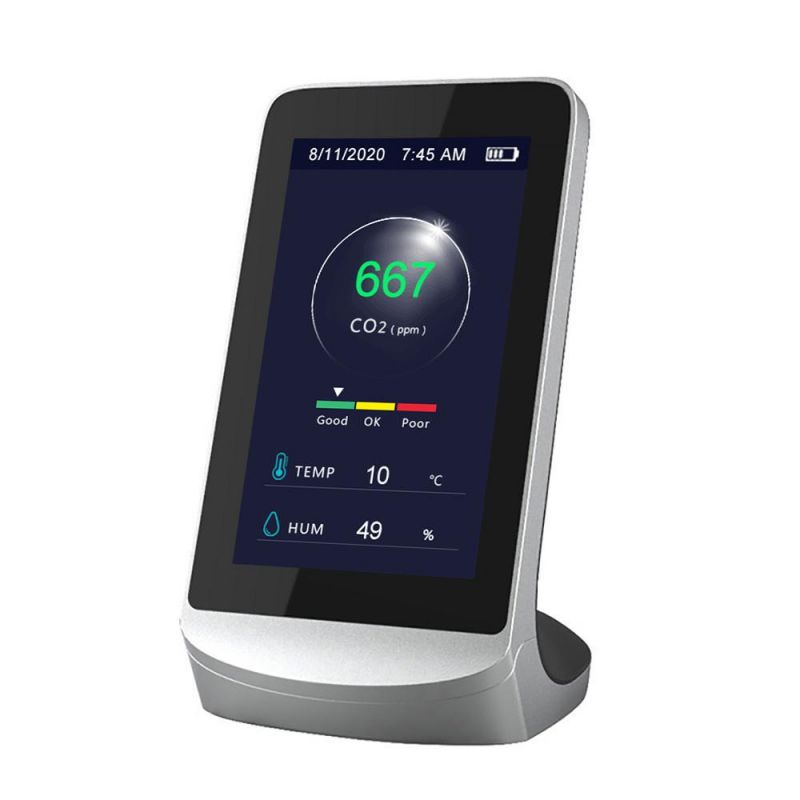

A:with traffic light to remind CO2 air quality as below;
Good 400~800PPM;OK 800~1200PPM;Bad 1200~5000PPM

4.Q:How to charge it?
A:By Type-C charging line. Regular just offer Type-C charging line. We also offer adapters(Like US adapter, Europe adapter...) if add extra cost.

5.Q:How about OEM or custom?
A:Sure, As professional and stable manufacture for CO2 meter factory, we can support many custom contents as below;
1.Printing logo, support printing logo on Lens or device.
2.Interface contents, support custom interface like language, colors....
3.Package, support custom package(We can send neutral artwork to the client to design package)
