• Model NO.：GDYJ-502
• Maximum Storage Capacity：100 Groups of Test Data
• Stir Time：0~999s
• Test Error：3% Max in The Range of 10kv~100kv
• Warranty：1 Year
• Transport Package：Wooden Case with Foam to Protect
• Specification：620 mm*430mm*330mm
• Trademark：GOLD
• Origin：Chongqing, China (Mainland)
• HS Code：9031809090
• Production Capacity：100 Set,Sets Per Month

1Output voltage: AC 0V~100KV2Rate of voltage rise: 0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%3Max test times setting for user-defined mode: 94Stir time setting for user-defined mode: 0~999s5Waiting time setting for user-defined mode: 0~999s6Test error: 3%RDG+0.3%FS7Display: 256*128 LCD8Maximum storage capacity: 100 groups of test data9Power supply : AC220V±10%, 50Hz/60Hz10Environment temperature: 0-50°C11Relative humidity ≤80%RH12Weight: 41kg13Size: 620*430*330 mm

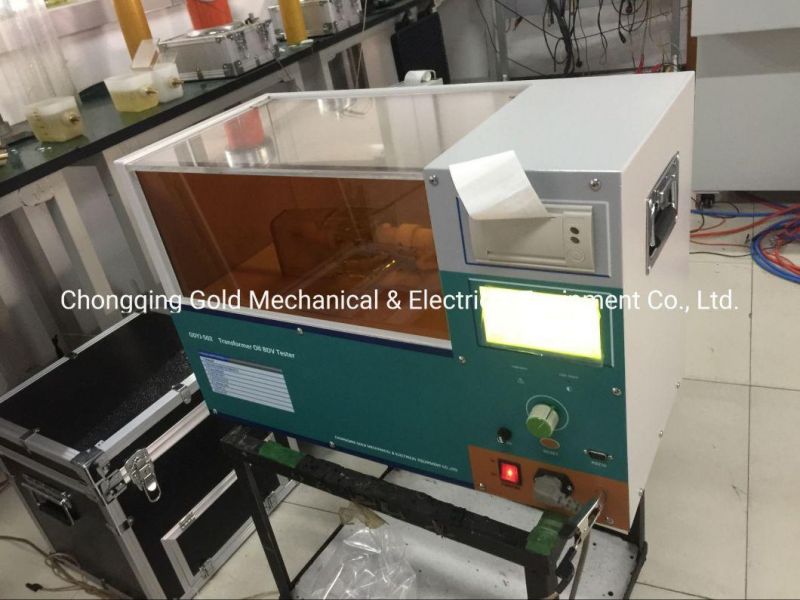

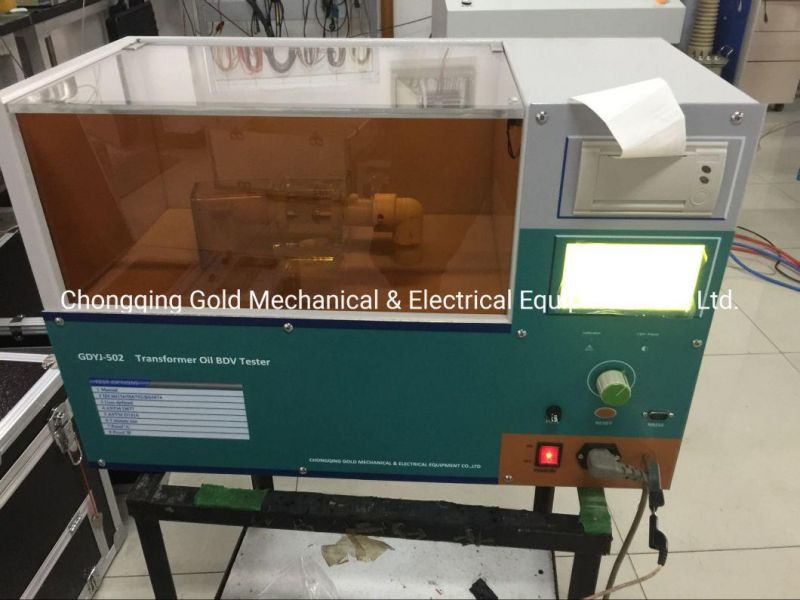

GDYJ Series Transformer Oil Breakdown Voltage Tester:


Model	GDYJ-501	GDYJ-502	GDYJ-503
Output Voltage	AC 0~80KV/0~100KV	AC 0~100KV	AC 0~80KV
Rate of Voltage Rise	2KV/s±10%	0.5/2/3/5 KV/s±5%	2KV/s±10%
Max. Time Setting	0~9mins	9mins	0~99 seconds
Test Precision	3% RGD+0.3%FS	3% RGD+0.3%FS	3% RGD+0.3%FS
Max. Data Storage	100 groups	100 groups	50 groups
Power Supply	AC220V±10% 50/60Hz	AC220V±10% 50/60Hz	AC220V±10% 50/60Hz
Environment Temp.	0~50Centigrade	0~50Centigrade	0~50Centigrade
Related Humidity	<80%RH	<80%RH	<80%RH
Dimension	420*380*410mm	620*430*330mm	420*380*410mm
Weight	28kg	41kg	28kg
