• Model NO.：LDF-602
• Function：Crude Fiber Analyzer
• Weight：0-100Kg
• Power Source：AC220V±22V
• Customized：Customized
• Product Name：Food Crude Raw Fiber Analyzer Manufacturer
• Testing Method：Acid-Base Digestion
• Application Object：Food, Feed, Grain
• Display Screen：7-Inch Ultra-Fine Color Screen, Touch Type
• Test Range：0 - 100%
• Batch Processing Time：3 Hours
• Analysis of Temperature Range：Room Temperature ~ 200 C
• Temperature Control Mode：Cooling Temperature Double System Control
• Temperature Control Accuracy：+,-0.5c
• Mixing Method：Pressure Mixing, No Interference,
• Standard Deviation of Results：<,=0.5%
• Recovery Rate：>,=99%
• Number of Samples：Test 1 to 6 Samples at a Time
• Heating Method：Mobile Semi-Circular Silicon Carbide Heater
• Power：220V , 50~60Hz
• Transport Package：Plywood Case Package
• Specification：40kgs
• Trademark：LABOAO
• Origin：China
• HS Code：903180909
• Production Capacity：3000

Basic Info.

Model NO. LDF-602 Function Crude Fiber Analyzer Weight 0-100Kg Power Source AC220V±22V Customized Customized Product Name Food Crude Raw Fiber Analyzer Manufacturer Testing Method Acid-Base Digestion Application Object Food, Feed, Grain Display Screen 7-Inch Ultra-Fine Color Screen, Touch Type Test Range 0 - 100% Batch Processing Time 3 Hours Analysis of Temperature Range Room Temperature ~ 200 C Temperature Control Mode Cooling Temperature Double System Control Temperature Control Accuracy +/-0.5c Mixing Method Pressure Mixing, No Interference, Standard Deviation of Results </=0.5% Recovery Rate >/=99% Number of Samples Test 1 to 6 Samples at a Time Heating Method Mobile Semi-Circular Silicon Carbide Heater Power 220V , 50~60Hz Transport Package Plywood Case Package Specification 40kgs Trademark LABOAO Origin China HS Code 903180909 Production Capacity 3000

Product Description

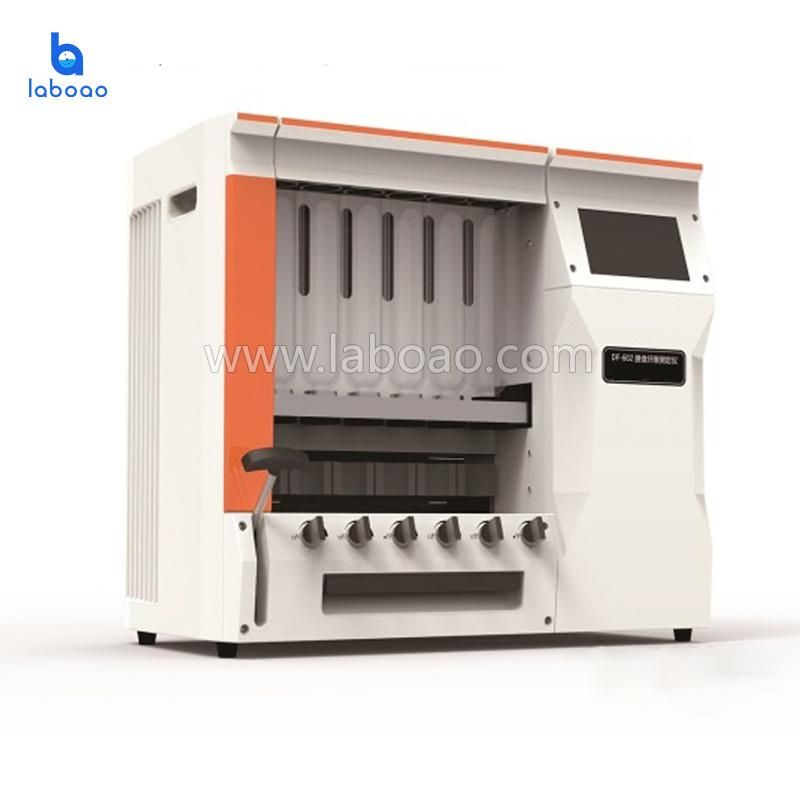

Food Analysis Automatic Lab Dietary Fiber Teser Laboratory Equipment

The LDF-602 is a newly developed perfect dietary fiber tester that focuses on solving the error caused by sample transfer and is therefore more accurate and reliable than the filter bag type. Sets enzymatic hydrolysis, stirring, heating, constant temperature, liquid addition, precipitation, and suction filtration, which is efficient, convenient, accurate, and safe. It shows the industry experience of Shanghai Fiber Inspection for 30 years. The company's equipment complies with GB/T5009.88-2014 and is committed to building world-class advanced technology and reliable quality. Make sure every instrument is your competent assistant.



  Feature

1. The whole process without transferring samples, to avoid operating errors

2. Set of enzymatic hydrolysis, stirring, heating, constant temperature, plus liquid, precipitation, pumping in one

3. Mobile semi-circular silicon carbide heater, heating fast and stable, safe operation

4. Special filter pump, fiber patented products, apply to all corrosive solvents

5. Pneumatic function to ensure thorough digestion of the sample

6. Directly control the temperature of the enzymatic hydrolysis of the liquid, the enzymatic effect to achieve the best condition

7. 7-inch ultra-fine color screen, touch screen control, the interface avant-garde fashion is simple and simple

8. Heater detection in place

Core Technology:

1. Special filter pump:Fiber patented products, 30 years of industry experience developed a unique formula raw materials. Applicable to all corrosive solvents, the use of a wider range, fully reflects the fiber inspection technology and strength;

2. Integrated ant- misoperation interface design:Completely avoid the wrong button caused by the misuse, reflecting the ultimate concept of human nature;

3. Special condensing tube:Integrated condensation and liquid integration, flexible and convenient operation;

4. Pneumatic function:Without the need for agitator immersed in the sample, eliminating the sample sticking to the stirrer is difficult to clean the error caused, but also to avoid the risk of rocking stirring;

5. Rise and fall timing dual system:Designed for dietary fiber design tailored temperature control;Breaking the conventional only temperature control timing mode, to avoid the cooling temperature control time error;

Specification

Display	7-inch ultra-fine color screen, touch type
Test range	0 - 100%
batch processing time	3 hours
Analysis of temperature range	room temperature ~ 200 °C
temperature control mode	cooling temperature double system control
Temperature control accuracy	±0.5°C
Mixing method	pressure mixing, no interference, no mutual contamination
Standard deviation of results	≤ 0.5%
Recovery rate	≥99%
Environmental protection	No need for constant temperature water bath and filter bottle, no peculiar smell drift, ordinary standard laboratory can
Anti-error performance	no sample transfer, all enzymatic and washing filtration, directly on the instrument;
Number of samples	Test 1 to 6 samples at a time
Heating method	mobile semi-circular silicon carbide heater
Power source	220V±10%, 50~60HZ
Rated power	2000W
Dimension	700×400×600 (mm)
Weight	40 kg
