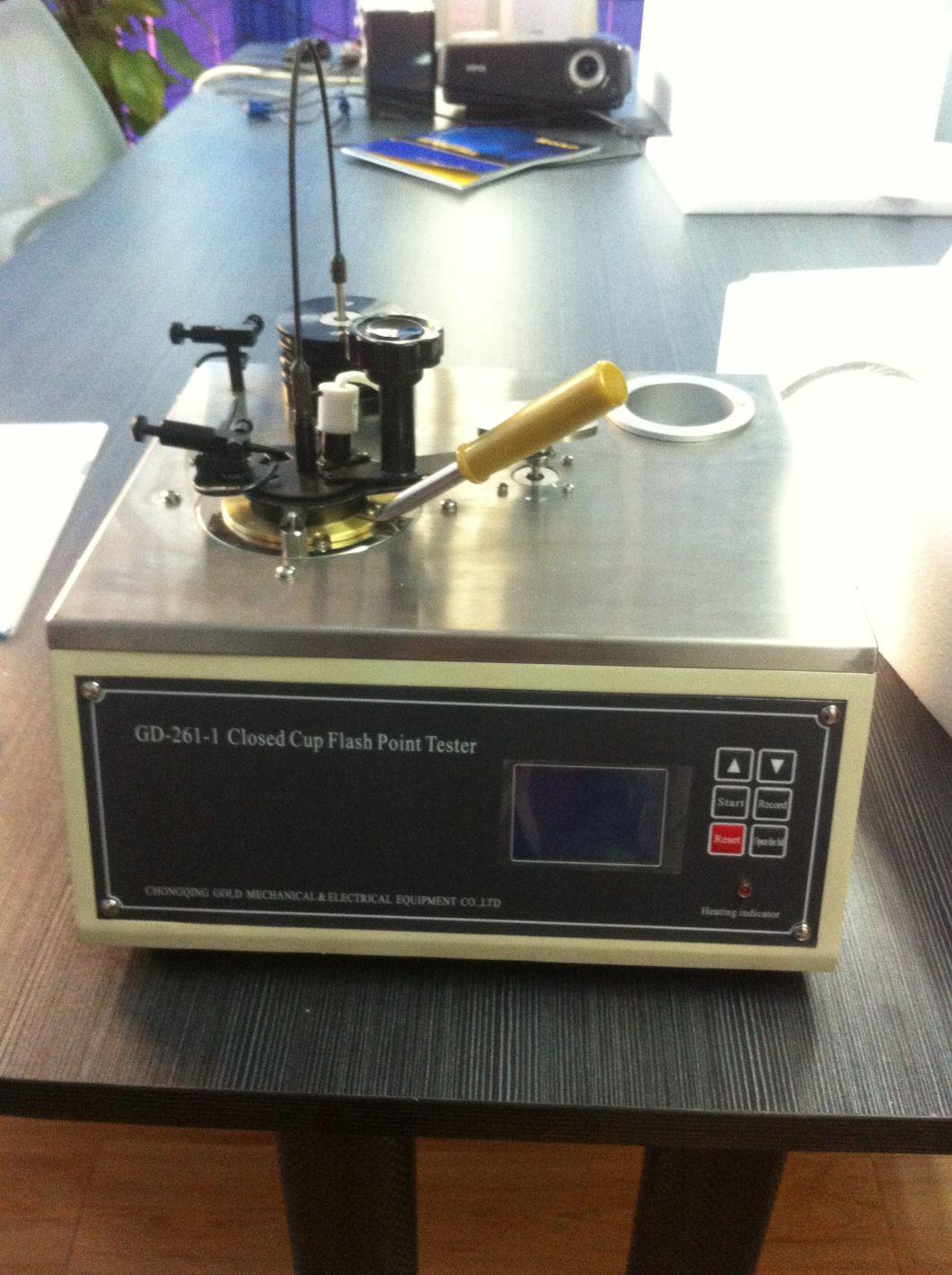

Manual Flash Point Laboratory Tester for Petroleum Products (GD-261-1)

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Power：Electronic
  • Measurement Range：Room Temperature~250c
  • Packing Size：69*38*35cm
  • Gross Weight：10kg
  • Warranty Period：1 Year
  • Features：Semi-Auto, High Cost-Effective Performance

Base Info

  • Model NO.：GD-261-1
  • Applicable Standards：ASTM D93, ISO2719
  • Test Method：Pensky Martens Closed Cup
  • Flash Point Tester Type：Semi-Auto
  • Transport Package：Veneer Case
  • Specification：ASTM D93, ISO2719
  • Trademark：GOLD
  • Origin：Chongqing, China (Mainland)
  • HS Code：9031809090
  • Production Capacity：100 Set,Sets Per Month

Description

Power supplyAC( 220±10% )V, 50Hz.Heating device(1) The furnace is silicon carbide material. Power is 600W
(2) The heating power is adjustable from 0 W to 600WHeating rateProcedure A: (5~6)ºC/min, Procedure B:(1~1.5)ºC/min.Stirring device(1)Stirring motor: BYGH101 stepping motor
(2) Driving mode: flexible shaft
(3) Shaft size: 8mm×40mm Stirring rateProcedure A: (90~120)RPM, Procedure B: (250±10)RPMIgniting device(1) Igniting source: gas(or other civilian fuels,the same below)
(2) Electric ignition. Gas flame diameter:3.2mm~4.8mmTemperature testing probeRTD, PT100Ambient temperature≤ 35ºCRelative humidity≤ 85%Maximum power consumption650W
