Industrial Online Acid/Alkali/Salt Concentration Analyser/Controller/Monitoring
Shanghai Chunye Instrument Technology Co., Ltd.- Portable:Non Portable, Non Portable
- Appliance:Food Analysis, Medical Research, Biochemistry, Food Analysis, Medical Research, Biochemistry
Base Info
- Model NO.:T6038
- Certification:ISO9001, RoHS, CE, ISO9001, RoHS, CE
- Type:Concentration Analyzer
- Basic error:+,- 1% F.S
- Resolution:Concentration:0.01%
- Stability:+,- 0.25%,24h
- Communication output:RS485 MODBUS RTU
- Transport Package:Carton Box
- Specification:144x144x118mm
- Trademark:twinno
- Origin:Shanghai, China
- HS Code:9027
- Production Capacity:2000PC,Month
Description
Basic Info.
Model NO. T6038 Certification ISO9001, RoHS, CE, ISO9001, RoHS, CE Type Concentration Analyzer Basic error +/- 1% F.S Resolution Concentration:0.01% Stability +/- 0.25%/24h Communication output RS485 MODBUS RTU Transport Package Carton Box Specification 144x144x118mm Trademark twinno Origin Shanghai, China HS Code 9027 Production Capacity 2000PC/MonthProduct Description

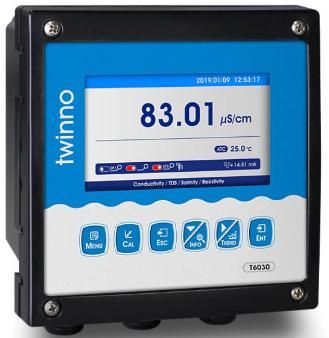

T6038 Electrode-free Industrial Conductivity Meter
(acid/alkali/salt concentration meter)
Industrial on-line water quality monitoring and control instrument with microprocessor. The instrument is widely used in thermal power, chemical industry, steel pickling and other industries, such as regeneration of ion exchange resin in power plant, chemical industry process, etc., to continuously detect and control the concentration of chemical acid or alkali in aqueous solution.
Features:
Color LCD Display.
Intelligent menu operation.
Data Recording & Curve Display.
Manual or automatic temperature compensation.
Three sets of relay control switches.
High & low alarm, and hysteresis control.
4-20mA&RS485Multiple output modes.
Display measurements, temperature, state, etc. on the same interface.
Password protection function to prevent misoperation by non-staff.
Technical parameters:
(1)Measuring range:
Conductivity:0~2000mS/cm;
TDS:0~1000g/L;
Concentration: Please see the built-in chemical concentration table.
Temperature:-10~150.0ºC;
(2)Resolution:
Conductivity:0.01μS/cm;0.01mS/cm;
TDS:0.01mg/L;0.01g/L
Concentration: 0.01%;
Temperature:0.1ºC;
(3)Basic error:±0.5%F.S;
Temperature:±0.3ºC;
Concentration:±0.2%
(4)Stability:±0.2%F.S/24h;
(5)Two current output:
0/4~20mA(load resistance<750Ω);
20~4mA(load resistance<750Ω);
(6)Signal output:RS485 MODBUS RTU;
(7) Three sets of relay control contacts:
5A 250VAC,5A 30VDC;
(8)Power supply:
85~265VAC±10%,
50±1Hz,power ≤3W;
9~36VDC,power consumption≤3W;
(9)Dimensions:144x144x118mm;
(10)Installation:
Panel,wall mounting and pipeline ;
Panel opening size:138x138mm;
(11)Protection level:IP65;
(12)Weight:0.8kg;
(13)Working environment:
Operating temperature:-10~60ºC;
Relative humidity: ≤90%;
No strong magnetic field interference except the geomagnetic field.
Solutions | Concentration | TemperatureRange | Solutions | Concentration | Temperature Range |
NAOH | 0-16% | 0-100ºC | H2SO4 | 40-80% | 0-115ºC |
CaCl2 | 0-22% | 15-55ºC | H2SO4 | 93-99% | 0-115ºC |
HNO3 | 0-28% | 0-50ºC | NACL | 0-10% | 0-100ºC |
HNO3 | 36-96% | 0-50ºC | HCL | 0-18% | 0-65ºC |
H2SO4 | 0-30% | 0-115ºC | HCL | 22-36% | 0-65ºC |
After Sales Service
* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
FAQ
What is the mini order quantity?
MOQ: generally 1 unit/piece/set
What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.
What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation
How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.
How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.
How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.
Delicery:

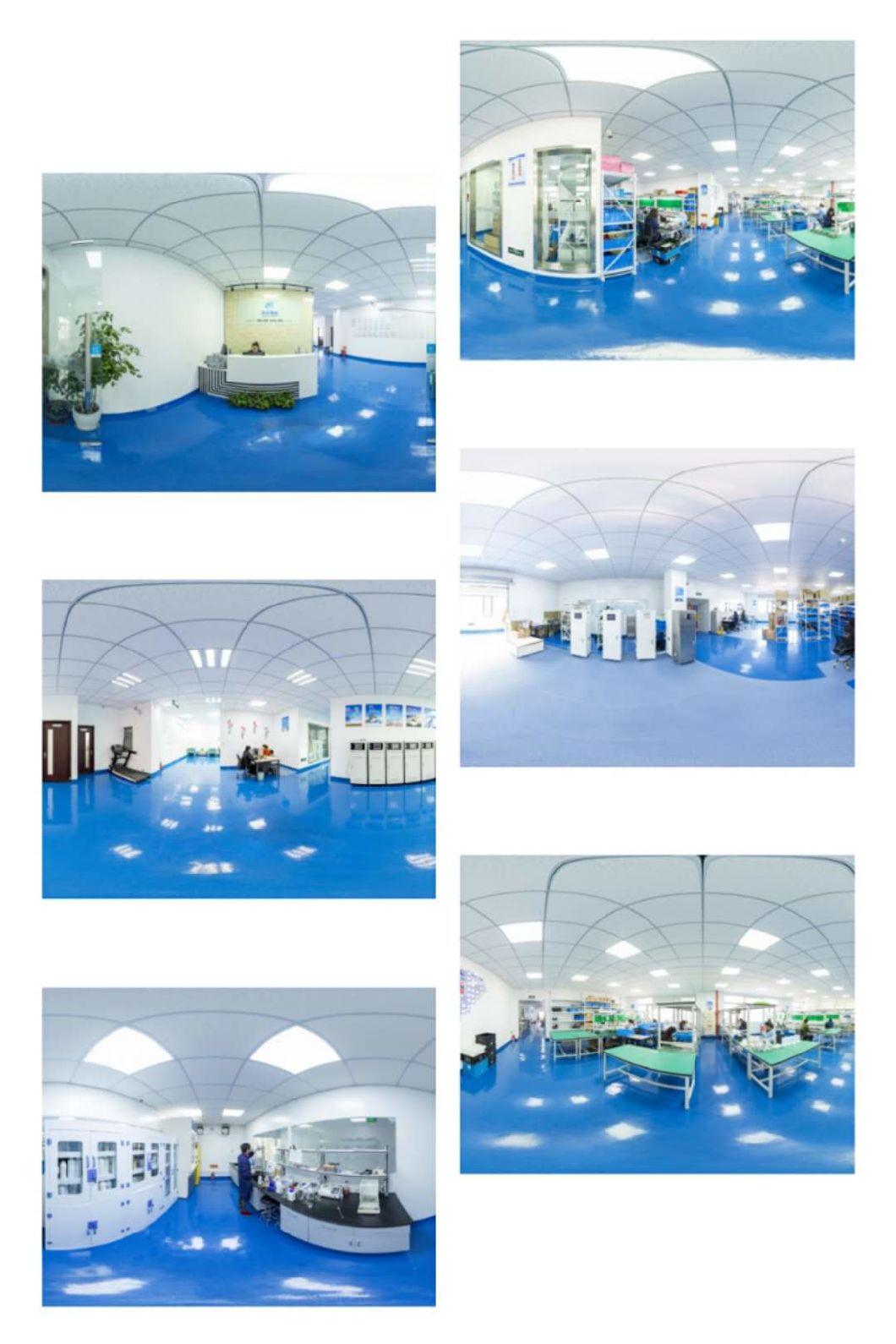

Our company:
