• Model NO.：TA800
• Application：Agriculture & Food
• Operating Mode：Keyboard
• Off Mode：Automatic
• Chemical Analysis Type：electrochemistry
• Measurement range：0-15000mg,L
• Lower limit：0.05mg,L
• Detection time：30 samples, minute
• Indication error：within 5% or +,- 0.1mg,L
• Display mode：4.3-inch color LCD
• Transport Package：Wooden Case
• Specification：300mmx230mmx115mm
• Trademark：twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. TA800 Application Agriculture & Food Operating Mode Keyboard Off Mode Automatic Chemical Analysis Type electrochemistry Measurement range 0-15000mg/L Lower limit 0.05mg/L Detection time 30 samples/ minute Indication error within 5% or +/- 0.1mg/L Display mode 4.3-inch color LCD Transport Package Wooden Case Specification 300mmx230mmx115mm Trademark twinno Origin Shanghai, China HS Code 9027 Production Capacity 500 Sets/Month

Product Description

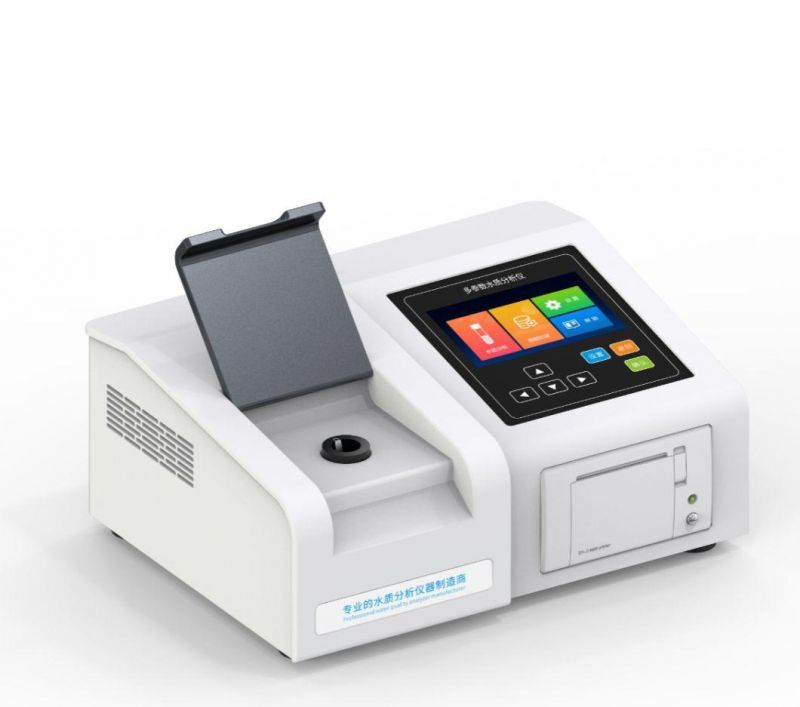

TA800 Ammonia Nitrogen Analyzer

Overview

TA800 Ammonia Nitrogen Analyzer adopts Nessler Reagent Spectrophotometry to select the water quality detection item. The imported solid-state cold light source emits the light source signal to the sensor,processed by RAM processor. The sample concentration value is directly fed back and displayed in mg/L.

Principle
Principle of ammonia nitrogen determination (Nessler's reagent method): Ammonia nitrogen in the form of free ammonia or ammonium ion reacts with Nessler's reagent to form a reddish brown complex. The content of ammonia nitrogen in water sample is determined according to the ratio of the absorbance of the complex to the content of ammonia nitrogen.

Features

1. The determination of ammonia nitrogen is in accordance with national standards HJ535-2009, and the data is accurate and effective.
2. Imported solid-state cold light source, stable optical performance, no need light source preheating, light source life up to 10 years.
3. With Glos water quality intelligent detection system, it can be used for guided detection and batch detection of contaminated samples.
4. Digestion and colorimetric integration, no need to replace the colorimetric dish detection, the determination method is simple and effective.
5. 4.3-inch color LCD display,flat UI design, convenient for users to operate the instrument.
6. ABS material, high strength, corrosion resistance, temperature resistant shell.
7. Auto-printing concentration value or manual printing mode is selected after testcomplete.
8. Equipped with prefabricated reagents, only need to add water sample in the test tube and then be digested for detection.

Technical parameters


Model No.	TA800
Test parameter	Ammonia Nitrogen Analyzer
Measurement standard	HJ535-2009 ,Nessler Reagent Spectrophotometry
Measurement range	0-100mg/L
Lower limit	0.05mg/L
Digestion temperature	No digestion
Detection time	30 samples/ minute
Indication error	≤5% or ±0.1mg/L
Power supply	AC(220V±5%),50Hz
Operating environment	5-40ºC,≤85%, non condensing
Dimensions	300mm×230mm×115mm
Weight	2.8kg
Display mode	4.3-inch color LCD
Colorimetric method	Colorimetric tube (digestion colorimetric integration)
Other functions	Can be connected to a computer

Complete set


Product	Quantity
Ammonia Nitrogen Analyzer	1
Ammonia nitrogen reagent	1
Pipette	1
Test tube rack	1
Digestion colorimetric tube	18
Dilution bottle	4
Gloves	2
Flannel	1
User instructions	1

After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.


FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.

How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.
