• Model NO.：TP800
• Application：Agriculture & Food
• Operating Mode：Keyboard
• Off Mode：Automatic
• Chemical Analysis Type：electrochemistry
• Model No.：TP800
• Measurement：GB11893-89 Ammonium Molybdate
• Measurement Range：0-20mg,L
• Detection Time：25 samples,minutes
• Weight：2.8KG
• Transport Package：Standard Packing
• Specification：300mmx230mmx115mm
• Trademark：Twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. TP800 Application Agriculture & Food Operating Mode Keyboard Off Mode Automatic Chemical Analysis Type electrochemistry Model No. TP800 Measurement GB11893-89 Ammonium Molybdate Measurement Range 0-20mg/L Detection Time 25 samples/minutes Weight 2.8KG Transport Package Standard Packing Specification 300mmx230mmx115mm Trademark Twinno Origin Shanghai, China HS Code 9027 Production Capacity 1000PCS/Month

Product Description

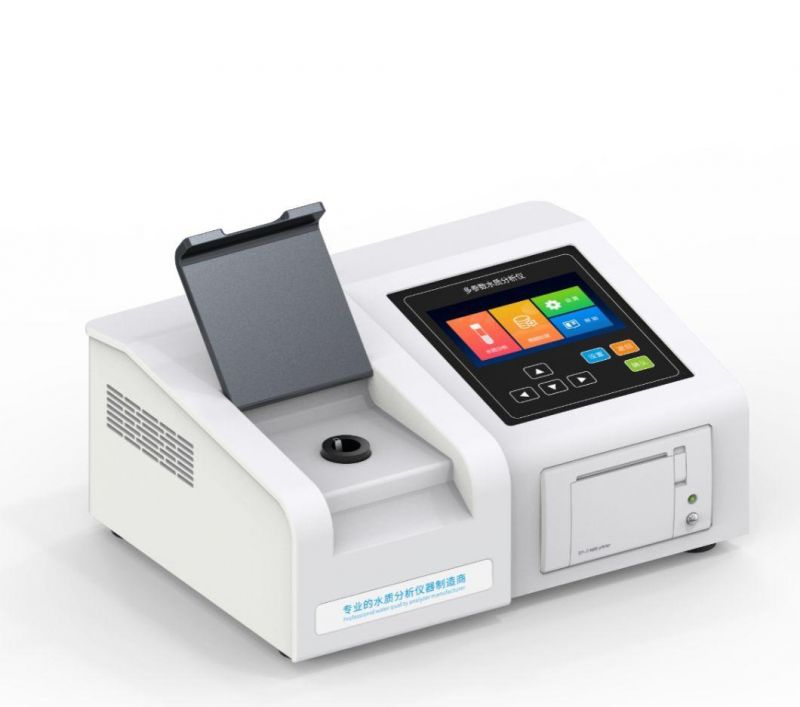

TP800 Total Phosphorus Testing Analyzer

Overview

TP800 Total phosphorus testing analyzer uses ammonium molybdate spectrophotometry method. Advanced solid-state cold light source, narrow bandpass technology and microcomputer dynamic processing data, directly display and print out the concentration sample.
The analyzer equipped with water quality intelligent detection program, guided detection mode, and reduced the learning cost, let the user able to operate easily.  The user may analyze the concentration of total phosphorus according to the National Environment GB11893-89.

Principle

Principle of total phosphorus (ammonium molybdate method): After sample digested, the phosphorus will oxide to orthophosphate. The orthophosphate reacts with ammonium molybdate in an acidic environment to form phosphomolybdic heteropoly acid, with antimony as a catalyst. This is then reduced in reaction with ascorbic acid to produce a molybdenum blue complex. The total phosphorus from the water samples is determined by the absorbance of the complex.

Product Features

1. Analyze the total phosphorus with accuracy and effectively based on the national environmental standard GB11893-89.
2. Imported solid-state cold light source, stable optical performance, No light preheating required, lifelong up to10 years.
3. Using Glos water quality intelligent detection program, can be used for guiding detection and batching detection of contaminated samples
4. Digestion and colorimetry are integrated, no need to replace to colorimetry dish detection, analyze with simple and efficient
5. 4.3 inch HD colour display, flat UI design, convenient for users to operate the analyzer
6. ABS material, high strength, corrosion resistance, temperature resistant shell
7. May select either auto-printing concentration value or manual printing mode after analyse completed
8. Equipped with prefabricated reagents, only need to add water sample in the test tube, then digested for detection
9. Separated design for analyzer and digestion equipment, which does not affect the stability of light source system and optical sensor.

Technical Parameter

Model No.	TP800
Test Parameter	Total Phosphorus Testing Analyzer
Measurement Standard	GB11893-89 Ammonium Molybdate Spectrophotometry method
Measurement Range	0-20mg/L
Lower Limit	0.02mg/L
Digestion Temperature	150ºC, 15 minutes
Detection Time	25 samples/minutes
Indication Error	≤5% or ±0.04mg/L
Power Supply	AC(220V±5%), 50Hz
Operating Environment	5-40ºC, ≤85% non-condensing
Dimensions	300mm×230mm×115mm
Weight	Estimated 2.8kg
Display Mode	4.3-inch color LCD
Colorimetric Method	Colorimetric tube (digestion colorimetric integration)
Other Functions	Can be connected to a computer

Complete Set

Product	Quantity
Analyzer	1
16-Hole Digester	1
Total Phosphorus Reagent	1
Pipette	1
Test tube rack	1
Digestion colorimetric tube	18
Brown Bottle	1
Dilution bottle	4
Gloves	2
Flannel	1
User Manual	1

After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.


FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.

How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.


Delivery:







Our company:
