• Model NO.：TN800
• Application：Agriculture & Food
• Operating Mode：Keyboard
• Off Mode：Automatic
• Chemical Analysis Type：electrochemistry
• Model No.：TN800
• Measurement Range：0-200mg,L
• Detection Time：25 samples,minutes
• Weight：2.8KG
• Transport Package：Standard Packing
• Specification：300mmx230mmx115mm
• Trademark：twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. TN800 Application Agriculture & Food Operating Mode Keyboard Off Mode Automatic Chemical Analysis Type electrochemistry Model No. TN800 Measurement Range 0-200mg/L Detection Time 25 samples/minutes Weight 2.8KG Transport Package Standard Packing Specification 300mmx230mmx115mm Trademark twinno Origin Shanghai, China HS Code 9027 Production Capacity 1000PCS/Month

Product Description

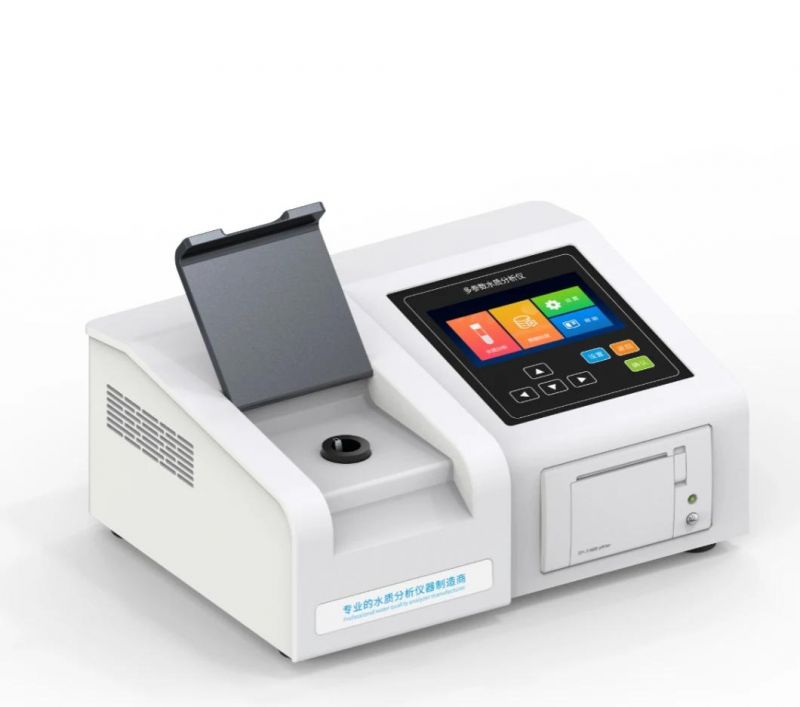

TN800 Total Nitrogen Analyzer


Overview
TN800 Total nitrogen analyzer adopts the catalysis-digestion-sealed method to measure concentration of samples. Advanced solid-state cold light source, narrow-band technology and micro-computer dynamic processing data can directly display and print the concentration values of samples.

The analyzer equipped with Glos water quality intelligent detection program and guided detection mode, which reduces the learning cost and enables the user operates simple and effectively. The chromotropic acid method is approved by EPA from US and efficiency to analyze the concentration of total nitrogen.

Principle
Total nitrogen analyzer principle (Chromotropic acid method): An alkaline persulfate digestion converts all form of the mineral nitrogen to nitrate. Sodium metabisulfite is added after the digestion to eliminate halogen oxide interference. Nitrate then reacts with chromotropic acid under strongly acidic conditions to form a yellow complex. The yellow complex is used to determine the concentration of total nitrogen.

Features


1. Analyze the total nitrogen with accuracy and effectively which approved by EPA from US
2. Imported solid-state cold light source, stable optical performance, no preheating light source, lifelong 10 years
3. Using Glos water quanlity intelligent detection program, can be used for guiding detection and batching detection of contaminated samples
4. Digestion and colorimetry are integrated, no need to replace to colorimetry dish detection, analyze with simple and efficient
5. 4.3 inch HD colour display, flat UI design, convenient for users to operate the analyzer
6. ABS material, high strength, corrosion resistance, temperature resistant shell
7. May select either auto-printing concentration value or manual printing mode after analyse completed
8. Equipped with prefabricated reagents, only need to add water sample in the test tube, then digested for detection
9. Separated design for analyzer and digestion equipment, which does not affect the stability of light source system and optical sensor

Technical Parameter


Model	TN800
Tester	Total nitrogen analyzer
Measurement Standard	Chromotropic acid method
Measure Range	0-200mg/L (phrase)
Lower Limit	0.25 mg/L
Digestion Temperature	120ºC, 30 minutes
Digestion Time	25 samples/ minutes
Indicator Error	≤5% or ±0.1 mg/L
Power Supply	AC (220V±5%), 50Hz
Operating Environment	5-40ºC, ≤85% non condensing
Dimensions	300mm×230mm×115mm
Weight	Estimated 2.8kg
Display	4.3-inch color LCD
Colorimetric Method	Colorimetric tube (digestion colorimetric integration)
Other Functions	Connected with PC

Completed Set

Product	Quantity
Total Nitrogen Analyzer	1
16-Hole Digester	1
Total Nitrogen Reagent	1
Pipette	1
Test tube rack	1
Digestion colorimetric tube	18
Dilution bottle	4
Gloves	2
Flannel	1
User instructions	1
