• Model NO.：GDW-106
• Heating Mode：Step Heating
• Off Mode：Manual
• Measurement Range：0ug-100mg
• Resolution：0.1ug
• Electrolyzing Current：0~400mA
• Max Electrolyzing Speed：2.4mg,M
• Voltage Source：AC220V± 20%
• Max Power Consumption：20W
• Electrolysis water accuracy：3ug-1000ug ≤±2ug
• Transport Package：Wooden Case
• Specification：ISO, SGS
• Trademark：HV Hipot
• Origin：Wuhan China
• HS Code：9031809090
• Production Capacity：2000PCS,Year

Basic Info.

Model NO. GDW-106 Heating Mode Step Heating Off Mode Manual Measurement Range 0ug-100mg Resolution 0.1ug Electrolyzing Current 0~400mA Max Electrolyzing Speed 2.4mg/M Voltage Source AC220V± 20% Max Power Consumption 20W Electrolysis water accuracy 3ug-1000ug ≤±2ug Transport Package Wooden Case Specification ISO, SGS Trademark HV Hipot Origin Wuhan China HS Code 9031809090 Production Capacity 2000PCS/Year

Product Description

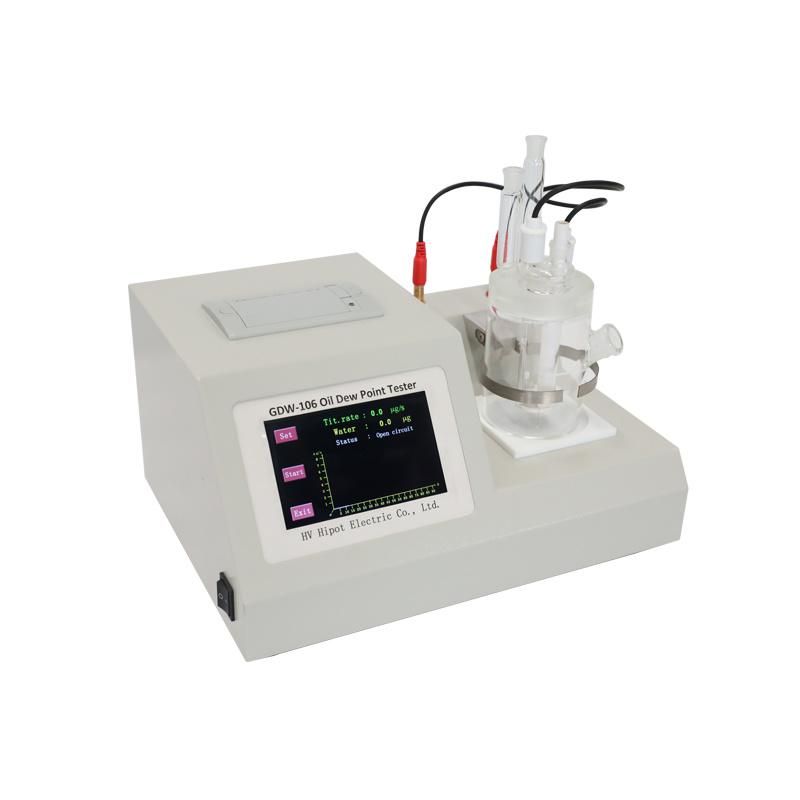

GDW-106 Moisture In Oil Tester



General Information

Coulometric Karl Fischer technology is applied to measure precisely trace moisture the measured sample contains.The technology is widely used for accuracy and cheap test cost. The model GDW-106 measure precisely trace moisture on liquid, solid and gas samples according to the technology. It's used in electricity, petroleum, chemicals, foods and so on.

This instrument uses powerful new generation processing units and brand new peripheral circuit and that the superior low power consumption make it capable to use small size storage battery and portable. Judging the electrolysis endpoint is based on testing electrode signal and the stability and accuracy are the vital factors of determination precision.



Features

1. 5-inch high-definition color touch screen, the display is clear and easy to operate.
2. Two methods of electrolyte blank current compensation and balance point drift compensation to revise testing results.
3. Functions of detecting measuring electrode open circuit fault and short circuit fault.
4. Adopts thermal micro printer, printing is convenient and fast.
5. 5 calculation formulas are built in the instrument, and the calculation unit of test results (mg / L, ppm%) can be selected as required.
6. Automatically save history records with time tab, maximum to 500 records.
7. Blank current microprocessor automatically controls compensation, and reagents can quickly reach equilibrium.

Specifications

Measurement Range	0ug-100mg;
Measurement accuracy	Electrolysis water      Accuracy 3ug-1000ug            ≤±2ug     >1000ug               ≤±02% (the above parameters do not include injection error)
Resolution	0.1ug;
Electrolyzing Current	0-400mA
Max power consumption	20W
Power Input	AC230V±20%, 50Hz±10%
Operating Ambient temperature	5~40ºC;
Operating Ambient humidity	≤85%
Dimension	330×240×160mm
Net weight	6kg.

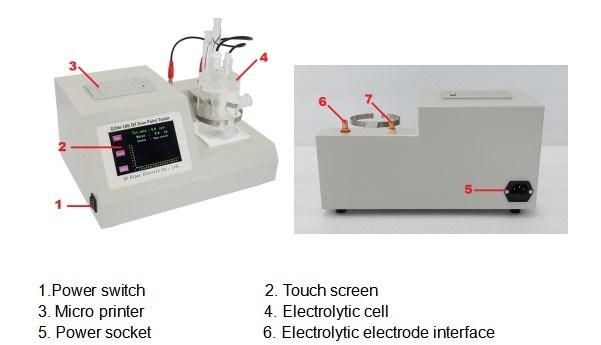

Instrument Structure and Assembly
