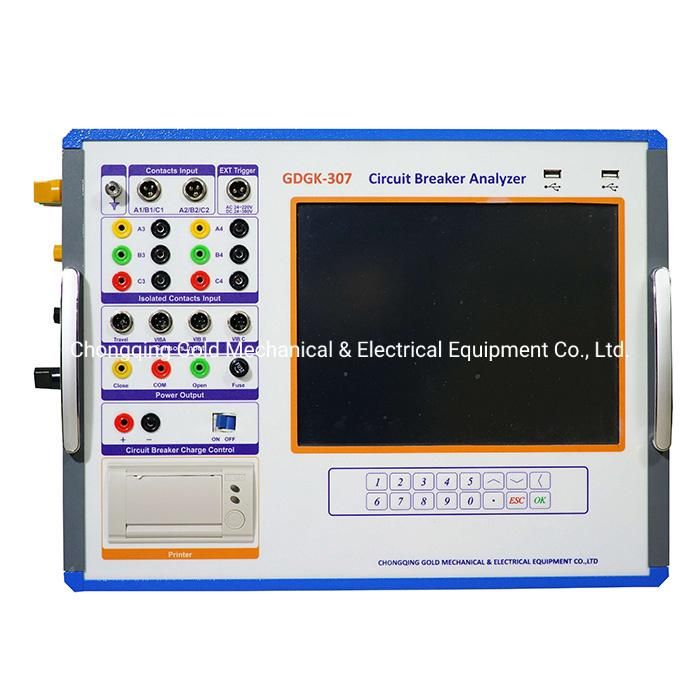

High Voltage Switch Tester Circuit Breaker Analyzer CB Dynamic Characteristics Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • After-sales Service：Online Service
  • Warranty：2 Years
  • Time Measurement Range：4000ms
  • Time Measurement Error：< 0.1ms
  • Resolution：0.01ms
  • Test Current：25~100A

Base Info

  • Model NO.：GDGK-307
  • Vibration Measurement Range：0~5000g; Error: <3%
  • Coil Current Measurement：Range: 0~20A; Resolution: 0.001A; Error:<0.01A
  • Internal DC Power Source：Voltage: 12~265V; Current:0~20A
  • Pre-Insertion Resistance Measurement：Range: 50~5000ohm; Error :<1%Rdg+2D
  • Power Supply：AC220V±10%; 50Hz±10%
  • Working Environment：Temperature: -10~50°c; Humidity:<80%
  • Transport Package：Standard Wooden Case
  • Specification：ISO
  • Trademark：GOLD
  • Origin：Chongqing
  • HS Code：9031809090
  • Production Capacity：1000PCS,Month

Description

Speed measurement250mm linear resistance scale: 0~20m/s; error:<0.5%RDG+2D25mm linear resistance scale: 0~20m/s; error: <0.5%RDG+2DAngle sensor: 0~20m/s; error: <0.5%RDG+2DAcceleration sensor: 0~20m/s; error: <5%RDG+2DCoil current measurementRange: 0~20A; resolution: 0.001A; error: <0.01AVibration measurementRange: 0~5000G; error: <3%Internal DC power sourceVoltage: 12~265V; current:0~20AData SaveBuilt-in 8G storage memory and 2 USB interface for data export and external keyboard or mouse connectionPower supplyAC220V±10%; 50Hz±10%Working environmentTemperature: -10~50°C; Humidity: <80%
High Voltage Switch Tester Circuit Breaker Analyzer CB Dynamic Characteristics Tester
