• Model NO.：SA9115,SA9130,SA9232,SA9275
• Interface：USB Host & Device, LAN, VGA, RS-232(for SA9100)
• Resolution：1Hz
• Sweep Mode：Continuous, Single
• Phase Noise：<-100dbc,Hz @10 kHz Offset (Typical)
• External Trigger Level：5V Ttl Level
• EMI Measurement：200Hz, 9kHz, 120kHz
• Transport Package：Carton Package
• Specification：392*452*272 MM
• Trademark：SUIN
• Origin：China
• HS Code：9030409000
• Production Capacity：30000 Set,Year

 SA9115SA9130SA9232SA9275FrequencyRange9kHz  ~ 1.5GHz9kHz ~ 3.0GHz9kHz ~ 3.2GHz9kHz ~ 7.5GHzResolution1HzAging Rate<5*10^-6/year<1*10^-6/yearFrequency SpanFrequency Span Range0Hz, 100Hz ~ 1.5GHz0Hz, 100Hz ~3.0GHz0Hz, 100Hz ~ 3.2GHz0Hz, 100Hz ~ 7.5GHzUncertainty±span/(sweep points-1)SSB Phase Noise(fc=1.0GHz)-80dBc/Hz@10kHz offset-96dBc/Hz@10kHz offsetBandwidthResolution Bandwidth (-3dB)10Hz ~ 1MHz,  step 1-3-10RBW Uncertainty10%, nominal (RBW>1kHz)20%, nominal(RBW≥10Hz, sweep time≥5s)Video Bandwidth (-3dB)1Hz to 1MHz,  step 1-3-10AmplitudeRangeDANL to +30dBmDANL to +20dBmMaximum Input LevelDC Voltage:50VCW RF Power:+30dBm(1.0w)CW RF Power:+20dBm(0.1w)Max.Damage Level:+40dBm(10W)Max.Damage Level:+30dBm(1W)Displayed Average Noise Level (DANL)DANL (Preamplifier Off)typ.-125dBmtyp.-135dBmDANL (Preamplifier On)typ.-135dBmtyp.-152dBmReference Level Range-100 dBm to +30dBm,step 1 dBSweepSweep Time Range10 ms to 3000 s(100Hz≤span≤3GHz)1 ms to 7500 s(100Hz≤span≤7.5GHz)20 μs to 3000 s(Span=0Hz)20 μs to 7500 s(Span=0Hz)Sweep Time Uncertainty5%, nominal(100Hz≤Span≤7.5GHz)0.5%, nominal(Span=0 Hz)Sweep ModeContinuous, singleTriggerTriggerTrigger SourceFree, Video, ExternalExternal Trigger Level5 V TTL levelAdvanced MeasurementChannel Power, Adjacent Channel Power,N-dB bandwidth, Occupied BandwidthEMI200Hz,9kHz, 120kHzInput/OutputRF Input Impedance50ΩStandard frequencyFrequency:10MHzAmplitude:0dBm~10dBm(input)-3dBm to +3dBm(output)Tracking Generator(-TG Model)TG Frequency range9kHz to 1.5GHz9kHz to 3GHz100kHz to 3.2GHz100kHz to 7.5GHzTG Output level range-20dBm to 0dBm-40dBm to 0dBmTG Output level resolution1dBInterfaceTypeUSB Host&Device, LAN, VGA,RS-232(only SA9100 series available)General CharacteristicPower SupplyInput Voltage:AC100V to 240VFrequency:50/60Hz(1±10%)Power Consumption:35WDimension & Weight 364×155×328mm,approx. 6.0kg364×155×328mm, approx. 6.5kgOptionsAbout SUIN

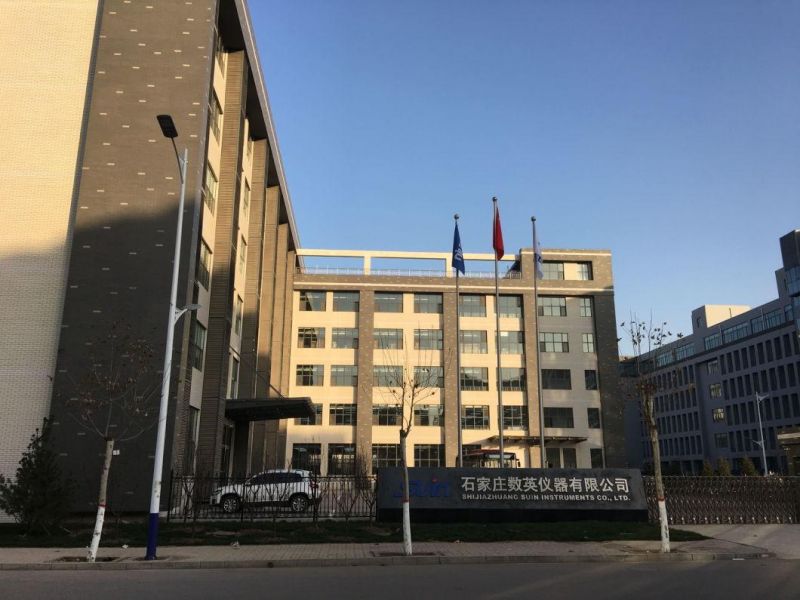

Shijiazhuang SUIN Instruments Co., Ltd is a high-tech company and concentrates on R&D, production, test, sales and service of test & measurement instruments, electrical products, application software, etc.
