• Model NO.：MP-1B
• Performance：Automatic
• Power Supply：220V
• Weight：0-50kg
• Certification：CE, UL
• Customized：Customized
• Customized Support：OEM, ODM
• Place of Origin：Shandong, China
• Model Number：MP-1b
• Mortor：370W
• Dimension：700X600X310
• Rotating Speed：450rpm 600rpm
• Net Weight：15kg
• Application：Metal Grinding and Polishing
• Grind Polish Diameter：200mm ( 230mm 250mm )
• Disc Station：1
• Transport Package：Plywood Case
• Trademark：CHENJI
• Origin：China
• HS Code：8460402000
• Production Capacity：1000 Set , Year

Basic Info.

Model NO. MP-1B Performance Automatic Power Supply 220V Weight 0-50kg Certification CE, UL Customized Customized Customized Support OEM, ODM Place of Origin Shandong, China Model Number MP-1b Mortor 370W Dimension 700X600X310 Rotating Speed 450rpm 600rpm Net Weight 15kg Application Metal Grinding and Polishing Grind Polish Diameter 200mm ( 230mm 250mm ) Disc Station 1 Transport Package Plywood Case Trademark CHENJI Origin China HS Code 8460402000 Production Capacity 1000 Set / Year

Product Description

Rock Stone Metal Material Specimen Grinder for Sample Making

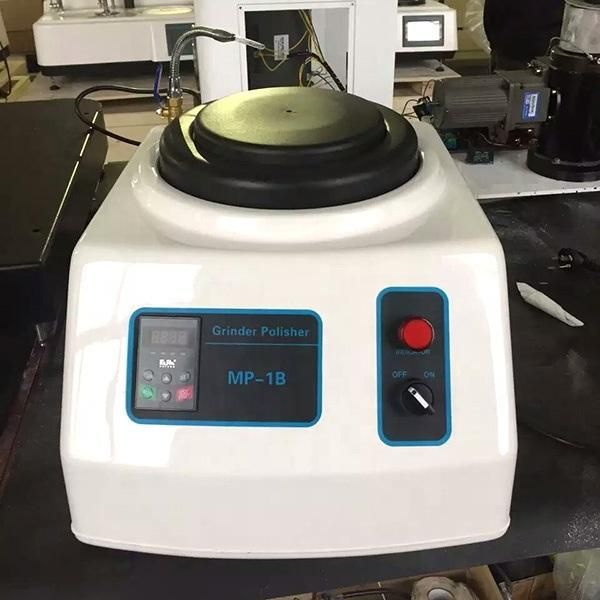

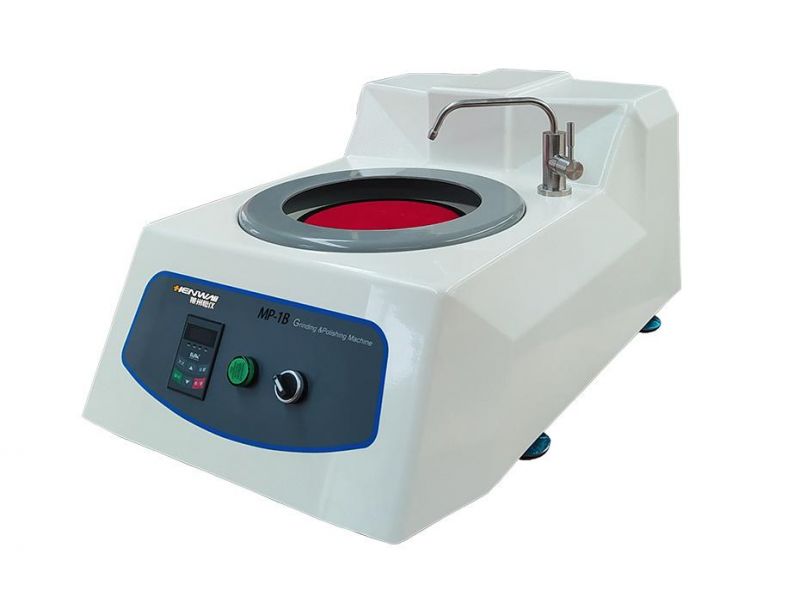

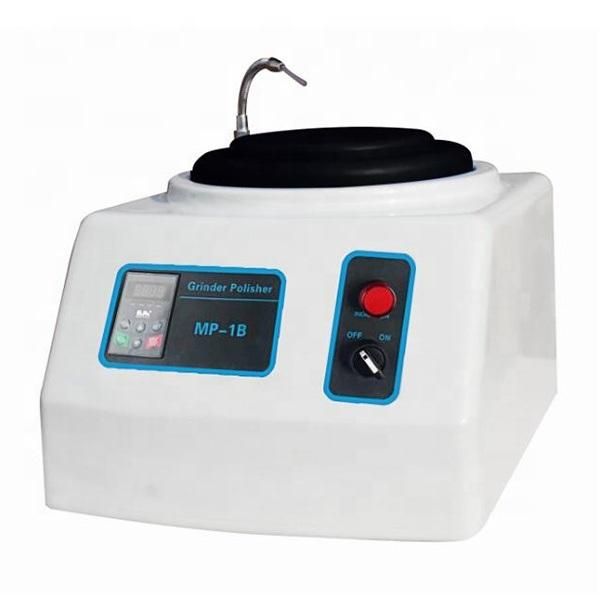

MP-1B Single Disc Auto Metal Specimen Surface Processing Polishing Grinding Machine
The MP-1B metallographic sample grinding and polishing machine is a frequency conversion stepless speed-regulating single-disk desktop machine, which is suitable for pre-grinding, grinding and polishing metallographic samples. This machine can not only perform light grinding, rough grinding, semi-finishing grinding, and fine grinding, but also precise polishing of samples. It is an indispensable equipment for users to make metallographic samples.

Application and Features:
MP-1B Metallographic Specimen Grinding & Polishing Machine is equipped with single disc and features stepless speed changing grinding and polishing.
The rotating speed of grinding and polishing disc is adjustable from 50 to 1000 rpm.
It can realize the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. This machine features easy operation and economical applying.
It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

Model	MP-1B
Grnding Polishing Disk Diameter	230mm
Rotating Speed	450 rpm
Motor	370w
Voltage	AC 220V 50HZ
Dimension	700×600×310mm
Net Weight	15kg
