Good 10ml Isocratic Analysis HPLC

Good Science (Tianjin) Instrument Technology Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Year
  • Appliance：The Analysis of Environmental Samples
  • Ray Type：No
  • Gaspath System：No
  • Detector：UV

Base Info

  • Model NO.：GS-HPLC-LC-200
  • Energy Resolution：2%
  • Certification：CE, ISO
  • Spectrometer Detector：UV
  • Stationary Phase：Solid Adsorbent
  • Mobile Phase：Liquid
  • Chromatography Type：Liquid Chromatography
  • Chromatographic Column Type：Convetional Analytical Column
  • Chromatographic Column Length：ID4.6*250mm
  • Chromatographic Column Diameter：2~5mm
  • Weight：30kg
  • After Sales Service：Support
  • Installtion Video：Yes
  • Injection Mode：Manual(Autosampler as Option)
  • Transport Package：Carton
  • Specification：45*30*30cm
  • Trademark：Good Science
  • Origin：China
  • HS Code：90272012
  • Production Capacity：200units Per Year

Description

Type10ml pump ,SSFlow Range0.01-9.99ml/min,Flow rate increment 0.001ml/minMax Pressure42MPAFlow Accuracy±0.5%Flow Rate PrecisionRSD≤0.1%Pressure Fluctuation≤0.2MPA  Piping Connection1/16"OD,0.25mmIDDisplayOLED Graphical displayWet Material316L,Precious stone,PTFE,PEEK

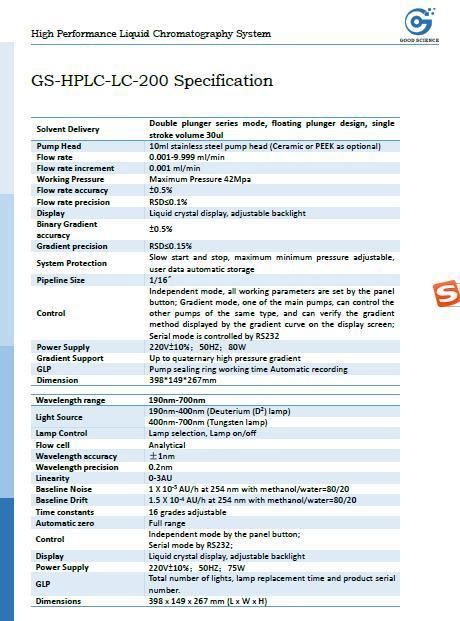

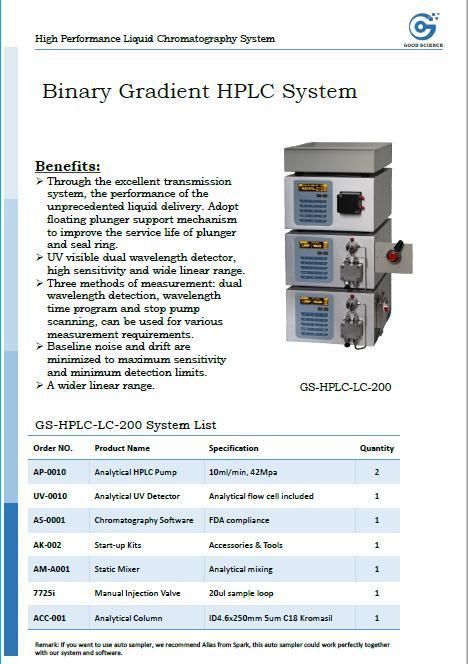

 Part Three:Brochure refer as bellow Binary 10ml HPLC System

Good 10ml Isocratic Analysis HPLC

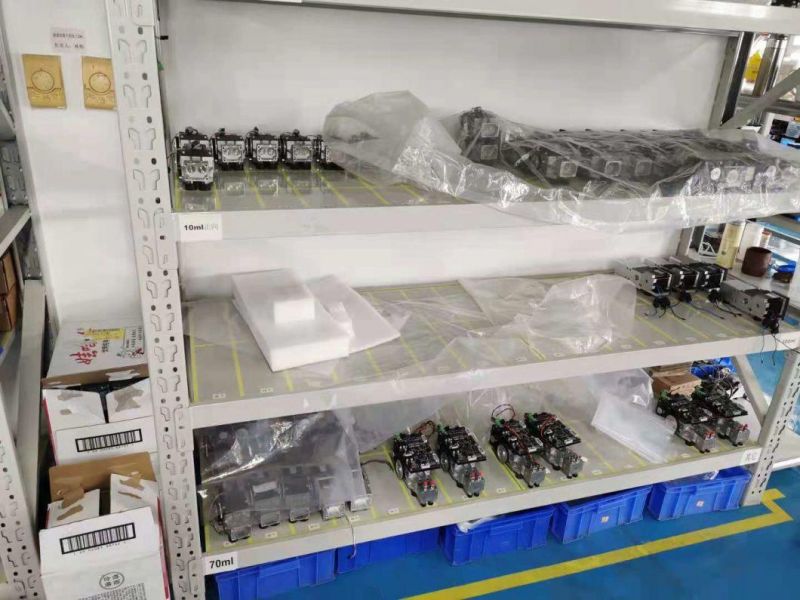

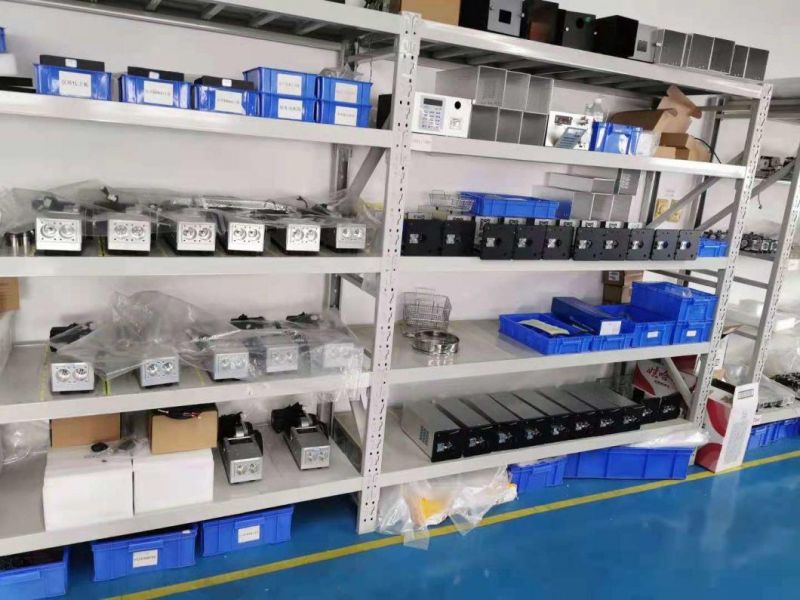

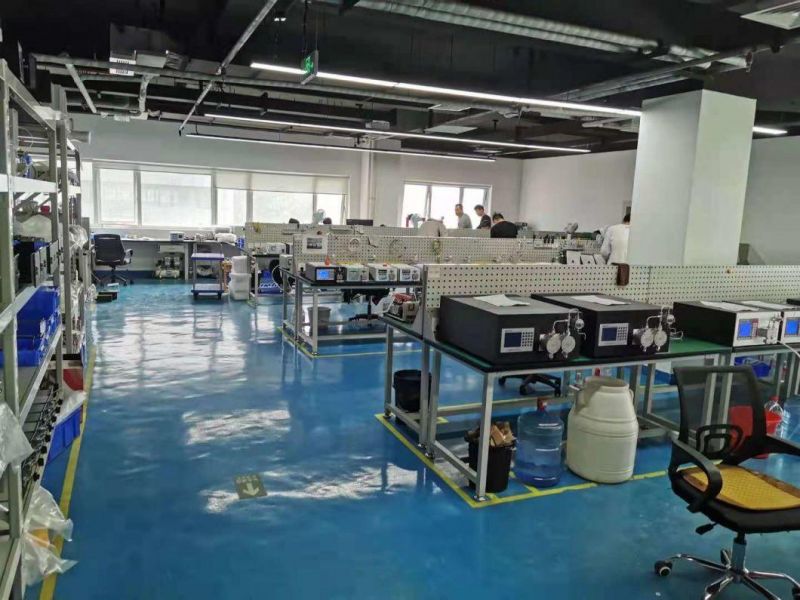

Good 10ml Isocratic Analysis HPLCPart Four:Factory Pictures:
Good 10ml Isocratic Analysis HPLCGood 10ml Isocratic Analysis HPLCGood 10ml Isocratic Analysis HPLC

Part Five:packing

450*300*300mm   2cartons
