CS3104 Multichannel Potentiostat 4-Channel Potentiostat with Eis
Wuhan Corrtest Instruments Corp., Ltd.- Number of Channels：4
- Potential Control Range：±10V
- Constant Current Control Range：±500mA
- Eis Frequency Range：10uhz~1MHz
- Application：Energy, Materials, Battery, Corrosion, etc
- Customization：Support
Base Info
- Model NO.：CS3104
- Transport Package：Standard Carton
- Trademark：Corrtest
- Origin：China
- HS Code：9027809990
- Production Capacity：100 Sets,Year
Description
Bandwidth adjustment: automatic and manual, 8-decade frequency range
Techniques
EIS is included in one channel for model CS3104.
Stable polarization

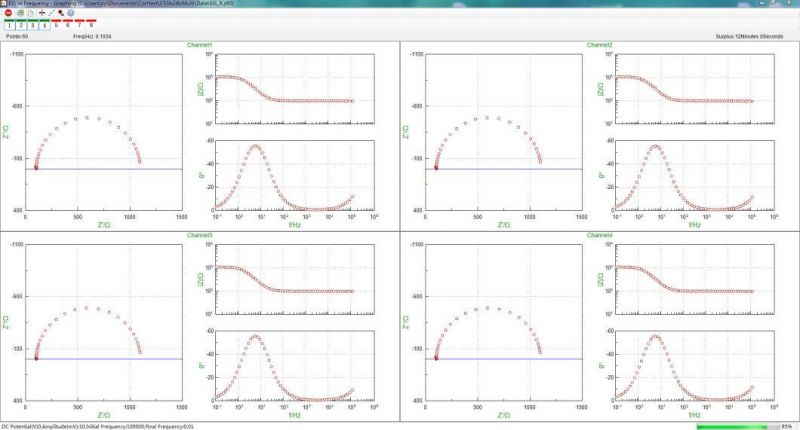

You can choose a same electrochemical technique in every channel. As is shown in below picture, we let 4 channels do EIS.

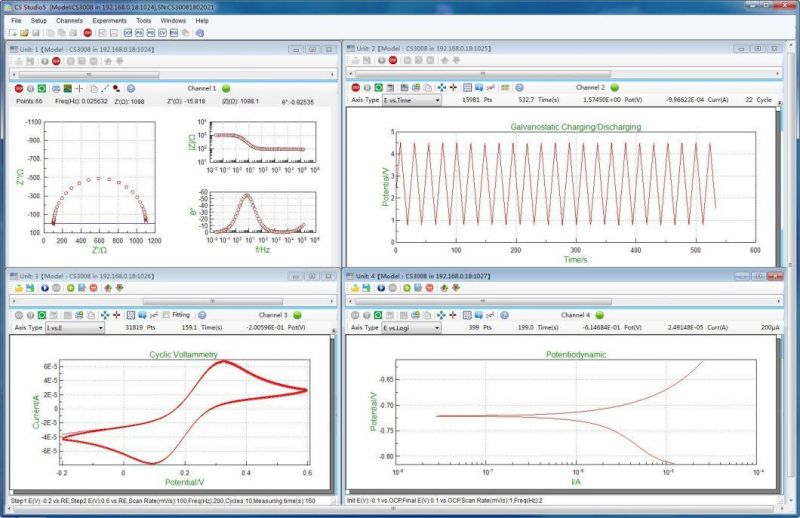

In each channel, the user can also choose different experiments. Set the parameters for experiment in each channel and start simultaneous measurements. As is shown in the below picture, EIS, galvanostatic charge and discharge, CV, and polarization curve tests are conducted at the same time.
Standard supply list
Instrument host -1set
CS studio software -1set
Power cable - 1 piece,
Ethernet cable - 1 piece,
Cell cable - 8 pieces,
Dummy cell - 4 pieces,
Manual - 1,
Warranty card - 1
Service (all the service is totally free)
1. Warranty period: 5 years.
2. Provide installation guide, manual, software installation video & training videos.
3. Free repair service
4. Lifetime software upgrading and technical service.
Techniques
EIS is included in one channel for model CS3104.
Stable polarization
- Open Circuit Potential (OCP)
- Potentiostatic (I-T curve)
- Galvanostatic
- Potentiodynamic (Tafel plot)
- Galvanodynamic (DGP)
- Sweep-Step Functions (SSF)
- Multi Potential Steps
- Multi Current Steps
- Potential Stair-Step (VSTEP)
- Galvanic Stair-Step (ISTEP)
- Chronopotentiometry (CP)
- Chronoamperametry (CA)
- Chronocaulometry (CC)
- Linear Sweep Voltammetry (LSV)
- Cylic Voltammetry (CV)
- Staircase Voltammetry (SCV)
- Square Wave Voltammetry (SWV)
- Differential Pulse Voltammetry (DPV)
- Normal Pulse Voltammetry (NPV)#
- Differential Normal Pulse Voltammetry (DNPV)
- AC Voltammetry (ACV)
- 2nd harmonic AC Voltammetry (SHACV)
- Fourier Transform AC Voltammetry (FTACV)
- Potentiostatic Stripping
- Linear Stripping
- Staircase Stripping
- Square Wave Stripping
- Differential Pulse Voltammetry Stripping
- Normal Pulse Voltammetry Stripping
- Differential Normal Pulse Voltammetry Stripping
- Differential Pulse Amperometry (DPA)
- Double Differential Pulse Amperometry (DDPA)
- Triple Pulse Amperometry (TPA)
- Integrated Pulse Amperometric Detection (IPAD)
- EIS vs Frequency (IMP)
- EIS vs Time (IMPT)
- EIS vs Potential (IMPE)(Mott-Schottky)
- Cyclic polarization curve (CPP)
- Linear polarization curve (LPR)
- Electrochemical Potentiokinetic Reactivation (EPR)
- Electrochemical Noise (EN)
- Zero resistance Ammeter (ZRA)
- Battery Charge and Discharge
- Galvanostatic Charge and Discharge (GCD)
- Potentiostatic Charging and Discharging(PCD)
- Potentiostatic Intermittent Titration Technique (PITT)
- Galvanostatic Intermittent Titration Technique (GITT)
- Data Logger
- Electrochemical Stripping/ Deposition
- Bulk Eletrolysis with Coulometry (BE)
- Rs Measurement
You can choose a same electrochemical technique in every channel. As is shown in below picture, we let 4 channels do EIS.
In each channel, the user can also choose different experiments. Set the parameters for experiment in each channel and start simultaneous measurements. As is shown in the below picture, EIS, galvanostatic charge and discharge, CV, and polarization curve tests are conducted at the same time.
Standard supply list
Instrument host -1set
CS studio software -1set
Power cable - 1 piece,
Ethernet cable - 1 piece,
Cell cable - 8 pieces,
Dummy cell - 4 pieces,
Manual - 1,
Warranty card - 1
Service (all the service is totally free)
1. Warranty period: 5 years.
2. Provide installation guide, manual, software installation video & training videos.
3. Free repair service
4. Lifetime software upgrading and technical service.
