• Model NO.：CS7862D
• Certification：RoHS, CE, ISO9001, ISO9001, CE, SGS, ISO14001
• Type：Concentration Meter, TSS,MLSS,Turbidity Electrode
• Function：Over Voltage Protection, Overheat Protection, Short Circuit Protection
• Materials：Stainless Steel
• Power：12VDC
• Output：RS485 MODBUS RTU
• Measure：135 degree infrared
• Housing material：PVC+316 Stainless steel
• Waterproof grade：IP68
• Measurement range：0.01-50000mg,L
• Accuracy：<measured value +,- 5%
• Installation thread：NPT3,4 inch
• Pressure Range：0-0.3MPa
• Transport Package：Carton Box
• Specification：Diameter 50mm* Length 223mm
• Trademark：Twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：3000PCS,Month
• Package size per unit product：35.00cm * 28.00cm * 12.00cm
• Gross weight per unit product：2.500kg
• Lead Time：7 days (1 - 50 Pieces) 15 days (51 - 200 Pieces) 30 days (201 - 500 Pieces) To be negotiated ( > 500 Pieces)

Basic Info.

Model NO. CS7862D Certification RoHS, CE, ISO9001, ISO9001, CE, SGS, ISO14001 Type Concentration Meter, TSS/MLSS/Turbidity Electrode Function Over Voltage Protection, Overheat Protection, Short Circuit Protection Materials Stainless Steel Power 12VDC Output RS485 MODBUS RTU Measure 135 degree infrared Housing material PVC+316 Stainless steel Waterproof grade IP68 Measurement range 0.01-50000mg/L Accuracy <measured value +/- 5% Installation thread NPT3/4 inch Pressure Range 0-0.3MPa Transport Package Carton Box Specification Diameter 50mm* Length 223mm Trademark Twinno Origin Shanghai, China HS Code 9027 Production Capacity 3000PCS/Month

Packaging & Delivery

Package size per unit product 35.00cm * 28.00cm * 12.00cm Gross weight per unit product 2.500kg Lead Time 7 days (1 - 50 Pieces)
15 days (51 - 200 Pieces)
30 days (201 - 500 Pieces)
To be negotiated ( > 500 Pieces)

Product Description

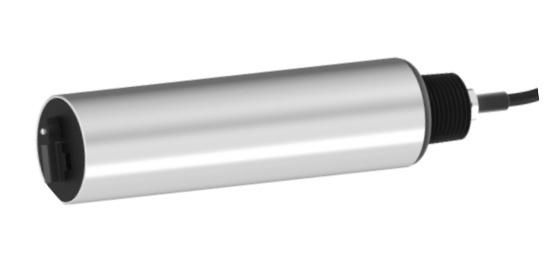

Digital Suspended Solids (Sludge concentration) Sensor
with Automatic Cleaning



The principle of the Suspended Solids (Sludge concentration) is based on the combined infrared absorption and scattered light method. The ISO7027 method can be used to continuously and accurately determine the sludge concentration. According to ISO7027 infrared double-scattering light technology is not affected by chromaticity to determine the sludge concentration value. The self-cleaning function can be selected according to the use environment. Stable data, reliable performance; built-in self-diagnosis function to ensure accurate data; simple installation and calibration.

The electrode body is made of 316L stainless steel, which is corrosion-resistant and more durable. The seawater version can be plated with titanium, which also performs well under strong corrosion. Fully automatic electrode scraper, self-cleaning function, effectively prevent solid particles from covering the lens, improve measurement accuracy, and prolong use accuracy.

IP68 waterproof design, can be used for input measurement. Real-time online recording of Turbidity/MLSS/SS, temperature data and curves, compatible with all water quality meters of our company.




Typical application:

Suspended Solids (Sludge concentration) monitoring of water from waterworks, water quality monitoring of municipal pipeline network; industrial process water quality monitoring, circulating cooling water, activated carbon filter effluent, membrane filtration effluent, etc.



Main features:


1. The internal upgrade of the sensor can effectively prevent the internal circuit from dampness and dust accumulation, and avoid damage to the internal circuit.
2. The transmitted light adopts stable invisible near-monochromatic infrared light source, which avoids the interference of chroma in liquid and external visible light to sensor measurement.And built-in luminosity compensation, improve the measurement accuracy.
3. The use of quartz glass lens with high light transmittance in the optical path makes the transmission and reception of infrared light waves more stable.
4. Wide range, stable measurement, high precision, good reproducibility.
5. Communication functions: Two photoelectric isolation signal output, one RS-485 communication interface (Modbus-RTU protocol compatible), the fastest communication interval is 50ms.One way 4 ~ 20mA current output, 4-20mA can reverse output; No instrument, can be directly connected to computers, PLC and other devices with RS485/4-20mA signal interface for data acquisition.It is convenient for users to integrate the sensor into the upper computer system and the IoT system and other industrial control environment.
6. Without meter, the sensor can be set online through software, from the machine address and baud rate, online calibration, restore factory, 4-20mA output corresponding range, modify the range, proportional coefficient and incremental compensation Settings.

Technical parameters:



Model No.	CS7862D
Power/Outlet	9~36VDC/RS485 MODBUS RTU
Measurement mode	135°IR scattered light method
Dimensions	Diameter 50mm*length 223mm
Housing material	PVC+316 Stainless steel
Waterproof grade	IP68
Measurement range	10-50000mg/L
Measurement accuracy	< measured value±10%(Depending on the homogeneity of sludge) or 10mg/L, whichever is grater.
Pressure range	≤0.3Mpa
Measuring temperature	0-45ºC
Calibration	Standard liquid calibration, water sample calibration
Cable length	Standard 10m,can be extended to 100m
Thread	1 inch
Weight	2.0kg
Application	General applications, rivers, lakes, environmental protection, etc.

Delivery and Packing:







Our company:
