• Model NO.：WD6200
• Model No：Wd6200
• Sensor Type：Catalytic or Electrochemical or Infrared
• Accuracy：±5%Fs
• Signal Output：4-20mA
• Consumption：≤5W
• Sampling Method：Natural Diffusion
• Protection Grade：IP65
• Dimension：293X263X108mm
• Weight：About 2.7kg
• Transport Package：Carton
• Origin：China Mainland
• Production Capacity：2000PCS

Basic Info.

Model NO. WD6200 Model No Wd6200 Sensor Type Catalytic or Electrochemical or Infrared Accuracy ±5%Fs Signal Output 4-20mA Consumption ≤5W Sampling Method Natural Diffusion Protection Grade IP65 Dimension 293X263X108mm Weight About 2.7kg Transport Package Carton Origin China Mainland Production Capacity 2000PCS

Product Description

Description
The WD6200 Wall Mounted 0-30%Vol Fixed Oxygen Gas Detector is a versatile, easy-to-use device that allows you to select between combustible gases, hydrogen, carbon monoxide, oxygen, hydrogen sulfide, carbon dioxide, ammonia gas detection.

Applications
WD6200 Wall Mounted 0-30%Vol Fixed Oxygen Gas Detector Applications include oil and gas, petrochemicals, specialty chemicals, industrial refrigeration, water and wastewater treatment, plastics and fibers, pulp and printing, agriculture, manufacturing and other industrial processes.

Features
Explosionproof design
Smart sensor module
SIL2 certificate
LCM screen display

Technical Data
Sensor Type: Catalytic or electrochemical or infrared
Working Method: Natural diffusion
Working Voltage: DC24V±25%
Consumption: ≤5W
Accuracy: ≤±5%FS
Indication: LCM screen
Response Time (t90): ≤30s (LEL)/ ≤60s (Toxic gas / O2)
Temperature: -40ºC~70ºC (LEL) / -20ºC~50ºC (toxic gas / O2)
Humidity: ≤95%RH
Protection Grade: IP65
Signal Output: 4-20mA
Cable required:
≥1.5mm2 × 3 core cable (420mA type)
≥1.5mm2 × 4 core cable (RS485 type)
Distance to the panel: ≤1000m
Sensor life:
Catalytic: 3 years, Electrochemical: 2 years, Infrared: ≥ 5 years
Dimensions and Weight: 293mm×263mm×108mm, about 2.7kg

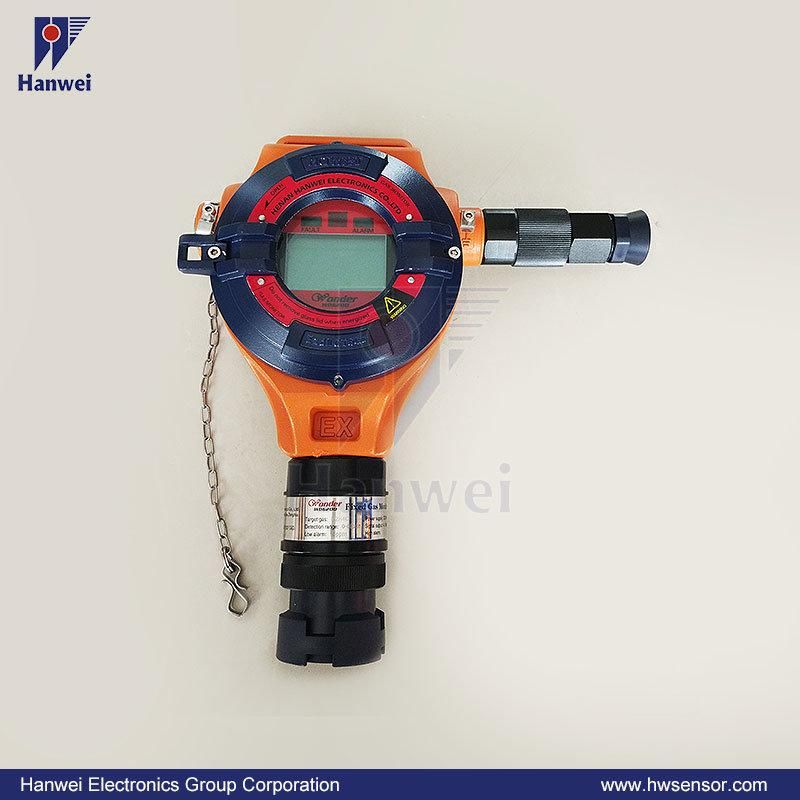

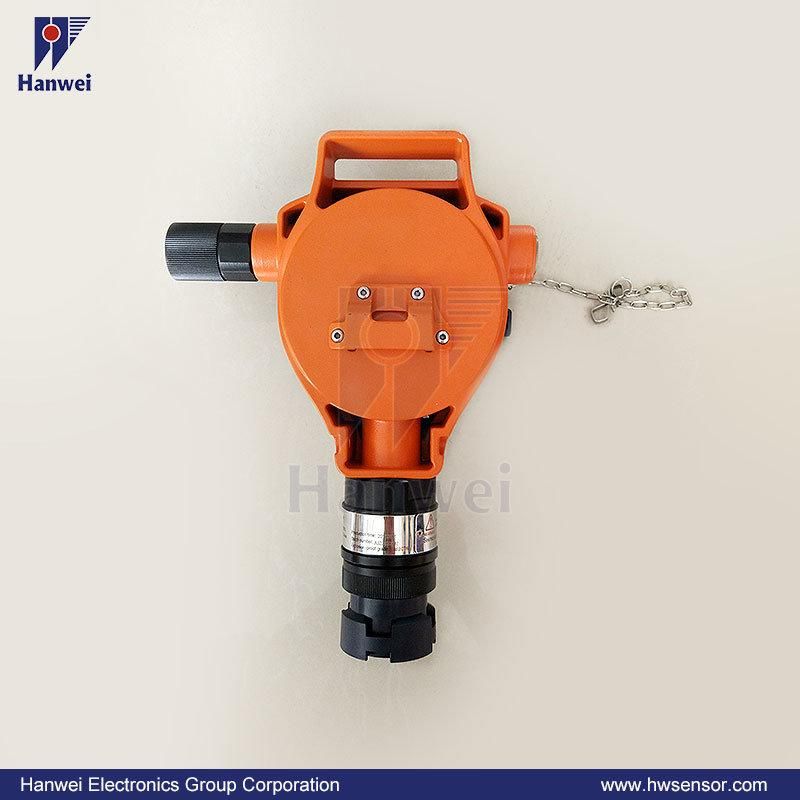

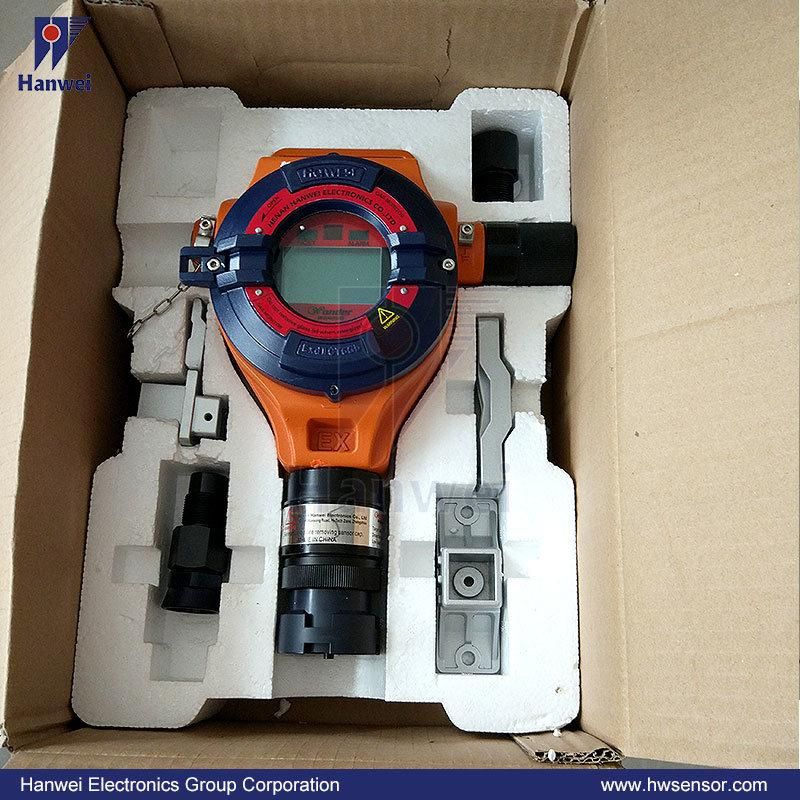

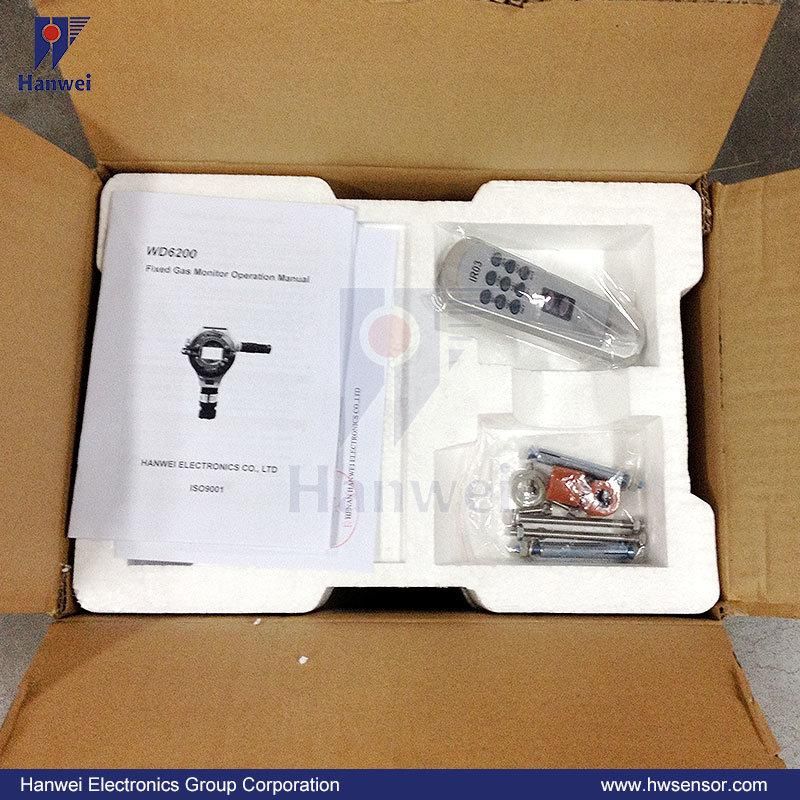

Product Pictures











FAQ:
Q1: Why do you choose our company?
A1: We are a professional manufacturer, We have seasoned engineers with 20 years' experience in gas detection field.  so we can offer products of the same quality at the best prices.

Q2: Can I have a sample order?
A2: The sample order to test are welcomed at the first time.

Q3: What certification do you have?
A3: CE, EN, BSI, UL, ISOD and etc.

Q4: How do I get price information?
A4: Sales representatives are responsible for providing detailed price information within 1 workday after get your inquiry.

Q5: If I order a large quantity, what's the best price?
A5: Please send the detailed enquiry to us, including item model number, quantity for each item, quality requirement, Logo and payment terms etc. We will make an accurate quotation to you at the earliest time.
