• Model NO.：ACD-3000I
• Trademark：TOP
• Origin：China
• HS Code：80999072
• Production Capacity：200 Set,Month

Basic Info.

Model NO. ACD-3000I Trademark TOP Origin China HS Code 80999072 Production Capacity 200 Set/Month

Product Description

Highly Accurate Turbine Oil Transformer Oil Diesel Oil Acidimeter(ACD)

Description
This tester, applicable to GB/T264, GB7599-87, GB/T7304-2000 and other regulations, which can accurately test the acid value of transformer oil, steam-turbine oil, fire-resistant oil, diesel oil, gasoline oil and other petroleum products, has been widely used in fields of chemical industry, power, petroleum, etc. And thus is a ideal successor to current petroleum products acid value tester.

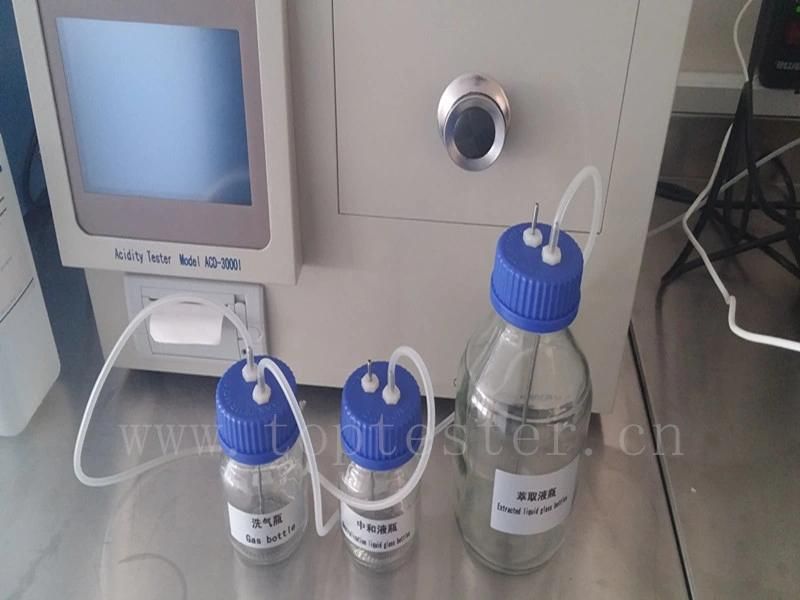

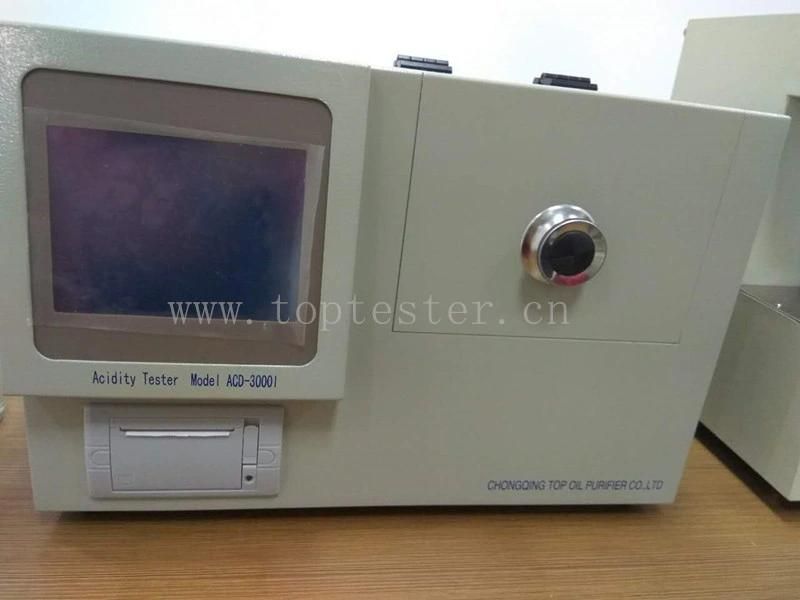

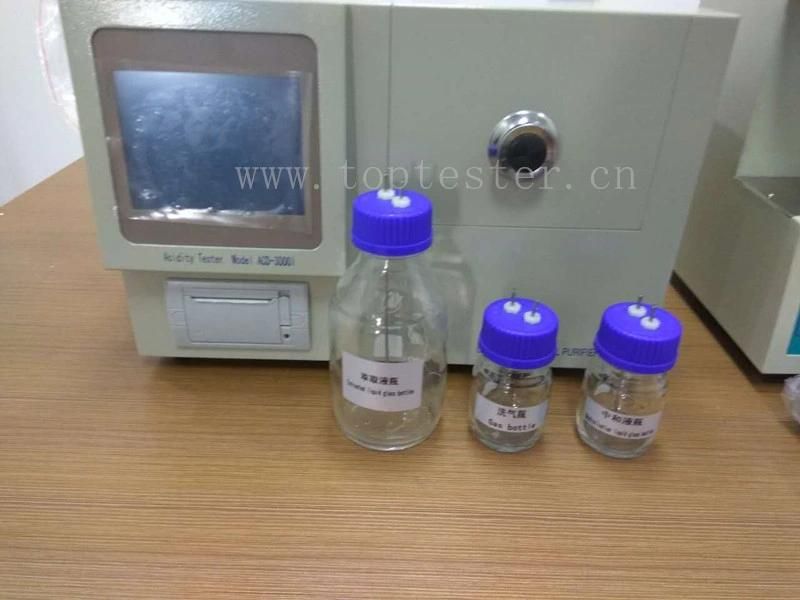

Detailed Images






Features
1. This tester adopts principle of acid-base titration and is controlled by micro-computer, with color LCD display and English input menu.

2. Functions of automatic liquid adding, titration, stirring, judging end point of titration, storage, printing results, etc.

3. Out shell is made of high-quality cold-rolled steel plates with electrostatic sprayed surface, anti-corrosion and easy to clean.

4. Tester could clean pipes automatically, avoiding pipes blocking as well as eliminating bubbles, so as to extend pipes service lifetime.

5. Automatic change-over and testing between six sample cups is convenient for parallel comparison of acid value testing results.

6. Tester could proceed automatic checking when breakdown occurs and is available to store 260 groups testing data.

Technical Parameters
Method of Display: 7 inch color LCD
Accuracy: Acid value: 0.001-0.100mgKOH/G deviation: 0.0005mgKOH/g
Acid value: 0.1-0.5mgKOH/G deviation: 5% of indications
Testing Range: 0.0005~0.5000mgKOH/g
Resolution Ratio: 0.0001mgKOH/g
Repeatability 0.004mgKOH/g
Method of Printing: High speed thermal dot printing
Environmental Humidity: ≤ 85%
Power Supply: 220V± 10%, 50Hz± 5%
Dimension: 440× 300× 220mm
Weight: 16kg

Test Equipment List

1. Transformer oil Breakdown voltage Tester ( BDV test kit) series IIJ-II
2. Acidity tester model ACD-3000I
3. Karl Fischer Water content Tester Model TP-6A / model TP-2100
4. Fully automatic Interfacial Tension Analyzer model IT-800
5. Gas-Chromatography transformer oil gas analyzer model DGA2013-1
6. Multi-functional Vibration tester model TYD-2000
7. Consolidation Point Determinator model PT-2000
8. Kinematic Viscosity tester model VST-8 /model VST-2000
9. Flash point tester (open cup) model TPO-3000
10. Flash point tester (close cup) model TPC-3000
11. TAN-DELTA TESTER, 10kV Capacitance and Dissipation Factor Test Set model CDEF
12. Automatic Freezing Point & Pour Point Tester model TP-501Z
13. Determination of foaming characteristic of lubricating oil model SD-12579
14. Earth resistance tester model HYDW-II
15. Coil Resistance Tester (TPZC-40)
16. CT/PT tester model TPVA-404
17. Transformer turn ratio tester model HYG-II
18. Relaying Protection Tester model TPJB-III
19. Digital Grounding Resistance Tester model TP2571-II
20. DC High Voltage Generator model ZGF
21. Underground water/gold detector model TP-UWD

About us
Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products have high quality, easy operation, excellent performance and long service life.

TOP Testers work on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers,and  high voltage testing equipment etc.

Service Commitment
1. Long-term warranty of 2 years.
2. Provide best necessary spare parts at low price (some for free).
3. Provide timely reply and technical support within 24 hours.
4. OEM is available for TOP Products.
5. Protect your sales area, ideas of design and all your private information.

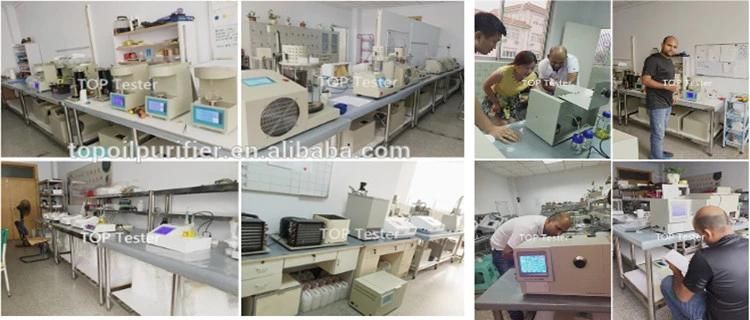

Our Laboratory
