• Model NO.：WD6200
• Model No：Wd6200
• Sensor Type：Catalytic or Electrochemical or Infrared
• Accuracy：±5%Fs
• Signal Output：4-20mA
• Consumption：≤5W
• Sampling Method：Natural Diffusion
• Protection Grade：IP65
• Dimension：293X263X108mm
• Weight：About 2.7kg
• Transport Package：Carton
• Origin：China Mainland
• Production Capacity：2000PCS

Basic Info.

Model NO. WD6200 Model No Wd6200 Sensor Type Catalytic or Electrochemical or Infrared Accuracy ±5%Fs Signal Output 4-20mA Consumption ≤5W Sampling Method Natural Diffusion Protection Grade IP65 Dimension 293X263X108mm Weight About 2.7kg Transport Package Carton Origin China Mainland Production Capacity 2000PCS

Product Description

Description
WD6200 High Quality Fixed C2h4o Gas Detector is an advanced fixed gas detector for the detection of combustible gases, toxic gases and oxygen levels. Provides advanced technology, easy operation, reliable and cost-effective gas monitoring.

Applications
WD6200 High Quality Fixed C2h4o Gas Detector fixed gas detector is widely used in the fields of oil processing plants, chemical factories, metallurgy, power plants etc.

Features
Explosionproof design
Smart sensor module
SIL2 certificate
LCM screen display

Technical Data
Sensor Type: Catalytic or electrochemical or infrared
Working Method: Natural diffusion
Working Voltage: DC24V±25%
Consumption: ≤5W
Accuracy: ≤±5%FS
Indication: LCM screen
Response Time (t90): ≤30s (LEL)/ ≤60s (Toxic gas / O2)
Temperature: -40ºC~70ºC (LEL) / -20ºC~50ºC (toxic gas / O2)
Humidity: ≤95%RH
Protection Grade: IP65
Signal Output: 4-20mA
Cable required:
≥1.5mm2 × 3 core cable (420mA type)
≥1.5mm2 × 4 core cable (RS485 type)
Distance to the panel: ≤1000m
Sensor life:
Catalytic: 3 years, Electrochemical: 2 years, Infrared: ≥ 5 years
Dimensions and Weight: 293mm×263mm×108mm, about 2.7kg

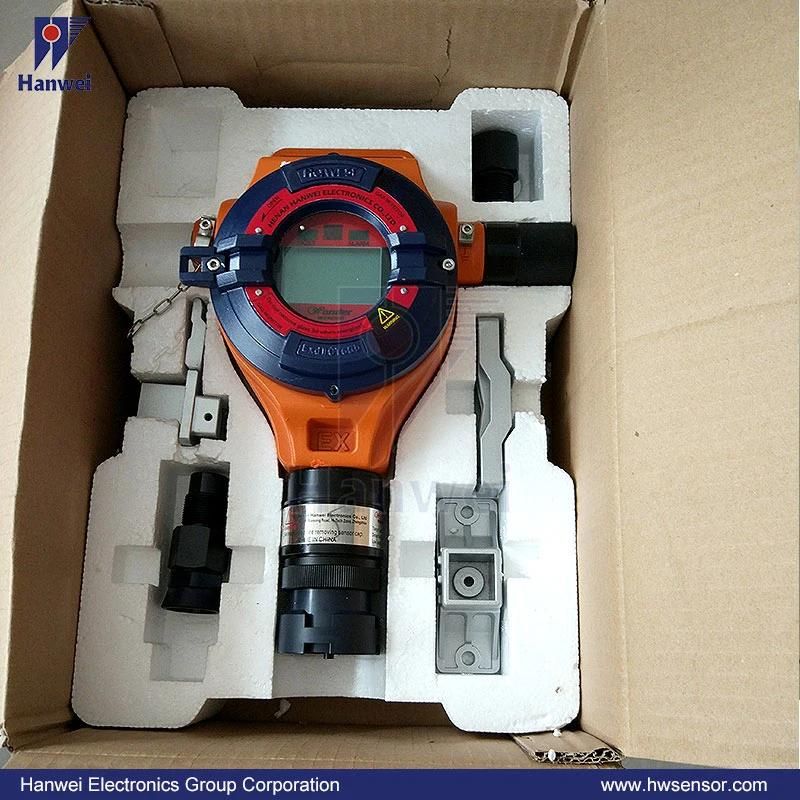

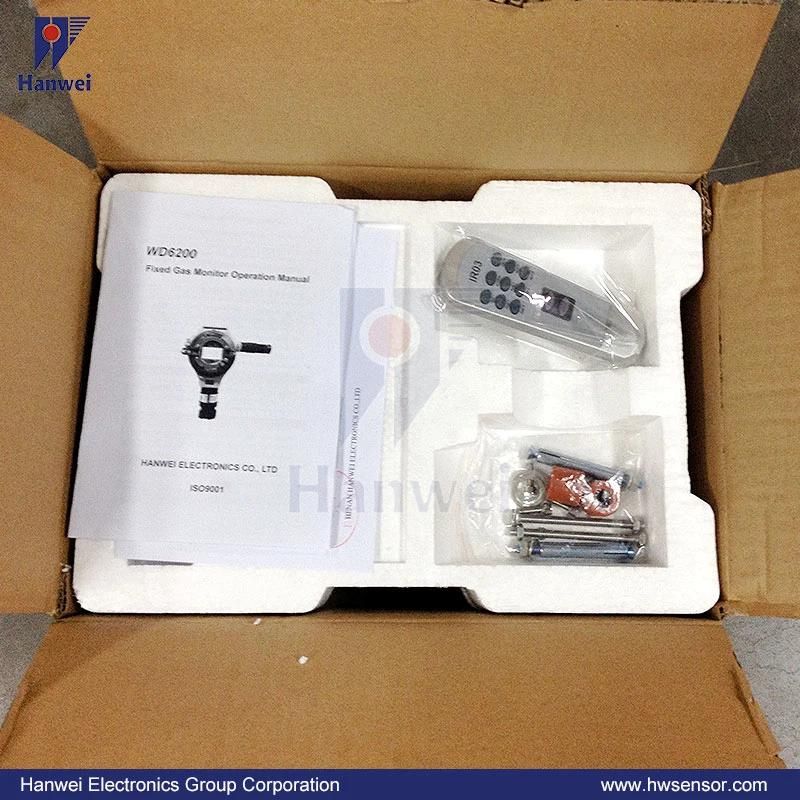

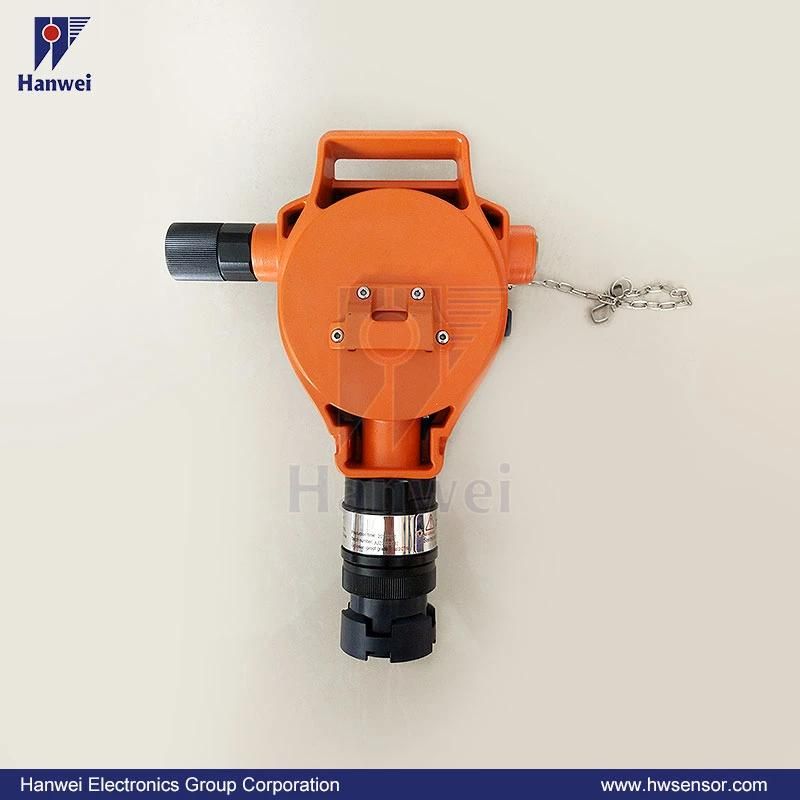

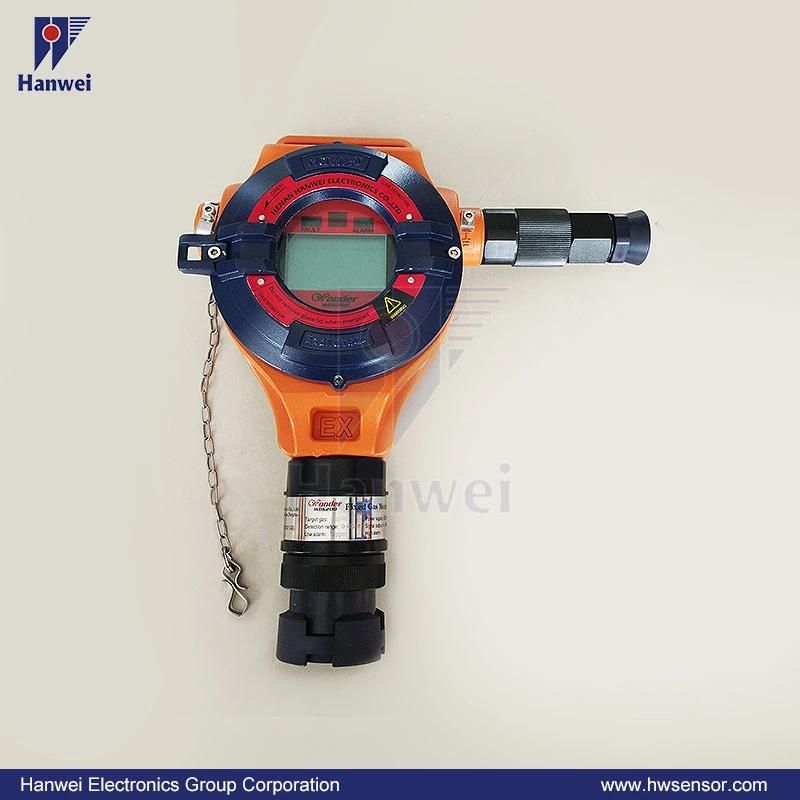

Product Pictures










FAQ:
Q1: Why do you choose our company?
A1: We are a professional manufacturer, We have seasoned engineers with 20 years' experience in gas detection field.  so we can offer products of the same quality at the best prices.

Q2: Can I have a sample order?
A2: The sample order to test are welcomed at the first time.

Q3: What certification do you have?
A3: CE, EN, BSI, UL, ISOD and etc.

Q4: How do I get price information?
A4: Sales representatives are responsible for providing detailed price information within 1 workday after get your inquiry.

Q5: If I order a large quantity, what's the best price?
A5: Please send the detailed enquiry to us, including item model number, quantity for each item, quality requirement, Logo and payment terms etc. We will make an accurate quotation to you at the earliest time.
