• Model NO.：GT-WD2200
• Model No：Gt-Wd2200
• Sensor Type：Smart Sensor Module
• Measuring Accuracy：±5%F.S.
• Signal Output：4-20mA Signal or RS485 Signal
• Working Method：Natural Diffusion
• Working Voltage：DC24V±25%
• Ingress Protection：IP65
• Explosive Proof：Ex D Iic T6
• Dimension and Weight：174 X 220 X 105mm, About 2kg
• Mounting Type：Wall Mounted
• Transport Package：Carton
• Origin：China Mainland
• Production Capacity：2000PCS

Basic Info.

Model NO. GT-WD2200 Model No Gt-Wd2200 Sensor Type Smart Sensor Module Measuring Accuracy ±5%F.S. Signal Output 4-20mA Signal or RS485 Signal Working Method Natural Diffusion Working Voltage DC24V±25% Ingress Protection IP65 Explosive Proof Ex D Iic T6 Dimension and Weight 174 X 220 X 105mm, About 2kg Mounting Type Wall Mounted Transport Package Carton Origin China Mainland Production Capacity 2000PCS

Product Description

Description

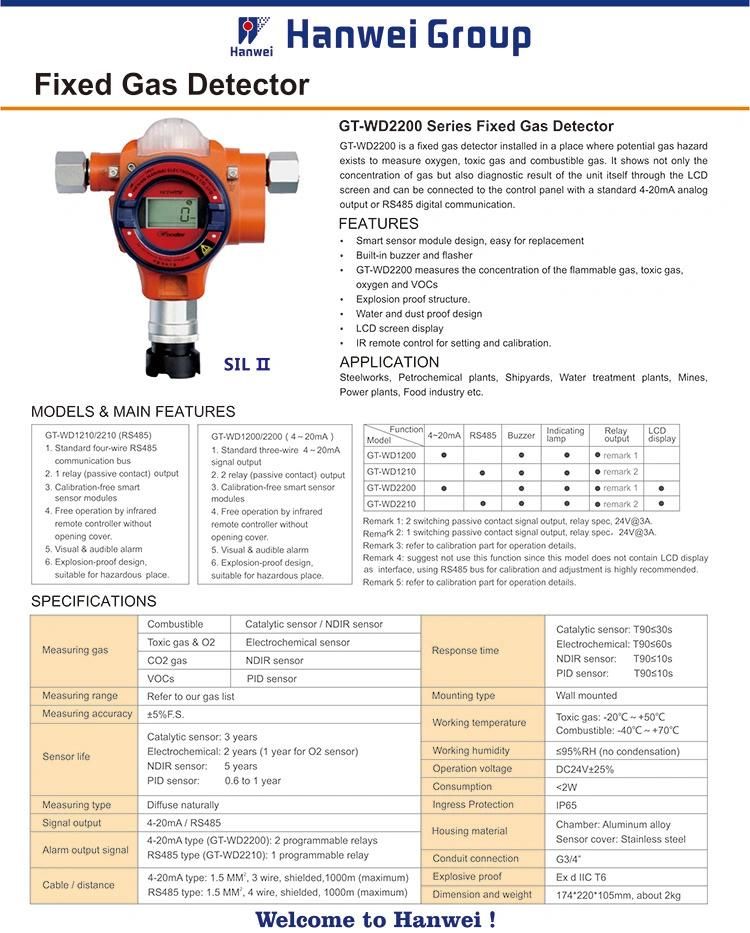

GT-WD2200 is a fixed gas detector installed in a place where potential gas hazard exists to measure oxygen, toxic gas and combustible gas. It shows not only the concentration of gas but also diagnostic result of the unit itself through the LCD screen and can be connected to the control panel with a standard 4-20mA analog output or RS485 digital communication.

Applications
Steelworks, Petrochemical plants, Shipyards, Water treatment plants, Mines, Power plants, Food industry etc.

Features
Smart sensor module design, easy for replacement
Built-in buzzer and flasher
GT-WD2200 measures the concentration of the flammable gas, toxic gas, oxygen and VOCs
Explosion proof structure
Water and dust proof design
LCD screen display
IR remote control for setting and calibration.

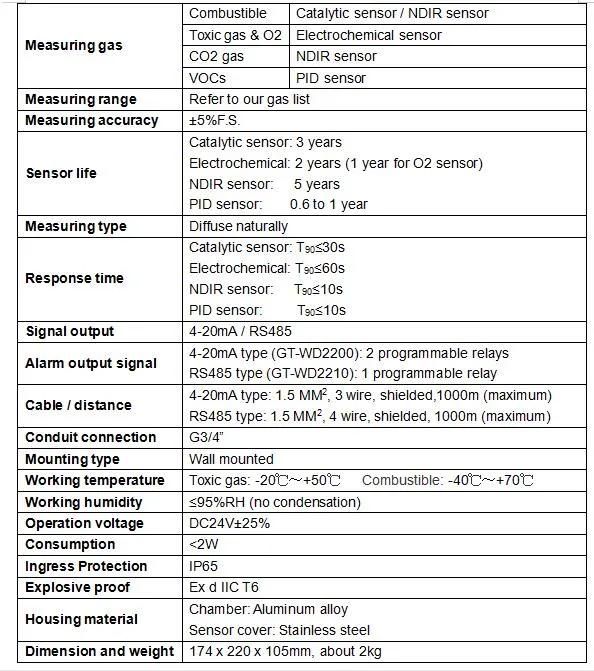

Technical Data

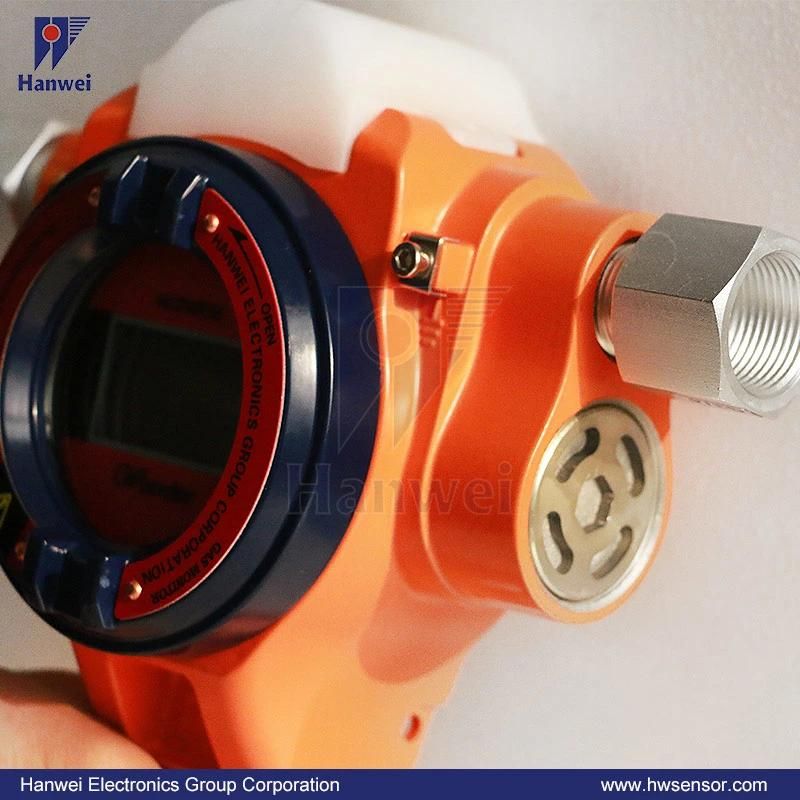

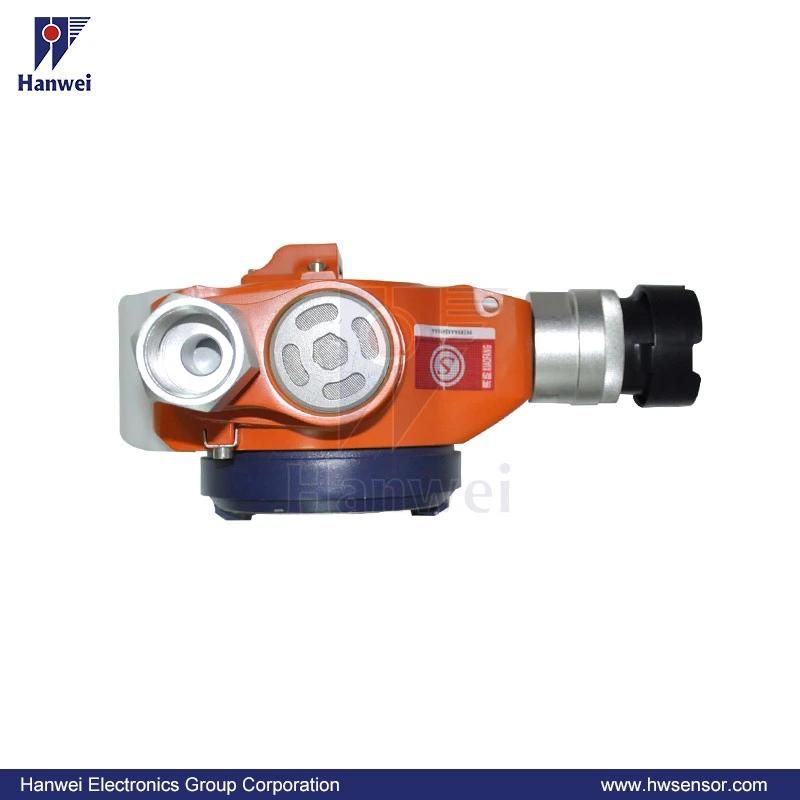

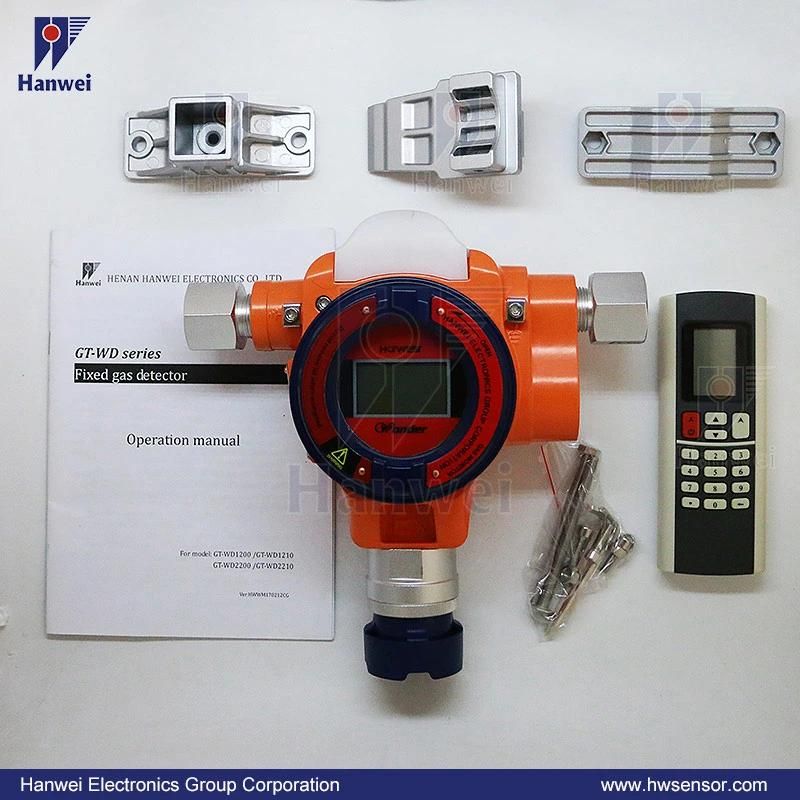

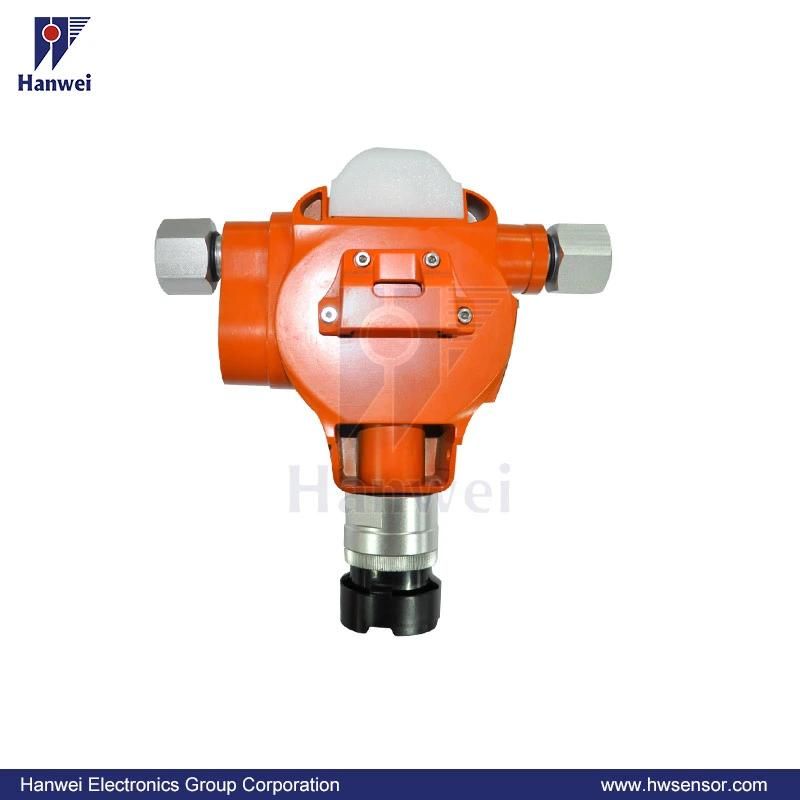

Product Pictures









FAQ:
Q1: Why do you choose our company?
A1: We are a professional manufacturer, We have seasoned engineers with 20 years' experience in gas detection field.  so we can offer products of the same quality at the best prices.

Q2: Can I have a sample order?
A2: The sample order to test are welcomed at the first time.

Q3: What certification do you have?
A3: CE, EN, BSI, UL, ISOD and etc.

Q4: How do I get price information?
A4: Sales representatives are responsible for providing detailed price information within 1 workday after get your inquiry.

Q5: If I order a large quantity, what's the best price?
A5: Please send the detailed enquiry to us, including item model number, quantity for each item, quality requirement, Logo and payment terms etc. We will make an accurate quotation to you at the earliest time.
