• Model NO.：WD6200-IR
• Model No：Wd6200
• Sensor Type：Catalytic or Electrochemical or Infrared
• Accuracy：±5%Fs
• Signal Output：4-20mA
• Consumption：≤5W
• Sampling Method：Natural Diffusion
• Protection Grade：IP65
• Dimension：293X263X108mm
• Weight：About 2.7kg
• Transport Package：Carton
• Origin：China Mainland
• Production Capacity：2000PCS

Basic Info.

Model NO. WD6200-IR Model No Wd6200 Sensor Type Catalytic or Electrochemical or Infrared Accuracy ±5%Fs Signal Output 4-20mA Consumption ≤5W Sampling Method Natural Diffusion Protection Grade IP65 Dimension 293X263X108mm Weight About 2.7kg Transport Package Carton Origin China Mainland Production Capacity 2000PCS

Product Description

Description

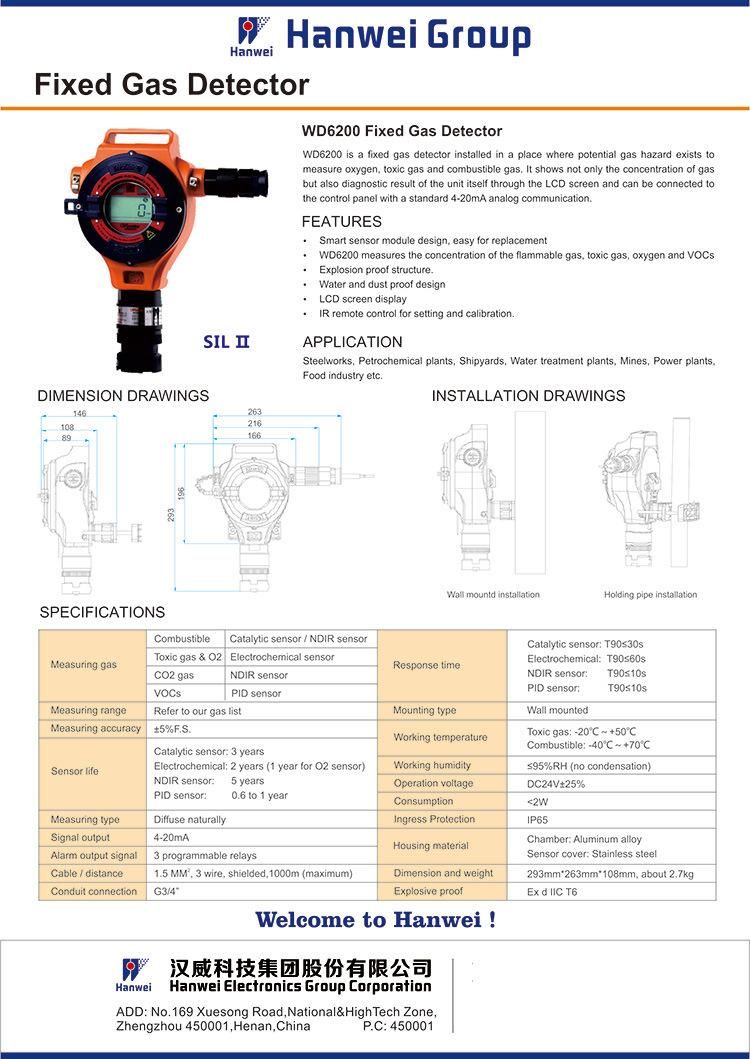

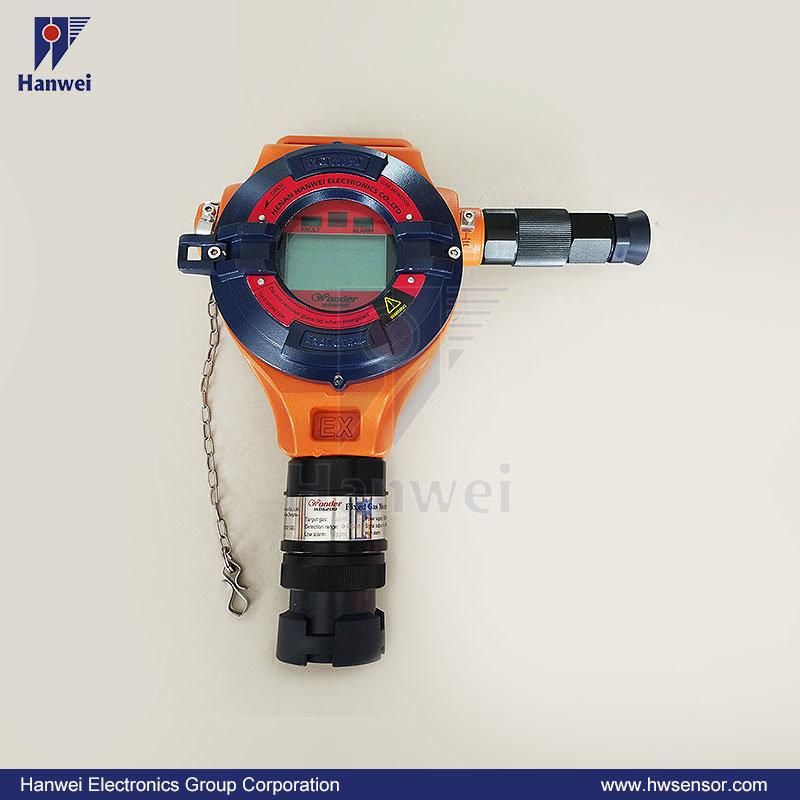

WD6200-IR Fixed Gas Detector is designed for detecting methane (CH4). It features a double beam IR sensor that effectively reduce the zero drift to the minimum, and extends the maintenance intervals. The detector enjoys better gas selectivity, stability, longer life span, and wider application over detector with regular IR sensor. It shows not only the concentration of gas but also diagnostic result of the unit itself through the LCD screen and can be connected to the control panel with a standard 4-20mA analog communication.

Applications
Oil and gas industry

Features
Double beam infrared technology, good stability
High accuracy, longer lifespan
4-20mA signal output
3 relay output for low alarm, high alarm and fault alert
LCD display, easy to read
Remote controller for setting, easy operation
Special installation accessories, easy installation
Smart sensor module design, easy maintenance
Sensor with heating function, excellent moisture and heat resistance

Technical Data
Sensor Type: Catalytic or electrochemical or infrared
Working Method: Natural diffusion
Working Voltage: DC24V±25%
Consumption: ≤5W
Accuracy: ≤±5%FS
Indication: LCM screen
Response Time (t90): ≤30s (LEL)/ ≤60s (Toxic gas / O2)
Temperature: -40ºC~70ºC (LEL) / -20ºC~50ºC (toxic gas / O2)
Humidity: ≤95%RH
Protection Grade: IP65
Signal Output: 4-20mA
Cable required:
≥1.5mm2 × 3 core cable (420mA type)
≥1.5mm2 × 4 core cable (RS485 type)
Distance to the panel: ≤1000m
Sensor life:
Catalytic: 3 years, Electrochemical: 2 years, Infrared: ≥ 5 years
Dimensions and Weight: 293mm×263mm×108mm, about 2.7kg

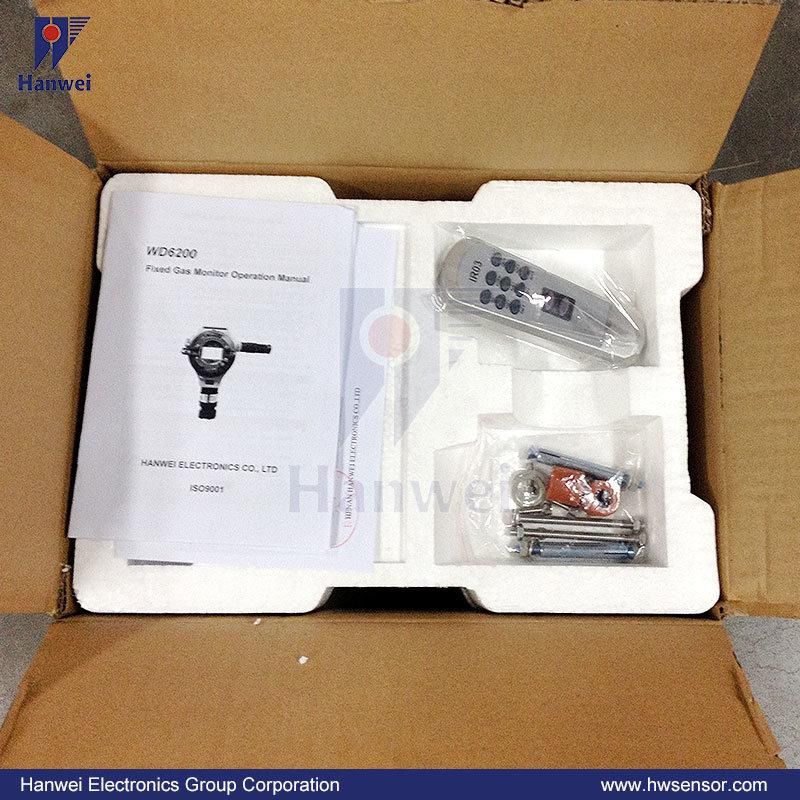

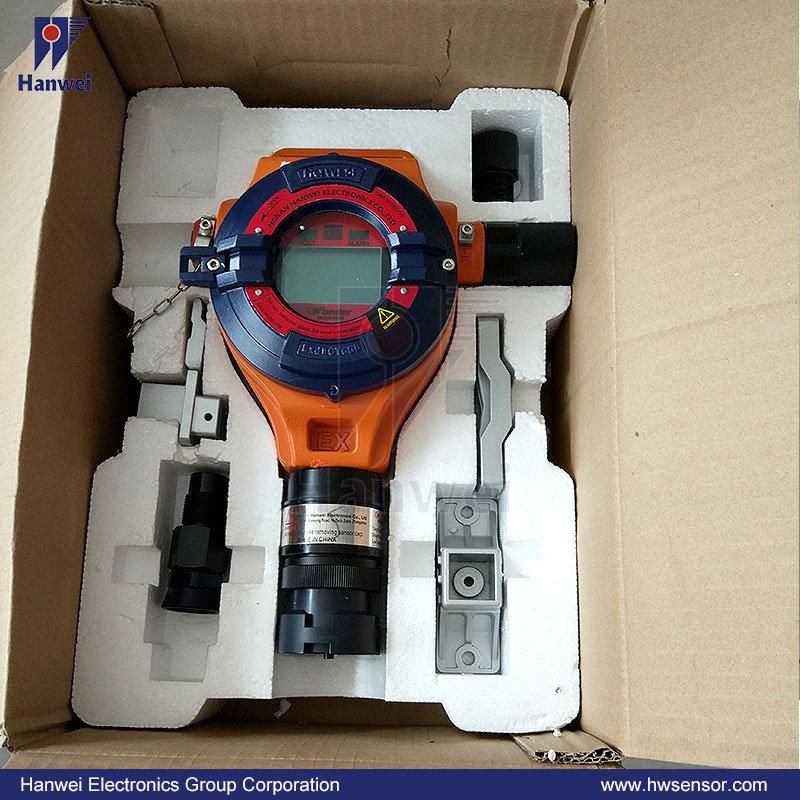

Product Pictures










FAQ:
Q1: Why do you choose our company?
A1: We are a professional manufacturer, We have seasoned engineers with 20 years' experience in gas detection field.  so we can offer products of the same quality at the best prices.

Q2: Can I have a sample order?
A2: The sample order to test are welcomed at the first time.

Q3: What certification do you have?
A3: CE, EN, BSI, UL, ISOD and etc.

Q4: How do I get price information?
A4: Sales representatives are responsible for providing detailed price information within 1 workday after get your inquiry.

Q5: If I order a large quantity, what's the best price?
A5: Please send the detailed enquiry to us, including item model number, quantity for each item, quality requirement, Logo and payment terms etc. We will make an accurate quotation to you at the earliest time.
