Tp-6A Digital Moisture Lab Testing Equipment/Karl Fischer Water Content Titration Apparatus
Chongqing TOP Oil Purifier Co., Ltd.- Type：Karl Fischer Moisture Meter
- Analysis Method：Physical Analysis
- Portable：Portable
- Chemical Analysis Type：Karl Fischer Method
- Operating Mode：Touch Screen
- Transport Package：Standard Wooden Case
Base Info
- Model NO.：TP-6A
- Specification：390*270*190mm
- Trademark：TOP OIL TESTER
- Origin：Chongqing
- HS Code：84212990
Description
electrolyte of lithium battery.
Feature
1. Adopts advanced MPU auto-control system, direct A/D conversion of testing electrode data
2. Completely closed titration system avoids direct touch between people and agent as well as influence of environmental humidity.
3. Auto-control and compensation of electrical current via MCU contributes to quick balance of reagent.
4. Highlighted six-digit Nixie tube display, with long service lifetime, high luminance and 0.1 microgram' sensitivity.
5. Stirring speed is adjustable and steerable via buttons; breakdown can be self-checked via buttons.
6. Electrolysis and testing indicator lights indicates testing status.
7. 400mA electrolysis current is automatically controlled, which greatly improves sensitivity and accuracy.
8. Advantages of sample auto-testing and direct display of results.
Technical parameter
Method of display: Highlighted six-digit Nixie tube display
Method of Testing: Karl Fischer Coulometry Method
Testing Range: 1ugH2O-100mgH2O
Moisture Content Range: 0.0001%(1ppm)-100%
Senstivity: 0.1ugH2O
End-point Indication: Voice Warning/end-point light indication
Accuracy: 3ugH20-1mgH2O, deviation: ≤0.3% of indications
More than 1mgH2O, deviation: ≤0.5% of indications(exclude deviation of sample injection)
Electrolysis Current: Auto-control within 400mA
Self-checking: Breakdown self-checking button
Drift Compensation: Auto-control via MPU
Stirring Speed: Steerable
Dimension: 350×250×160mm
Working Environment: Temperature: 5ºC-40ºC
Power Consumption: <40W
Power Supply: AC220V±10% 50HZ±2.5HZ
Weight: About 6kg

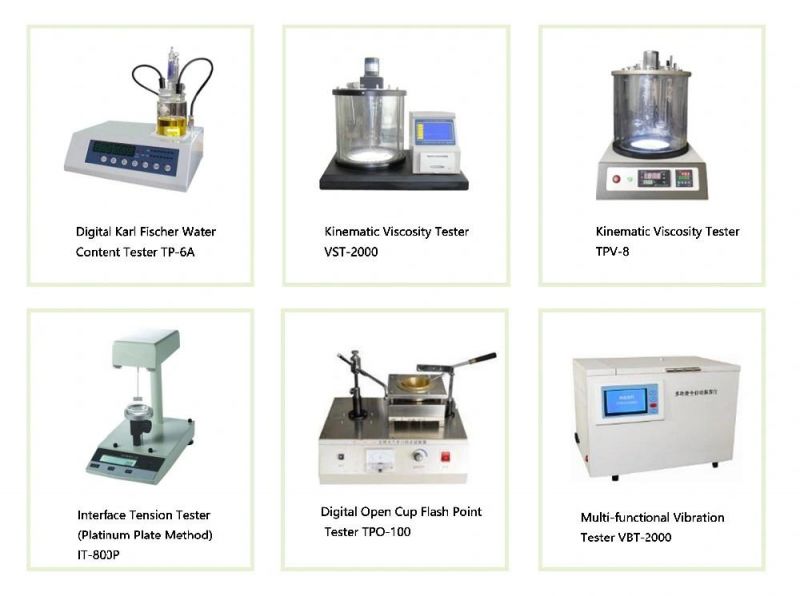

Related product
Company profile
Chongqing TOP Oil Purifier Co.,Ltd, established in 2 0 1 2 , is a professional manufacturer engaged in the research, development, production, sale and service of oil purifiers and various related testers.We are located in Chongqing China - a southwest electromechanical manufacturing center as well as national municipality, which is one of the most well-known oil purifier manufacturers in southwest China. Dedicated to strict quality control and thoughtful customer service, our experienced staff are always available to discuss your requirements and ensure full customer satisfaction. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and long service life. In addition, Our company has won C E,S G S certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Australia, Canada, USA, South Africa , Asia etc.. Our company holds the managerial idea that " Honest treatment,Sincere Communication,Reliable Quality and Service Commitment", and tries its best to do well at any aspect from each part, each point of procedure of manufacturing to final inspection, packing and shipment. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.
TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.
Packing and delivery
After-sales service
* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
