• Model NO.：JKWS-2
• Operating Mode：Touch Screen
• Power Supply：AC100V~240V , 50Hz
• Measuring Range：3ug-100mg
• Largest Electrolytic Speed：40 Ug,S
• Largest Power：<40W
• Resolution：0.1ug
• Humdity：≤85%
• Transport Package：Wooden Box with Foam Inside
• Specification：340*295*155 mm
• Origin：China
• HS Code：9027809900
• Production Capacity：500 Set,Month

Basic Info.

Model NO. JKWS-2 Operating Mode Touch Screen Power Supply AC100V~240V / 50Hz Measuring Range 3ug-100mg Largest Electrolytic Speed 40 Ug/S Largest Power <40W Resolution 0.1ug Humdity ≤85% Transport Package Wooden Box with Foam Inside Specification 340*295*155 mm Origin China HS Code 9027809900 Production Capacity 500 Set/Month

Product Description

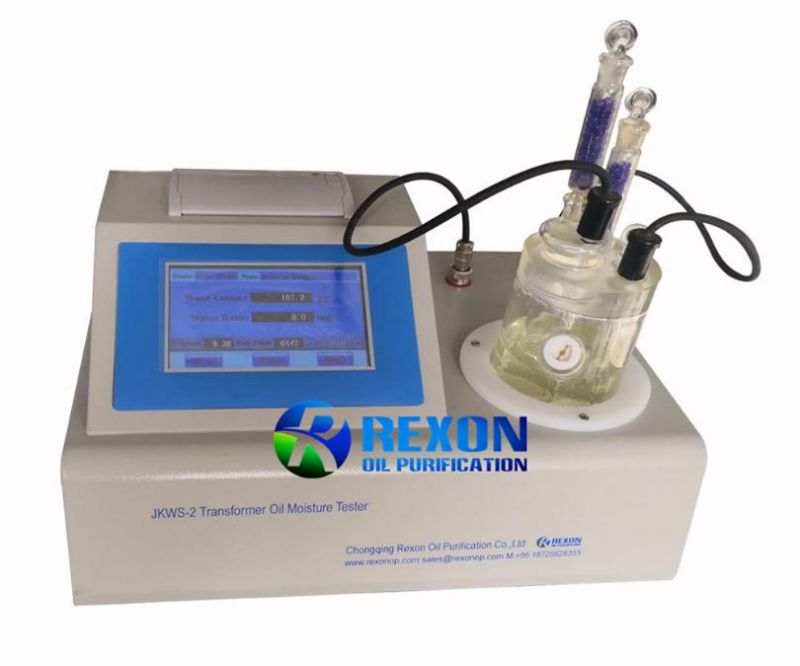

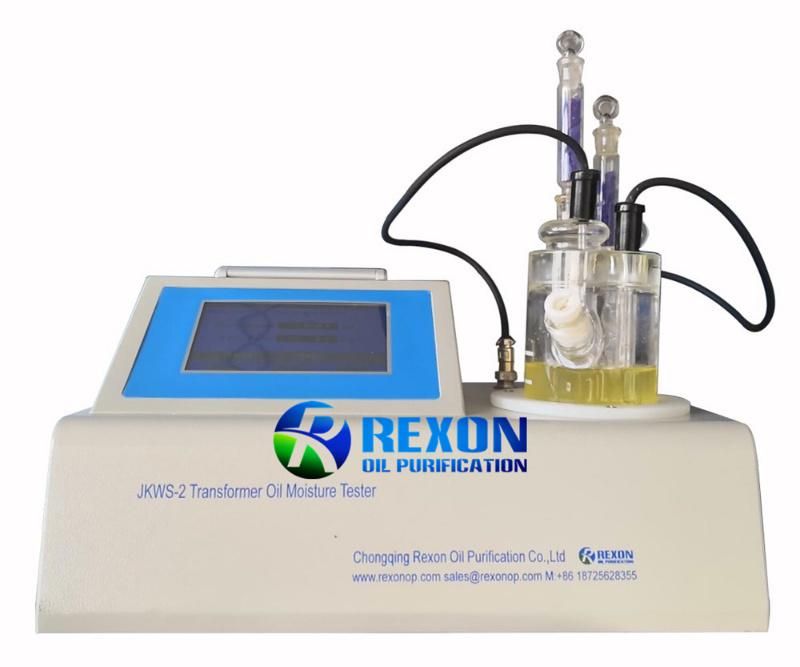

Portable Karl Fischer Transformer Oil Moisture Tester Oil Analyser




Product Description:

Karl Fischer Coulomb titration is the most reliable method to detect trace moisture for different substances, which was utilized successfully by JKWS-2 trace moisture meter. What's important, this instrument is able to work more reliably and conveniently by using the most advanced control circuit and 32 bit embedded microcontroller processor as the master control core and utilizing embedded mini operating system. Character with fast analyzing speed, simple operation, high precision and strong automatism, the trace moisture meter has been widely used in the industry of petroleum, chemical, power, railway, pesticide, medicine and environmental protection.

Features:

Utilizing 32 bit embedded microcontroller processor as the master control core and embedded mini operating system.

Constant voltage detection,high precision,high measuring speed,stable and reliable.

Simple operation and convenient digital calculation due to color touch screen and full digital keyboard.

Four calculation formulas are included, which can meet the different requirement of customer.

Miniature thermal printer,with time recording,make searching more convenient.

A new shape based on ergonomic design

Creative and optimal operating software will bring a different touch experience for you.

Technical parameters

• Titration method:Coulometric titration(Coulomb analysis)
• Display:Color LCD touch screen
• Electrolytic current control:0~400mA automatic control
• Measurement scope:3ug~100mg
• Sensitive valve:0.1µg H2O
• Accuracy:10µg~1000µg±3µg, more than 1mg but not greater than 0.3%
• Printer:Miniature thermal printer
• Power supply:220V±10%,50Hz
• Power:<40W
• Ambient temperature:5~40ºC
• Ambient humidity:≤ 85%
• External dimension:340mm×295mm×155mm
• Weight:About 5.5kg

Structure characteristics
Mainframe of instrument(please see figure 1 and 2):

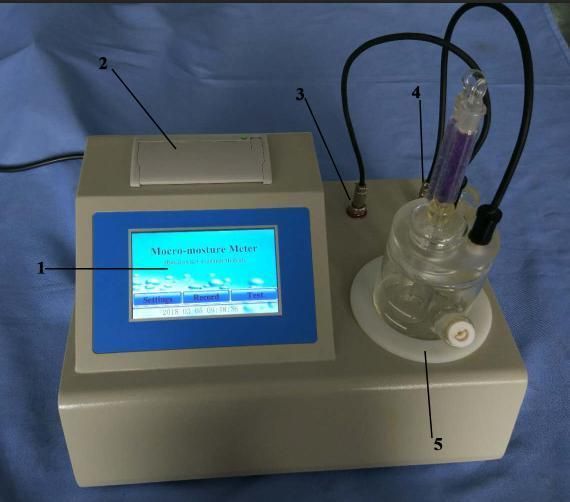

                                   Figure 1

1. Color touch screen             2. Printer
3. Electrolytic electrode socket     4. Measuring electrode socket
5. Electrolytic tank socket

              Figure 2

7. RS232 Interface      8. Power socket and integrated switch

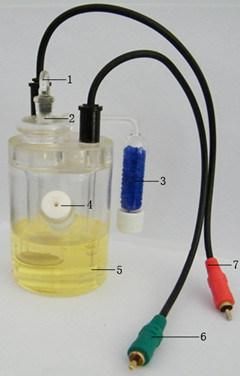

Electrolytic tank schematic diagram:

                            Figure 3

1. Grinding plug
2. Cathode compartment
3. Drying tube
4. Sample cock
5. Stirrer
6. Measuring electrode
7. Electrolytic electrode

Other Machines We Also Supply:
For Insulating Oil (transformer oil, mutual inductor oil, valve oil and so on)

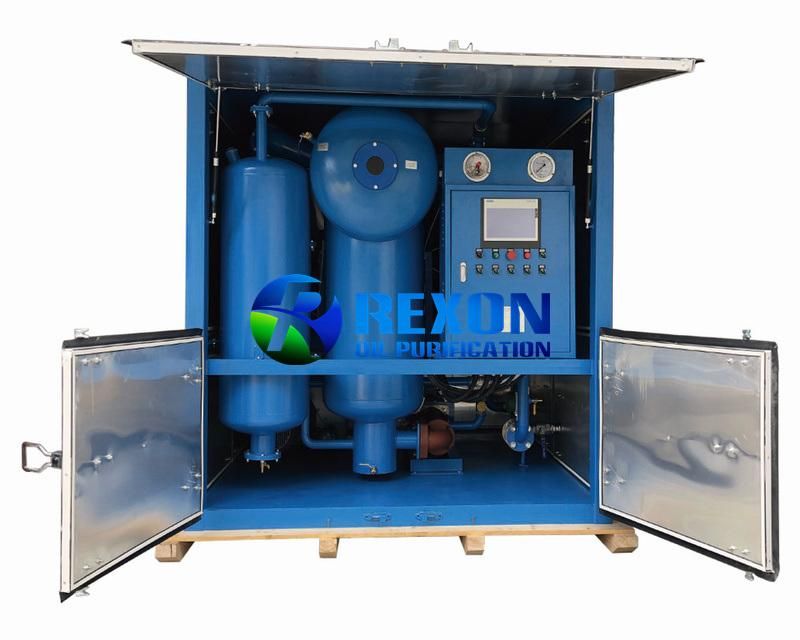

-Highly Effective Vacuum Oil Purifier
-Computer-Tested Highly Effective Vacuum Oil Purifier (ZY with oil tester)
-Mobile Type Multi-function Transformer Oil Treatment Machine
-Automatic Double-Stage Highly Effective Vacuum Transformer Oil Purifier
-Ultra-High Voltage Oil Regeneration Treatment



For Lubricant Oil (hydraulic oil, turbine oil, gear oil, diesel, heating oil and so on)

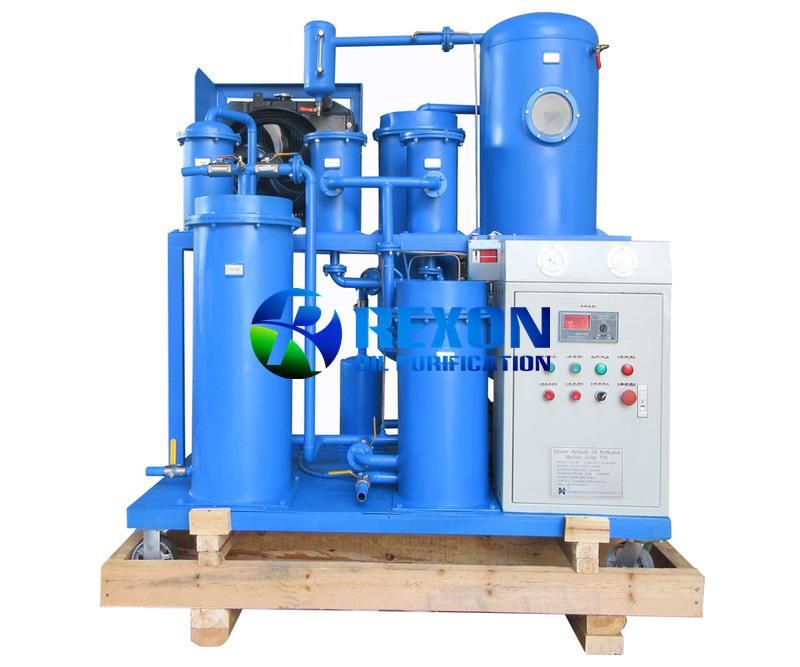

-Multi-function Lubricating Oil Purifier
-Highly Effective Vacuum Turbine Oil Purifier
-Hydraulic Regeneration Oil Purifier
-Coalescence-Separation Diesel Oil /Light Oil Purifier
-Centrifugal Vacuum Oil Purifier
-Phosphate Ester Fire-Resistant Oil Purifier



Other Kind Plants related:
-Highly Effective Vacuum Engine Oil Purification System
-Portable Oil Purifier

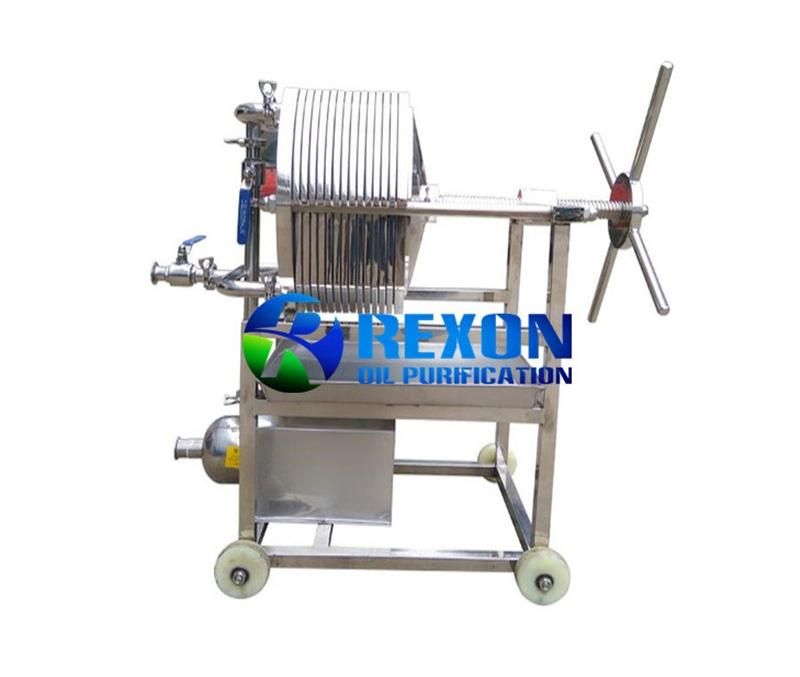

-Plate Pressure Oil Purifier
-Highly Effective Oil Filling Machine
-Small Portable Edible Oil Filtration Machine

Oil Testers:

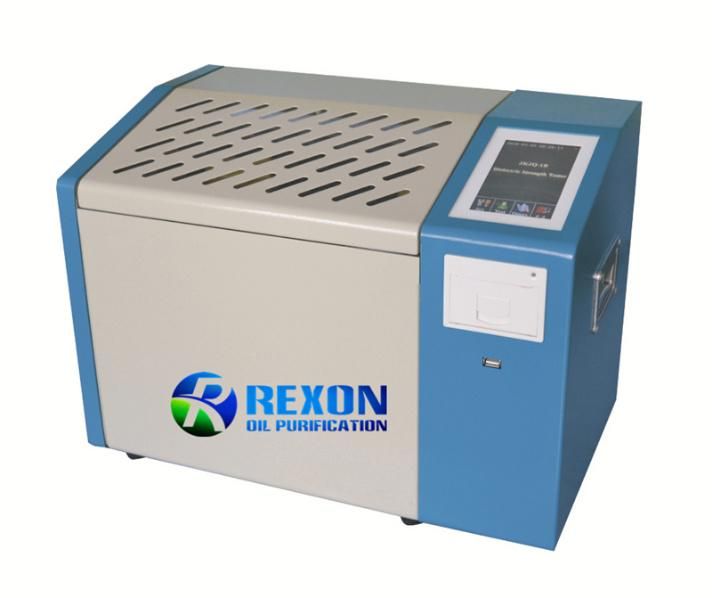

-Transformer Oil BDV (Breakdown Voltage) Tester
