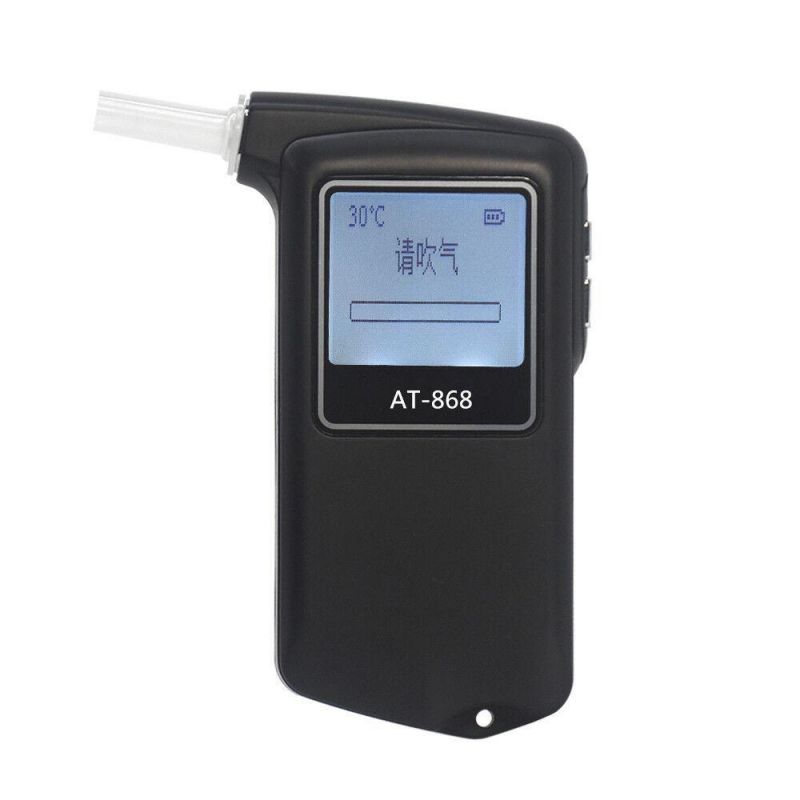

• Model NO.：AT-868
• Transport Package：Gift Box with 60PCS,CTN, Carton Size 45*47*32cm
• Specification：ABS material
• Trademark：OEM
• Origin：China
• Production Capacity：5000 Piece Per Month

ModelAT-868Sensorelectrochemical sensorAmbient conditionsOperation:5°C to 40°CRelative Humidity: ≤95% DewsStorage:-10 to 50°CTest range0.000 to 1.990 ‰BAC
0.000 to 0.199 % BAC
0.00-0.99mg/l BrAC
0.000 to 199 mg/l00ml (BAC)Accuracy-0.05% BAC;±0.5‰ BAC; ±0.05 mg/L; ±10mg/100mlAlarm point0.050 %BAC
0.500 ‰BAC
50 mg/100 ml
0.250 mg/L (BrAC)Power input3 x 1.5 v "AAA" alkaline batteries Weights65.9g(excluding batteries)BacklightBlueDimension111(L)×62(W)×23(H)mmResponse time<5sWarm-up time<10sOperating current≤120MAMouthpiece UseCertficateCE & ROHS

Product features :


1.High accurate, fuel cell sensor

2.Big screen display, 3 color LED light display.

3.5 test units for options:

%BAC; ‰BAC; g/L; mg/L; mg/100ml

4.Loud sound alarm.

5.Auto power off.

6.10 test records for checking

Specifications

1.Fuel cell alcohol sensor.

2.Test range : 0.000 ~ 0.199 %BAC

                         0.000 ~ 1.990‰BAC (1.990 g/L)

                         0.000 ~ 0.995 mg/L

                         0.000 ~ 199 mg/100ml

3.Alarm point : 0.050 %BAC; 0.500‰BAC(0.500 g/L);

0.250 mg/L (BrAC); 50mg/100ml

4.Accuracy : under alarm point : ± 0.010 %BAC

± 0.100 ‰BAC (0.1 g/L)

± 0.05 mg/L; ± 10 mg

5.Response time : < 5 s

6.Warm up time : 10 ~ 60 s

7.Working voltage : 3 x "AAA" alkaline batteries

8.Working electric current : ≤ 120mA

9.Working temperature condition : -10 ºC ~ 50 ºC

10.Display : 3 LED light reminding
