• Model NO.：ORP-2096
• Chemical Analysis Type：Toluene Method
• Operating Mode：Touch Screen
• Heating Mode：Standard Heating
• Off Mode：Automatic
• Dimension of The Hole：92X92mm
• Measuring Range：-L999~ +1999mv
• Ceurrent Output：4~20mA
• Transport Package：PP Box, Paper Box, Seaworthy Box
• Specification：SGS
• Trademark：BOQU
• Origin：Shanghai
• HS Code：9027809900
• Production Capacity：1000piece,Month

Basic Info.

Model NO. ORP-2096 Chemical Analysis Type Toluene Method Operating Mode Touch Screen Heating Mode Standard Heating Off Mode Automatic Dimension of The Hole 92X92mm Measuring Range -L999~ +1999mv Ceurrent Output 4~20mA Transport Package PP Box, Paper Box, Seaworthy Box Specification SGS Trademark BOQU Origin Shanghai HS Code 9027809900 Production Capacity 1000piece/Month

Product Description

Description

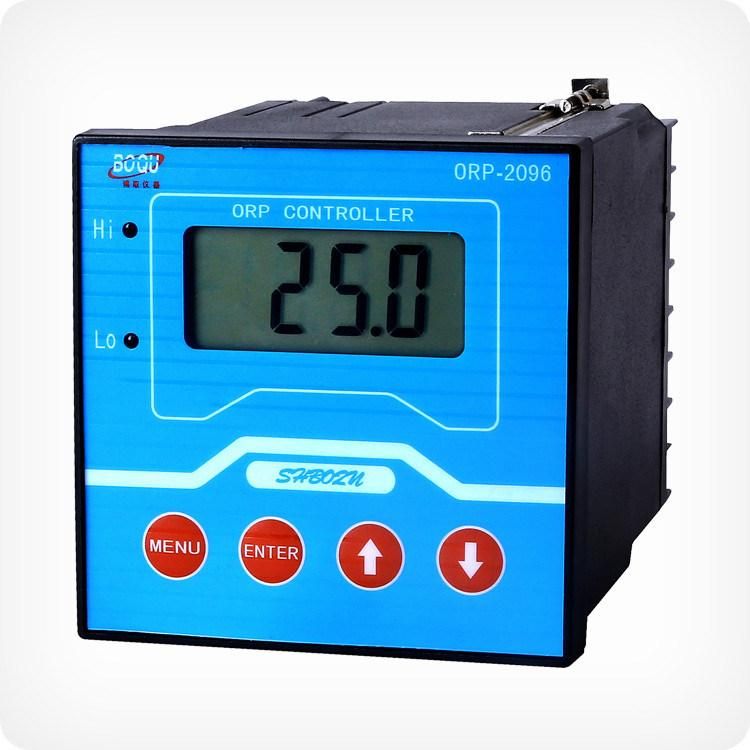

    ORP-2096 Industrial Online Meter is a precision meter for measurement ORP values. With complete functions, stable performance, simple operation and other advantages, they are optimal instruments for industrial measurement and control of ORP value.
    Various ORP electrodes can be used in ORP-2096 series of instruments.

Features
LCD display, high-performance CPU chip, high-precision AD conversion technology and SMTchip
technology,Multi-parameter, temperature compensation, automatic range conversion, high precision
and repeatability
The current output and alarm relay adopt optoelectronic isolating technology, strong interference immunity and the capacity of long-distance transmission.
Isolated alarming signal output, discretionary setting of upper and lower thresholds for alarming, and lagged cancellation of alarming.
US T1 chips; 96 x 96 world-class shell; world-famous brands for 90% parts;

Technical Indexes
1. Measuring range: -l999~ +1999mV,   Resolution: l mV
2. Accuracy: 1mV,±0.3ºC,            Stability:≤3mV/24h
3.ORP standard solution:6.86,4.01
4.Control range: -l999~ +1999mV
5. Automatic temperature compensation:0~100ºC
6. Manual temperature compensation:0~80ºC
7. Output signal: 4-20mA isolated protection output
8. Communication interface:RS485(Optional)
9. Output control mode :ON/OFF relay output contacts
10. Relay load: Maximum 240V 5A; Maximum l l5V 10A
11. Relay delay: Adjustable
12. Current output load:Max.750Ω
13.Signal impedance input: ≥1x1012Ω
14. Insulation resistance:≥20M
15. Working voltage:220V±20V,50Hz±0.5Hz
16.Overall dimension: 96(length)x96(width)x115(depth)mm
17.Dimension of the hole: 92x92mm
18.Weight:0.5kg
19. Working condition:
     Ambient temperature:0~60ºC
     Air relative humidity:≤90%
     Except for the earth magnetic field, there is no interference of other strong magnetic field around.
