Formaldehyde Gas Detection Recorder with Ce
NANBEI INSTRUMENT LIMITED- Brand:Nanbei
- Customized:Customized
- Portable:Portable
- Certification:CE
- Gas:Formaldehyde
- Type:Laser Gas Analyzer
Base Info
- Model NO.:AP-B-CH2O
- Test Gas:Formaldehyde
- Sampling Mode:Pumping
- Response Time:Depond on Sensor
- Protection Rate:IP64
- Power Supply:Lithium Battery,6000mA
- Max Continuous Work Time:More Than 120 Hours
- Communication Interface:USB
- Work Humidity:0 ~ 95% Rh [No Condensation]
- Transport Package:Wooden Case
- Specification:CE
- Trademark:NANBEI
- Origin:China
- HS Code:9027100090
- Production Capacity:1000 Pieces,Month
Description
Basic Info.
Model NO. AP-B-CH2O Test Gas Formaldehyde Sampling Mode Pumping Response Time Depond on Sensor Protection Rate IP64 Power Supply Lithium Battery,6000mA Max Continuous Work Time More Than 120 Hours Communication Interface USB Work Humidity 0 ~ 95% Rh [No Condensation] Transport Package Wooden Case Specification CE Trademark NANBEI Origin China HS Code 9027100090 Production Capacity 1000 Pieces/MonthProduct Description
Formaldehyde Gas Detection Recorder with CeBrief introduct of Gas detector
Portable formaldehyde detection recorder is used to boot the portable formaldehyde gas detector in a normal working condition, and then diverted to the portable formaldehyde gas detection instrument head part, holding the anti-oxidation and corrosion of the probe.
Handle the probe to detect the required concentration of formaldehyde in the test environment. Such as looking for leaks, when you do not know where the leak, you can take the instrument to find the leak point, the highest concentration of the place is the leak. In terms of structure, it is a display head with the detection probe split a product, like hand-held mobile detection, can also be used as online desktop testing, more suitable for some specific places. Portable formaldehyde detection recorder also has a storage memory function, you can test the process of data per second record up to facilitate your follow-up detection of data query and computer printing.
Features of Gas detector:
32-bit high-speed microprocessors.
color LCD in English bilingual display.
The instrument uses 32 high-speed CPU, pump suction detection, well-known foreign brands of sensors, advanced circuit design and filtering technology to ensure the accuracy of the product.
(1) Portable formaldehyde detection recorder with pumping method.
(2) Portable formaldehyde detection recorder using internationally renowned brands of gas sensor components and IC components
(3) advanced filtering technology: years of experience in the development of gas detection products extracted from the filter technology for high-precision products to provide a technical guarantee.
100000 data can be stored, you can choose a second storage time, 10 seconds to store once, 1 minute storage time. And then connect the computer to print.
Large battery capacity with work life more than 120 hours.
Buzzer and led lights dual alarm,alarm point can be set by itself.
Automatic self-diagnosis function. When the device battery is too low, display failure, the sensor reaches the life or failure, hardware failure, etc. when the device will automatically alarm.
Name | Portable formaldehyde gas detector |
Test gas | formaldehyde |
Measuring range | 0-5/10/50ppm;0-7%VOL(100%LEL) |
Display unit | ppm,mg/m3, ppb,pphm,%VOL,%LEL |
Resolution | 0.01/0.1/1ppm |
Sampling mode | Pumping |
Accuracy | <=±1%FS |
Repeatability | ≤±1% |
Response time | Depond on sensor |
Recovery Time | Depend on sensor |
Protection rate | IP64 |
Alarm | Sound (≤70 decibels), light |
Power supply | lithium battery,6000mA |
Max continuous work time | More than 120hours |
Communication interface | USB |
Wireless communication | Support GPRS/ZIGBEE |
Auto self-diagnosis | System check: battery power, display, sensor, hardware failure, the user can set the alarm value |
Data storage | 100,000 groups,optional 1/1 second, 1/10 seconds, 1 time / 60 seconds |
Air pump flow | 200~300ml/min |
Zero drift | ≤±1% |
Weight | 460g |
Standard | GB15322.1-2003,GB3836.1-2010 GB3836.2-2010,GB3836.4-2010 |
Size | 180*112*81mm(L*W*H) ;Handle:30cm(handle length can be customized) |
Work temperature | -40 ºC ~ 70 ºC (catalytic combustion principle sensor) -40 ºC ~ 50 ºC (electrochemical) -20 ºC ~ 60 ºC (pid principle sensor) -20 ºC ~ 50 ºC (infrared / fluorescence gas sensor) -40 ºC ~ 70 ºC (thermal conductivity principle sensor) |
Work humidity | 0 ~ 95% RH [no condensation] |
Pressure | 1 ± 10% of atmospheric pressure |
FAQ
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
Pre-sale service
· 24hours online to ensure quick response to customers' inquiry or online message;
· Guide customers to choose the best suitable machine model;
· Offer detailed specification and competitive prices;
Contract execution
· Machine production will be arranged strictly according to the contract;
· Machine photos will be sent to you for inspection during production;
· Send customs clearance documents by DHL;
· Update latest news after delivery and prepare customs clearance;

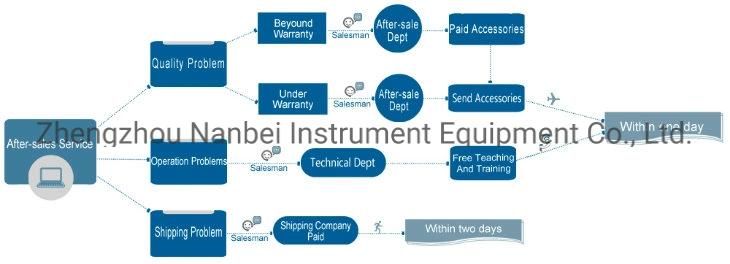

After-sale service
· 12 months warranty except for wear parts;
· Broken spare parts (except for wear parts) will be sent for free due to quality problems;
· In time response to customers technical problems;
· New products update for customers' reference
Our Company:
Since 2008, We have become a professional laboratory instrument manufacturer.
Since the establishment of the International Department in 2010, the products are exported to Europe, America and Asia and Africa!
Whether it is technology, factory area, multi-language sales. We are all professional!
Factory Show:
Certification:
Our products have international certifications such as SGS, CE, ISO!
Warranty And After-sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
