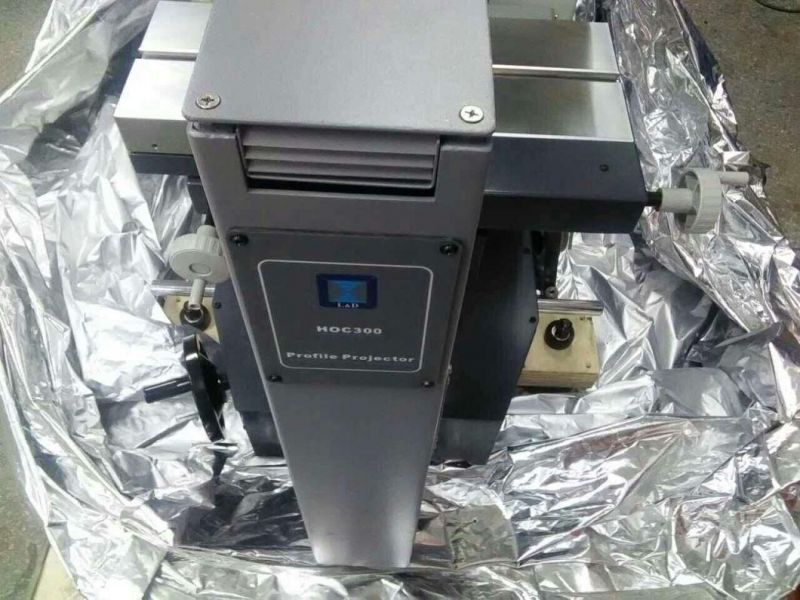

Large Screen Horizontal Profile Projector with Sharp Image (HOC300-2010)

Leader Precision Instrument Co., Ltd.
  • Item No.：Hoc300-2010
  • Working Table′ S Size(mm)：400*150mm
  • Stage Travel X-Axis：200mm
  • Stage Travel Y-Axis：75mm
  • Stage Travel Z-Axis：100mm(Focus)
  • Accuracy：(2.5+L,150) Micron

Base Info

  • Model NO.：HOC300-2010
  • Cooling：Fans
  • G. W/N. W：210kg,160kg
  • Dimension(L*W*H mm)：1090*585*1010 (mm)
  • Name：Horizontal Profile Projector
  • Transport Package：Standard Exporting Package
  • Specification：SGS
  • Trademark：Leader
  • Origin：Guangdong
  • HS Code：9031491000
  • Production Capacity：500 PCS,Year

Description

ScreenScreen Diameter: 300mmwith 4 film clipsScreen rotary range: 0° -360°Rotary angle resolution: 1' or 0.01°Digital ReadoutMC800 Counter with RS232 output (can be used to gather the data and measure the point, line, circle, angle and distance).IlluminationTransmission and reflection: 24V/150w-halogen lamp.PowerAC110-120v, 200-240v, single phase 50/60Hz Total power 400WCoolingFansG. W/N. W210KG/160KGDimension(L*W*H mm)1090*585*1010 (mm) Optional Delivery:
 Measuring SoftwareEdge DetectorCharts(3 kinds)HOC12-20X ObjectiveHOC12-50X ObjectiveHOC12-100X ObjectiveHolder ClampV-shape Clampswivel center supportMini-printerRotary tableCalibration Scale Standard Delivery:
 Digital Readout MC800HOC12-10X ObjectiveScreen ClampFoot-SwitchPower Cable  Light source Large Screen Horizontal Profile Projector with Sharp Image (HOC300-2010)Large Screen Horizontal Profile Projector with Sharp Image (HOC300-2010) Quality System

1. Establish the quality management system based on ISO9001, improve quality inspection, and ensure that all the finished products are qualified.

2. All our measuring machines are with CE certification

3. All our measuring machines are assembled and adjusted with linear accuracy, so that the instrument accuracy is guaranteed by hardware assembly and adjustment to the greatest extent.

4. We has provided professional and complete measurement solutions for many large and medium-sized enterprises at home and abroad, and
has won the trust of customers!

5. Our professional technical service team is familiar with the principle, structure, assembly, and software debugging of the instrument, freeing customers from worries!


After-sale Service

1. Free professional operation training

2. Warranty: 18 months instead of 12 months

3. Regularly upgrade of software is available free

4. Available lifetime technical support
