• Model NO.：LS0100-50B
• Scale Grating Pitch：20 Micron
• Scale Reference Point Pitch：50mm
• Operating Temperature：0 to 40
• Storage Temperature：-20 to 50
• Transport Package：Standard Exporting Package
• Specification：SGS
• Trademark：Leader
• Origin：Guangdong
• HS Code：9031499090
• Production Capacity：500 PCS,Year

Basic Info.

Model NO. LS0100-50B Scale Grating Pitch 20 Micron Scale Reference Point Pitch 50mm Operating Temperature 0 to 40 Storage Temperature -20 to 50 Transport Package Standard Exporting Package Specification SGS Trademark Leader Origin Guangdong HS Code 9031499090 Production Capacity 500 PCS/Year

Product Description

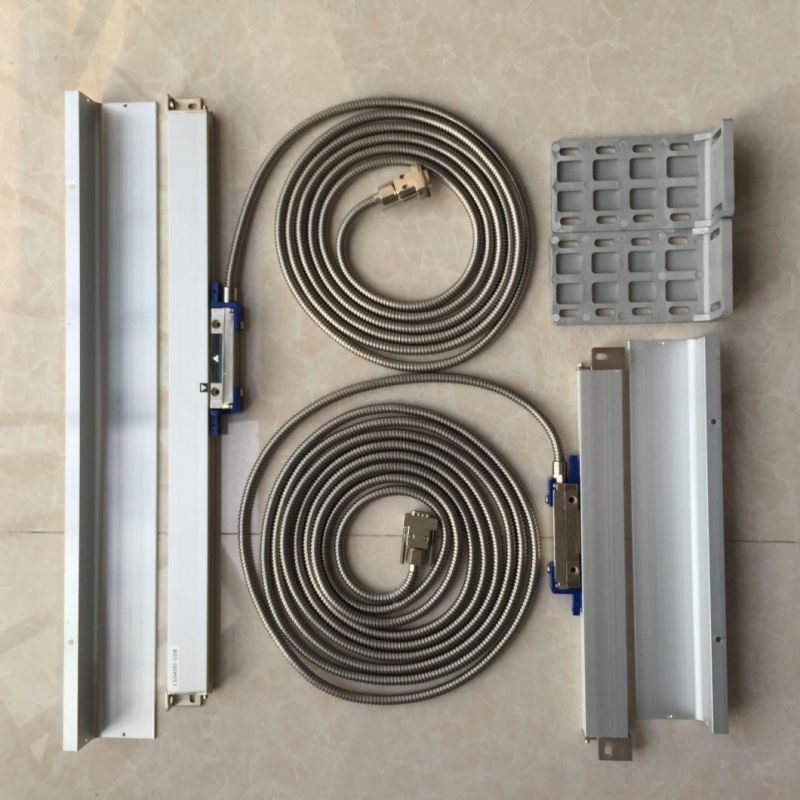

Linear Displacement Sensor (Slim Type)



Usage:
This type of Linear Scale is installed in small mounting space, which is suitable for grinder machines, XY tables, jigs, etc.

Features:
1. High accuracy optical glass
2. Scale reference points at a 50mm pitch to determine datum point for machining
3. Using 5 sets of bearing, assures excellent repeatability, positioning, good sliding and durability
4. Special process of aluminum alloy for water/oil proof and anti-dust
5. Suitable for milling, drilling and grinding machines, lathers, XY-tables, etc
6. Enhanced vibration resistance
7. Top quality rubber lips to avoid contamination
8. Easy installation and maintenance

Paramters:
1. Resolution: 0.005mm (standard); 0.001mm (optional)
2. Effective range(ER): 2-128"(50mm-3200mm)
3. Output signal: 5V, TTL (standard); RS422(optional)
4. Output wave form: Two 90° Phase-shifted sinusoidal signals
5. High accuracy: ± (5+L/200)µ M; L = Effective range (mm)
6. Max. Response Speed: 72M/min
7. Scale grating pitch: 20μm
8. Scale reference point pitch: 50mm
9. Operating temperature: 0 to 40 degree
10. Signal cable of the linear scale:
If the travle of the linear encoder is from 50mm to 900mm, it is 2m
If the ML of the linear encoder is 1000mm, it is 5m.

ResER	50mm	100mm	150mm	200m	250mm
0.005mm	LS0050-50B	LS0100-50B	LS0150-50B	LS0200-50B	LS0250-50B
0.001mm	LS0050-10B	LS0100-10B	LS0150-10B	LS0200-10B	LS0250-10B
ResER	300mm	350mm	400mm	450mm	500mm
0.005mm	LS0300-50B	LS0350-50B	LS0400-50B	LS0450-50B	LS0500-50B
0.001mm	LS0300-10B	LS0350-10B	LS0400-10B	LS0450-10B	LS0500-10B
ResER	550mm	600mm	650mm	700mm	750mm
0.005mm	LS0550-50B	LS0600-50B	LS0650-50B	LS0700-50B	LS0750-50B
0.001mm	LS0550-10B	LS0600-10B	LS0650-10B	LS0700-10B	LS0750-10B
ResER	800mm	850mm	900mm	950mm	1000mm
0.005mm	LS0800-50B	LS0850-50B	LS0900-50B	LS0950-50B	LS1000-50B
0.001mm	LS0800-10B	LS0850-10B	LS0900-10B	LS0950-10B	LS1000-10B
