• Model NO.：SA-M201
• OEM：Gas, Sensor, Function, Program, Software, Case
• Transport Package：Neutral
• Specification：0.5kg per product
• Trademark：Shiantech
• Origin：Beijing China
• Production Capacity：10000000PCS Per Month

Basic Info.

Model NO. SA-M201 OEM Gas, Sensor, Function, Program, Software, Case Transport Package Neutral Specification 0.5kg per product Trademark Shiantech Origin Beijing China Production Capacity 10000000PCS Per Month

Product Description

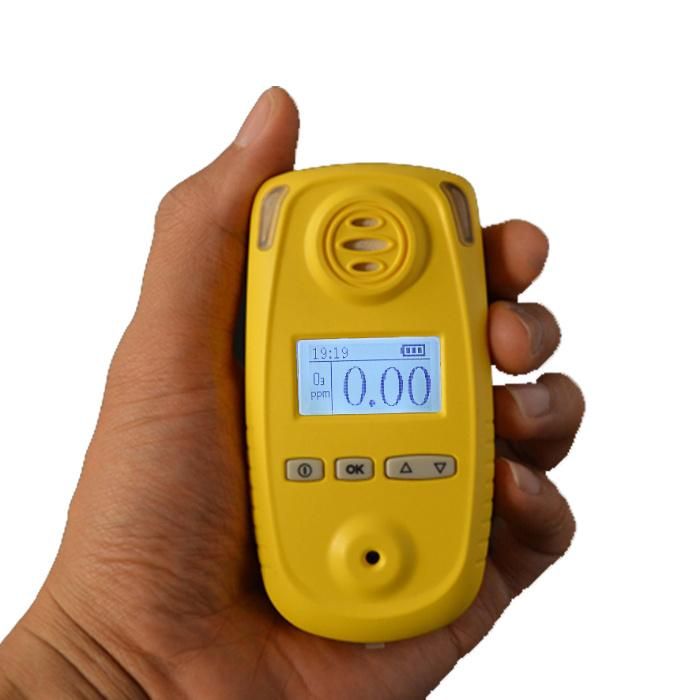

Portable Ozone Gas Detector O3 Gas Monitor for Personal Safety

Introduction:
Shiantech personal ozone gas monitor clearly warns of a present ozone hazard. This highly reliable unit features an extra-loud audible alarm (85 dB), flashing LED light bars, and built-in vibrator alert users to hazardous conditions. Multiple alarms include: LOW, HIGH, TWA and STEL, each with adjustable setpoints. The large, easy-to-read, backlit LCD display shows continuous, real-time gas concentration.

Protect your employees from ozone in their work environment. This handy, easy-to-use ozone detector allows daily monitoring and control of existing air pollutants.

Product Features:
1. Handheld, industry use, high sensitivity and accuracy

2. Intrinsically safe, Ex sign is Exibd I

3. Rugged ABS+PC case, heavy duty, crash resistant

4. High-capacity chip, 4 layers PCB board

5. Visual & audible alarm

6. High & low alarm point, fully adjustable

7. SETL & TWA alarm

8. Low battery alarm

9. Rechargeable battery

10. LCD large screen display with Real time of target gas concentration, clock and status of battery

11. With Stainless Steel belt clip
12. Support data logging function, optional
13. External air sampling pump is available for gas leak detection.



Application:

Ozone (O₃) is a triatomic molecule consisting of three oxygen atoms. It is an allotrope of oxygen that is much less stable than the diatomic O₂. Ground-level ozone is an air pollutant with harmful effects on the respiratory systems of animals.
The ozone layer in the upper atmosphere filters potentially damaging ultraviolet light from reaching the Earth's surface. O₃ is also present in low concentrations throughout the Earth's atmosphere and has many industrial and consumer applications:

1. Over 50% more efficient at breaking through bacteria membranes compared to chlorine
2. Eliminates a wide range of bacteria over 3000 times faster than chlorine
3. Potent disinfectant at low concentrations
4. Decomposes into oxygen gas leaving no by-products
5. FDA-approved for direct contact with food
6. Extends shelf life of most food products
7. Efficient odor, taste and color remover
8. Easily and economically produced at point of use
9. Easily detectable at low concentrations by humans, thereby safe to manage
10. Regulatory framework in place for human exposure in most countries

Ozone has a distinct sharp odour somewhat resembling chlorine bleach. It is detectable to humans from around 0.01 ppm. Exposure to 0.1-1 ppm produces headaches, burning eyes, and irritation to the respiratory passages. Even low concentrations of ozone in air are highly destructive to the lungs and to other organic materials such as latex and plastics.


Technical Parameter:

Technical indicator	Parameter
Measuring range	(0~1)ppm
Measurement error	±3%
Resolution ratio	0.01ppm
Display	Liquid crystal display(LCD)display
Response time	≤45s (T90)
Alarm sound intensity	≥75dB
Alarm light	≥20M visible
Alarm point	fully adjustable
Alarm way	Sound, light
Continuous working time	>300h
Sensor lifetime	≥2 year
Working current	< 1mA
Battery model	PL123450,3.7V/1500mA
Charging time	4-5 hours
Protection degree	IP65
Size / Weight	105×54×32(mm) / 450g

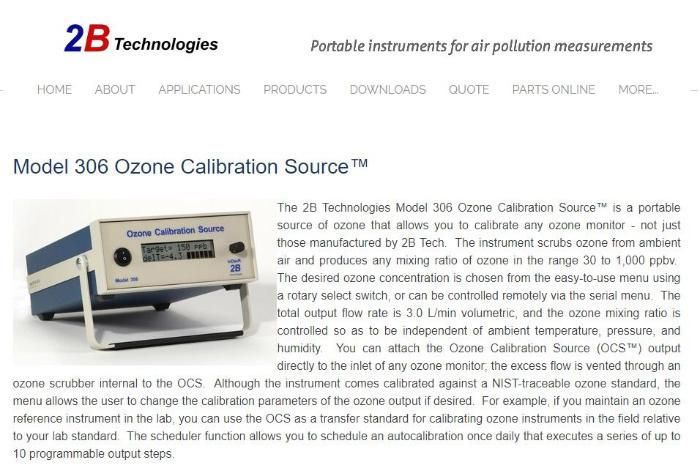

Shiantech Ozone Gas monitor is calibrated by using the Ozone Cailbration Source from 2B Technologies.



Testing results are as following:

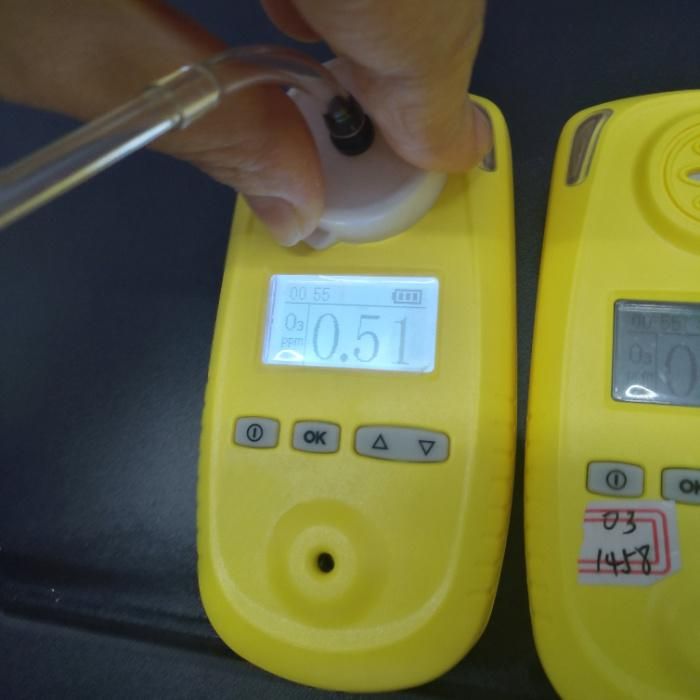

After supplying 0.500ppm calibration gas, Shiantech Ozone monitor shows 0.51ppm
After supplying 1.00ppm calibration gas, Shiantech Ozone monitor shows 1.00ppm
After supplying 0.250ppm calibration gas, Shiantech Ozone monitor shows 0.24-0.25ppm



In summary, it's an ozone gas monitor with high accuracy.



One-Stop Service

One-stop service for gas detection products

 1. Industrial design, structure design, appearance design for gas detection products

 2. Programme design and development, software development

 3. Fast prototype and mold development

 4. Mass production, international shipment

 5. OEM or relabel for present ready-made products

 6. Provide maintenance service for any brand of gas detectors



OEM

1. Customer's logo and brand name can be printed on enclosure, enclosure color can be changed according to customer's preference

2. Software can be changed according to customer's preference

3. Functions can be modified according to customer's preference

4. Develop brand new portable gas detectors

Company Information

Beijing Sh'an Technology Instrument Co., Ltd is a manufacturer in Beijing, China. It focuses on gas detection products from designing, engineering, programming, molding to assembly, testing, calibration and maintenance.



Shiantech is ISO9001 approved and SGS audited and we have Ex certificate, safety certificate and CE certificate for our portable gas detection products.



ODM and OEM are always welcomed and tailored products and solutions are the essential and ultimate goal we are ready to deliver to our esteemed customers.
