• Model NO.：PH5806
• Type：pH Probe
• Transport Package：Carton Box
• Specification：144*144*104mm
• Trademark：BOQU
• Origin：China
• HS Code：9027809900
• Production Capacity：5000,Year

Basic Info.

Model NO. PH5806 Type pH Probe Transport Package Carton Box Specification 144*144*104mm Trademark BOQU Origin China HS Code 9027809900 Production Capacity 5000/Year

Product Description

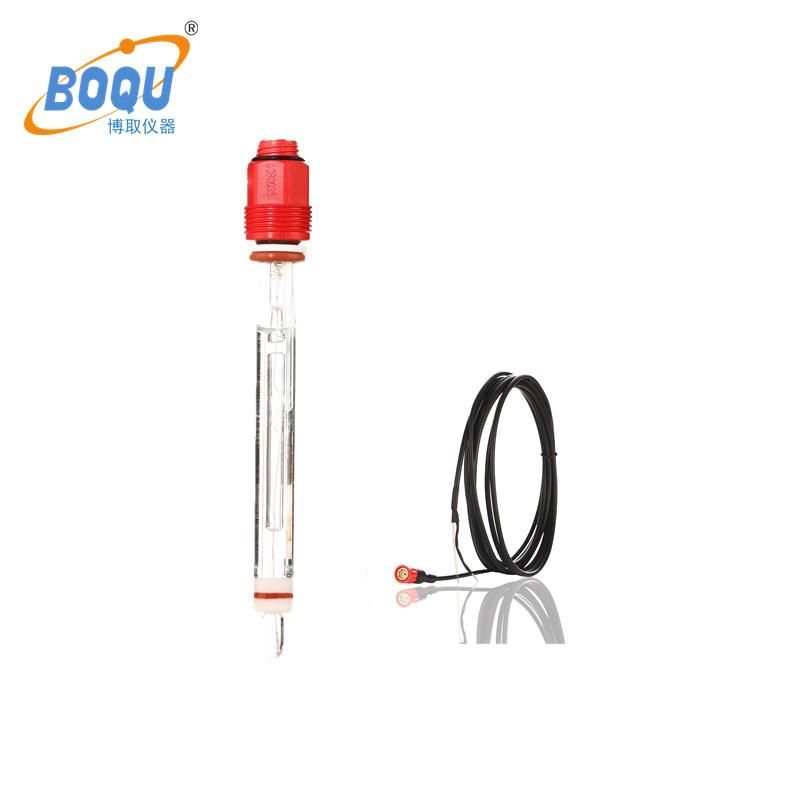

PH5806-S8 High-temperature PH Sensor


Technical Indexes
Measuring range: 0-14PH
Temperature range: 0-130 ºC
Compressive strength: 0.4MPa
Sterilization temperature: ≤ l30 ºC
Socket: S8
Dimensions: Diameter 12×120, 150, 210, 260 and 320mm

Features
1. It adopts heat-resisting gel dielectric and solid dielectric double liquid junction structure; in the
circumstances when the electrode is not connected to the back pressure, the withstand pressure is
0.4MPa. It can be directly used for l30ºC sterilization.
2. There is no need for additional dielectric and there is a little amount of maintenance.
3. It adopts S8 and PGl3.5 thread socket, which can be replaced by any overseas electrode.
4. For the electrode length, there are 120, 150, 210, 260 and 320 mm available; according to different needs,
they are optional.
5. It is used in conjunction with 316L stainless sheath.

Field of application
Bio-engineering: Amino acids, blood products, gene, insulin and interferon.
Pharmaceutical industry: Antibiotics, vitamins and citric acid
Beer: Brewing, mashing, boiling, fermentation, bottling, cold wort and deoxy water
Food and beverages: On-line measurement for MSG, soy sauce, dairy products, juice, yeast, sugar,
drinking water and other bio-chemical process.
