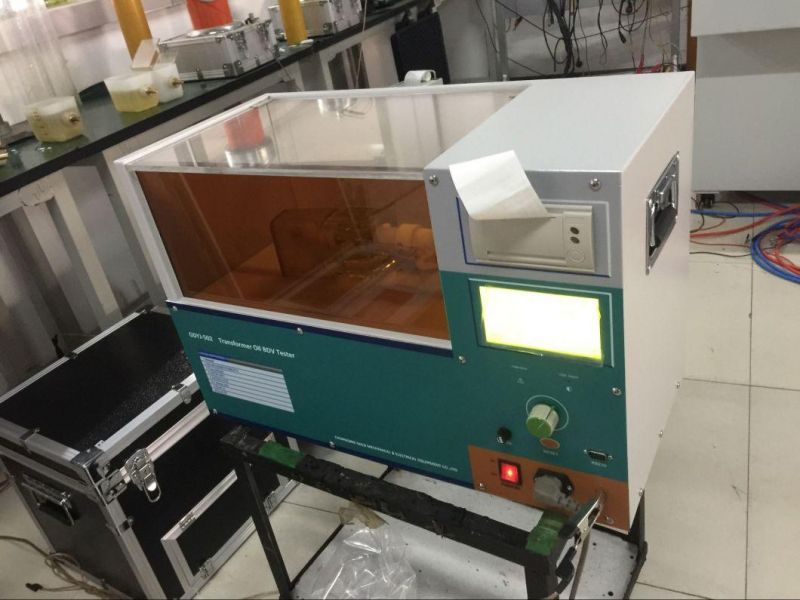

Gdyj-502 100kv Automatic Bdv Oil Tester for Transformer Oil Breakdown Voltage Testing
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Warranty：1 Year
- Apparatus：Fully Automatic Bdv Breakdown Voltage Tester Set
- Application：Transformer Oil Breakdown Voltage(Bdv) Tester
- Function：Automatic Bdv Transformer Oil Tester
- Device：Insulating Oil Bdv Dielectric Strength Tester
- Test Standards：IEC60156,Is6792,BS5874 Test, ASTM D1816, ASTM D877
Base Info
- Model NO.：GDYJ-502
- Output Voltage：AC 0V~100kv
- Display：256*128 LCD
- Maximum Storage Capacity：100 Groups of Test Data
- Weight：41kg
- Transport Package：Wooden Case
- Specification：ISO Certificate
- Trademark：GOLD
- Origin：Chongqing of China
- HS Code：9031809090
- Production Capacity：2000PCS,Month
Description
41kg Functions: Breakdown test of user-defined; Proof test; IEC60156/IS6792/BS5874 test; ASTM D1816 standard test; ASTM D877 standard test; 5 minutes standard test; Manual test; Calibration interface for customers; Uploading data to PC and making word report automatically; Result print; Features: LCD screen can display test procedure and test result; All the human interaction operations complete by the rotating mouse; It is very easy for customers to measure the breakdown voltage of all kinds of oil; You can print the test result by the micro printer internal the tester; Meanwhile, you can upload the test data to PC from RS232 for data analyzing; The special circuit design makes the tester has a good performance at stability and anti-noise;

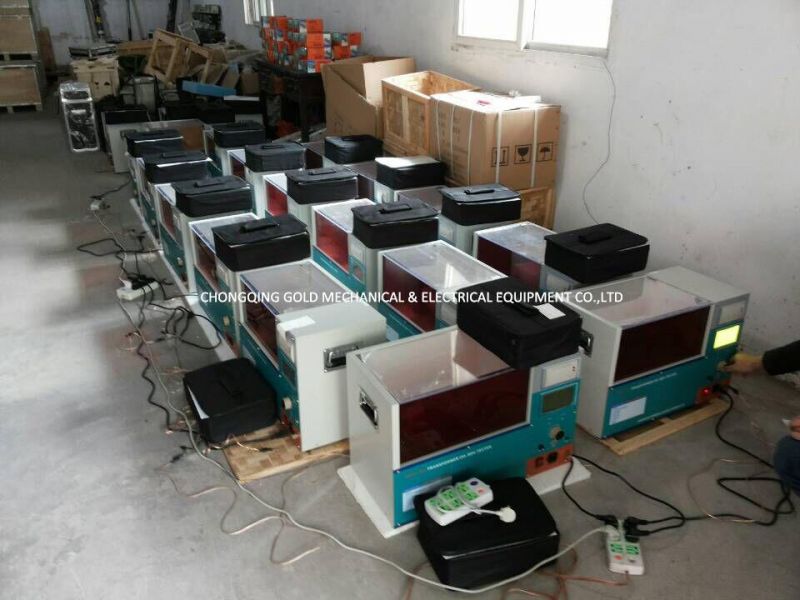

20Sets GDYJ-502 100KV Transformer Oil BDV Tester to Bangladesh:
