• Chemical Analysis Type：None
• Operating Mode：Touch Screen
• Heating Mode：No
• Off Mode：Time-Lapse
• Transport Package：Export Packing
• Specification：IMSBC standdard
• Trademark：Yosion
• Origin：China
• Production Capacity：1000PCS,Year

Basic Info.

Chemical Analysis Type None Operating Mode Touch Screen Heating Mode No Off Mode Time-Lapse Transport Package Export Packing Specification IMSBC standdard Trademark Yosion Origin China Production Capacity 1000PCS/Year

Product Description

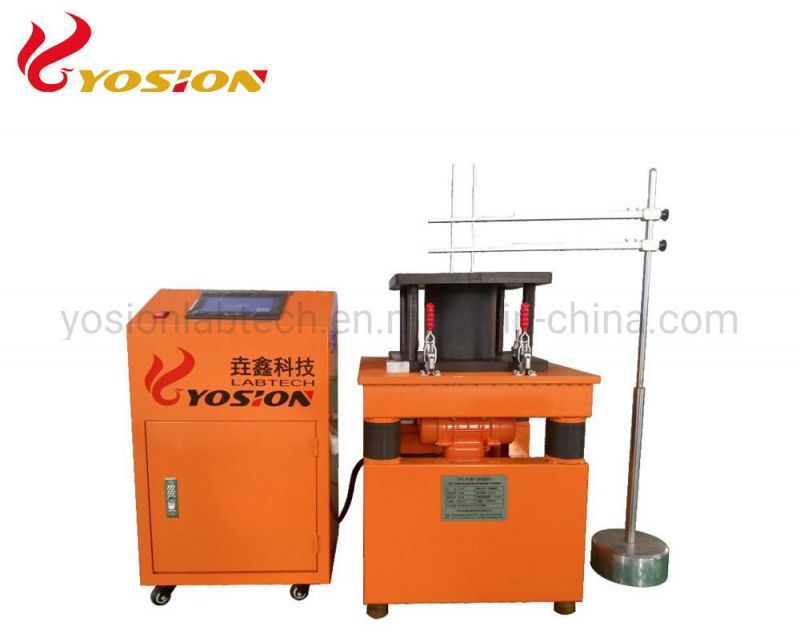

TLM-B Insert Tester is the equipment specialized for flow moisture point (FMP) and transportable moisture limit (TML) tests. It fully meets test requirements in  MSBC Code about ultimate fitness water for cargoes which may liquefy.

Features:

 · Suitable for concentrate or other particulate matter with a maximum particle size of 25 mm;

· PLC control panel for easy operation.

· Robust and low noise design with IP55 protection grade for long life performance and maintenance free.

· Control cabinet with storing space for tools storage.

· Import rubber spring to ensure stable vibration amplitude.

· Large cylinder 4700 cm with inner diameter of 194 mm; small cylinder 1700 cm with inner diameter of 146 mm;

· The random attached vibration measuring instrument can be used for real-time monitoring in the experiment.

Technical Parameters:


Voltage	Frequency	Power	Vibration Mode	Vibration Direction	Accelerated Speed	Control Mode	Performance Time	Working Table Dimension
220V	50/60Hz	300W	Mechanical	Vertical	20M/S2 ±10%	PLC	Settable	500x500x16mm

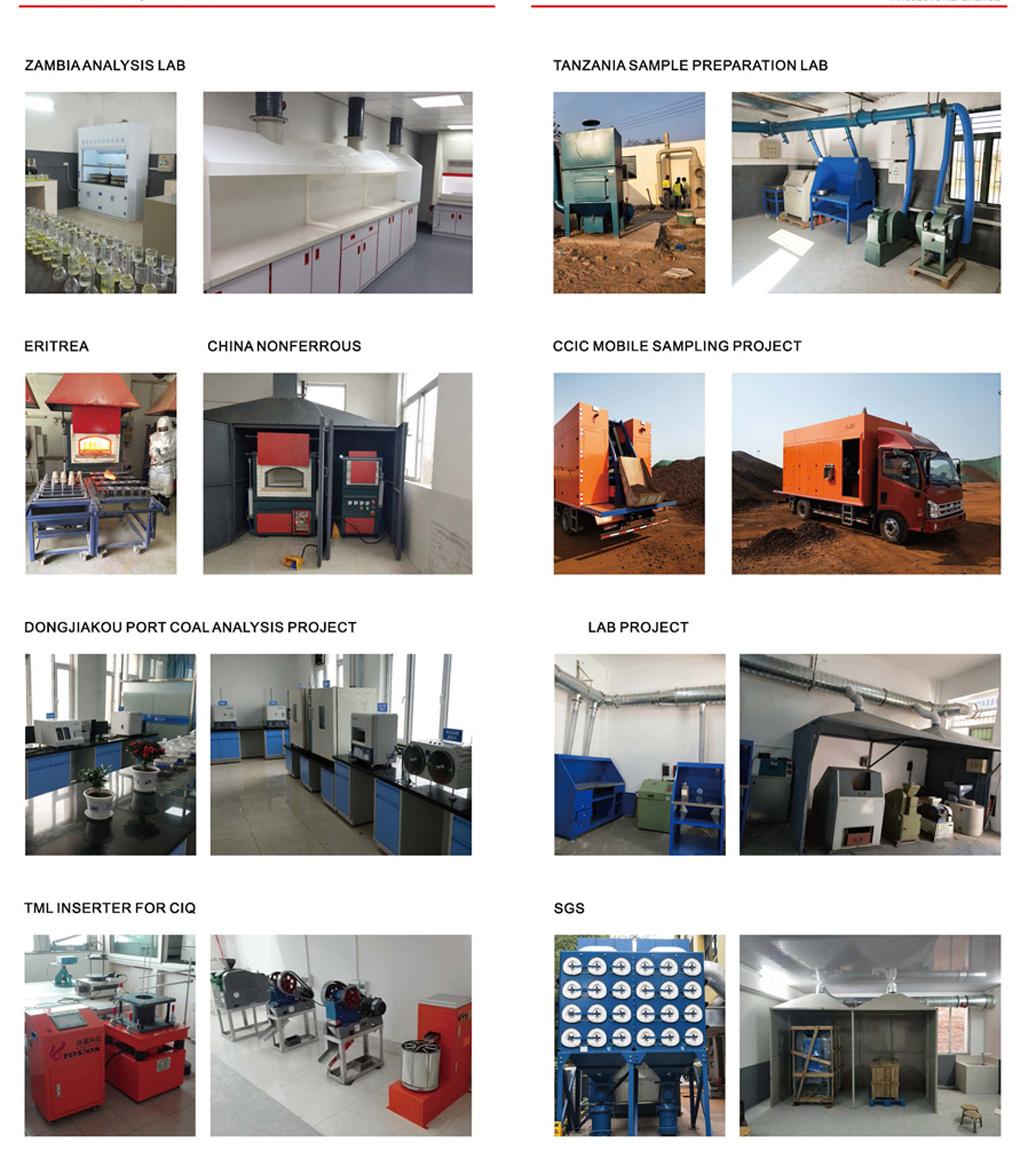

Projescts Reference
