• Model NO.：ZXQ-2Q
• Performance：Manual
• Power Supply：220V
• Certification：CE
• Weight：120 Kgs 140kgs
• Customized：Customized
• Sample Pressing Diameter：ф25mm, ф30mm, ф40mm. ф50mm
• Temperature Control Range：0-300ºC
• Net Weight：["20kg","20kgs"]
• Timing Range：0-30min
• Heater：220V,50Hz,400W Temperature Control (Intelligent) R
• Dimensions：320×350×400mm
• Pressure：0.7-0.8MPa
• Gross Weight：30kgs
• Powering：Pneumatic
• Transport Package：Plywood Case
• Specification：380× 720× 520mm
• Trademark：OEM ODM
• Origin：China Jinan or Others
• HS Code：8460402000
• Production Capacity：5000set Per Year

Basic Info.

Model NO. ZXQ-2Q Performance Manual Power Supply 220V Certification CE Weight 120 Kgs 140kgs Customized Customized Sample Pressing Diameter ф25mm, ф30mm, ф40mm. ф50mm Temperature Control Range 0-300ºC Net Weight ["20kg","20kgs"] Timing Range 0-30min Heater 220V/50Hz/400W Temperature Control (Intelligent) R Dimensions 320×350×400mm Pressure 0.7-0.8MPa Gross Weight 30kgs Powering Pneumatic Transport Package Plywood Case Specification 380× 720× 520mm Trademark OEM ODM Origin China Jinan or Others HS Code 8460402000 Production Capacity 5000set Per Year

Product Description

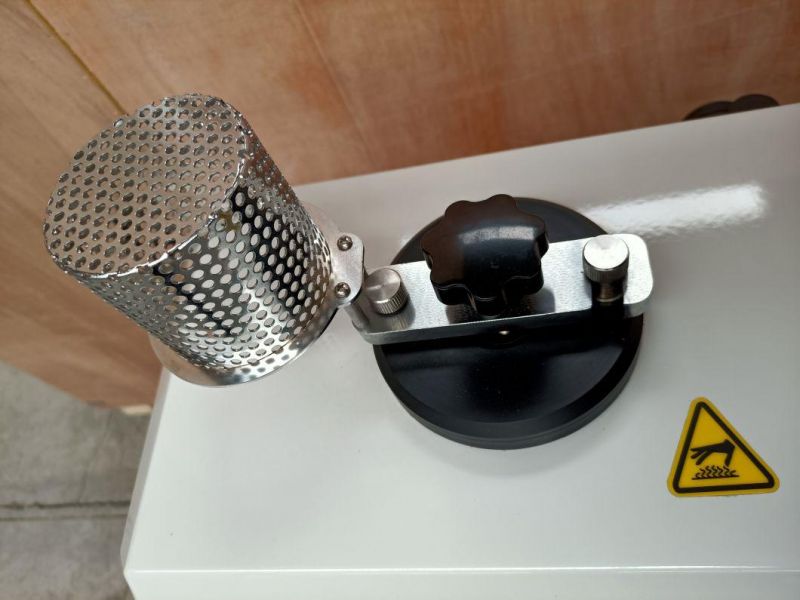

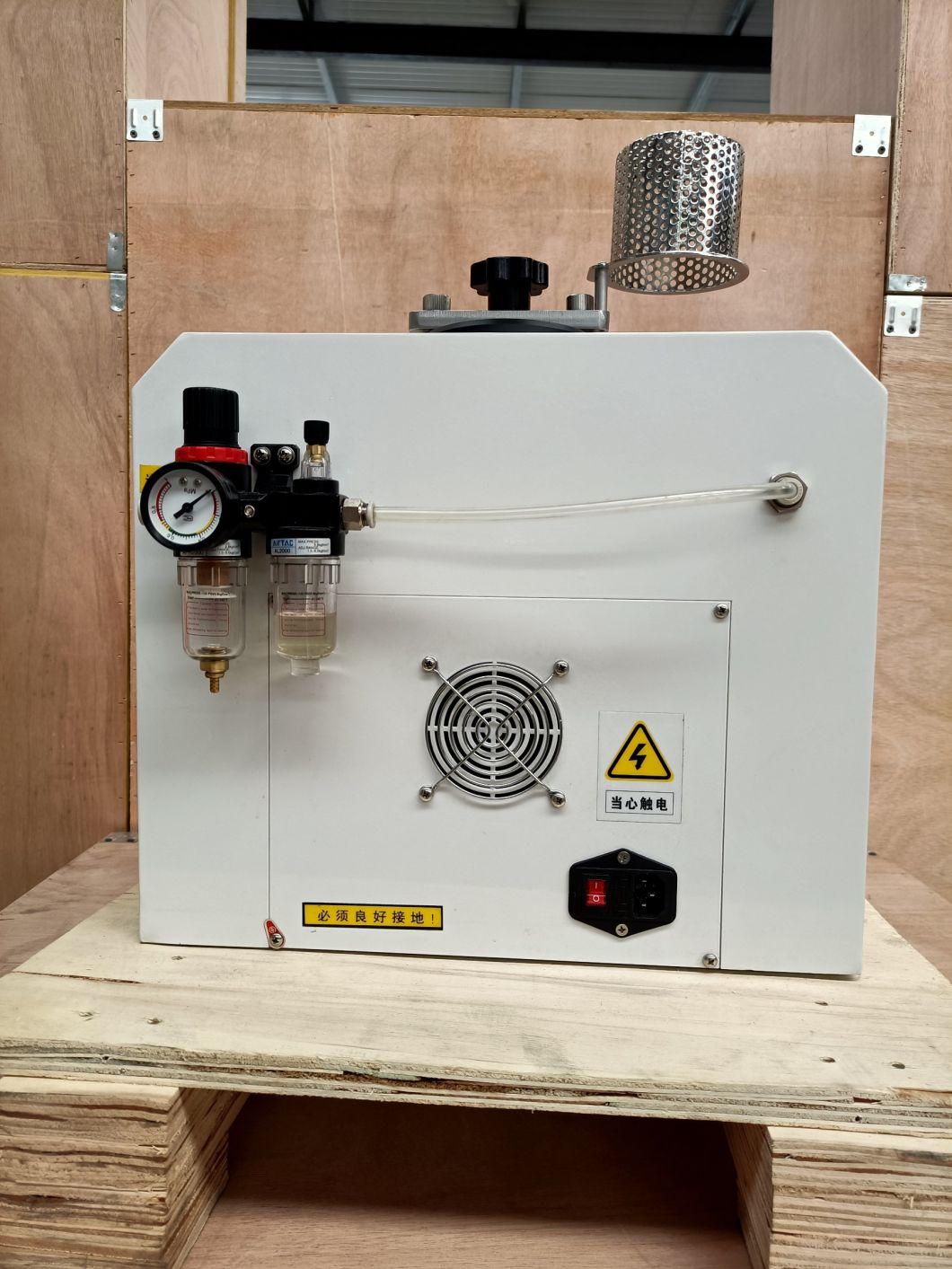

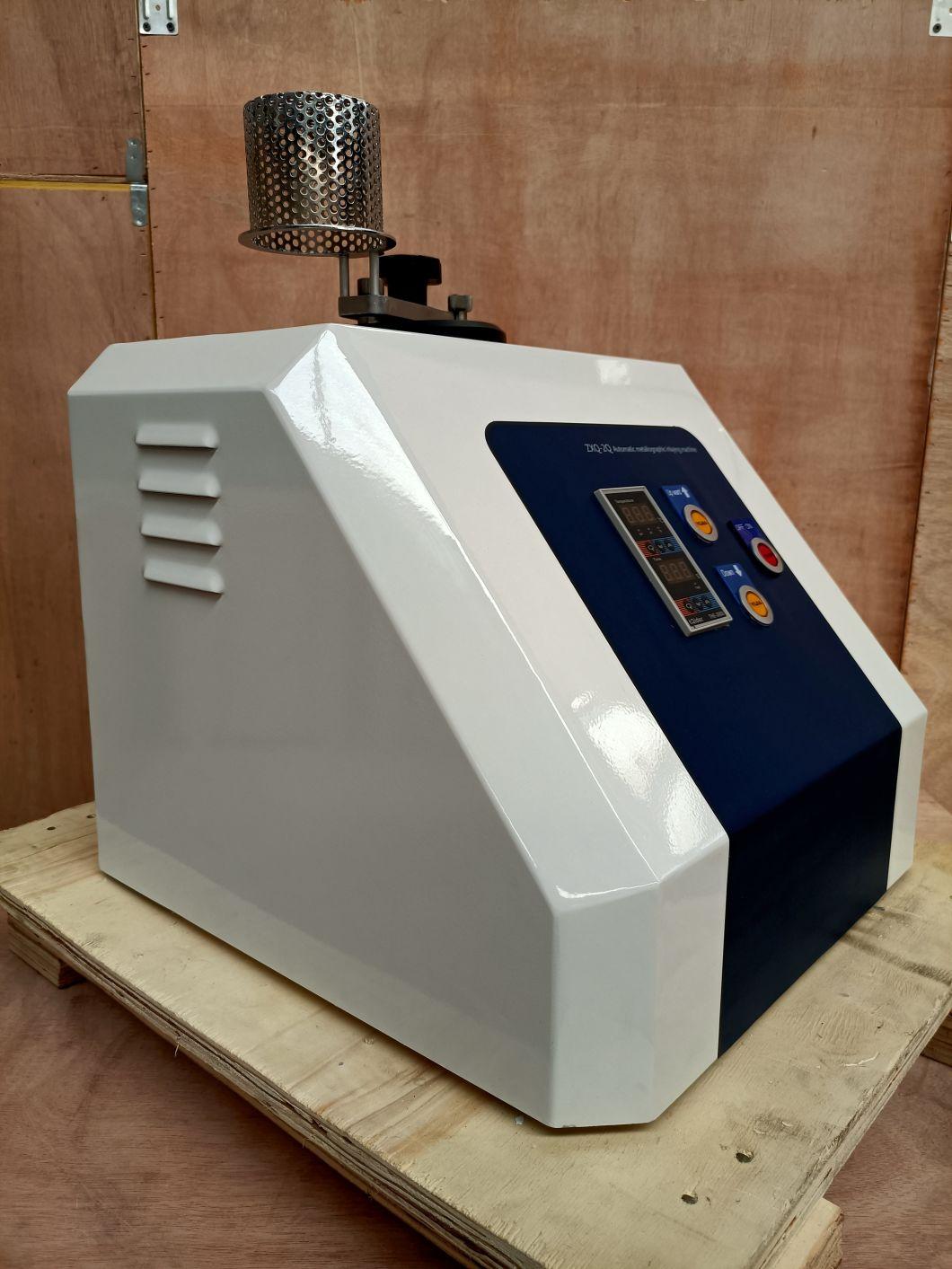

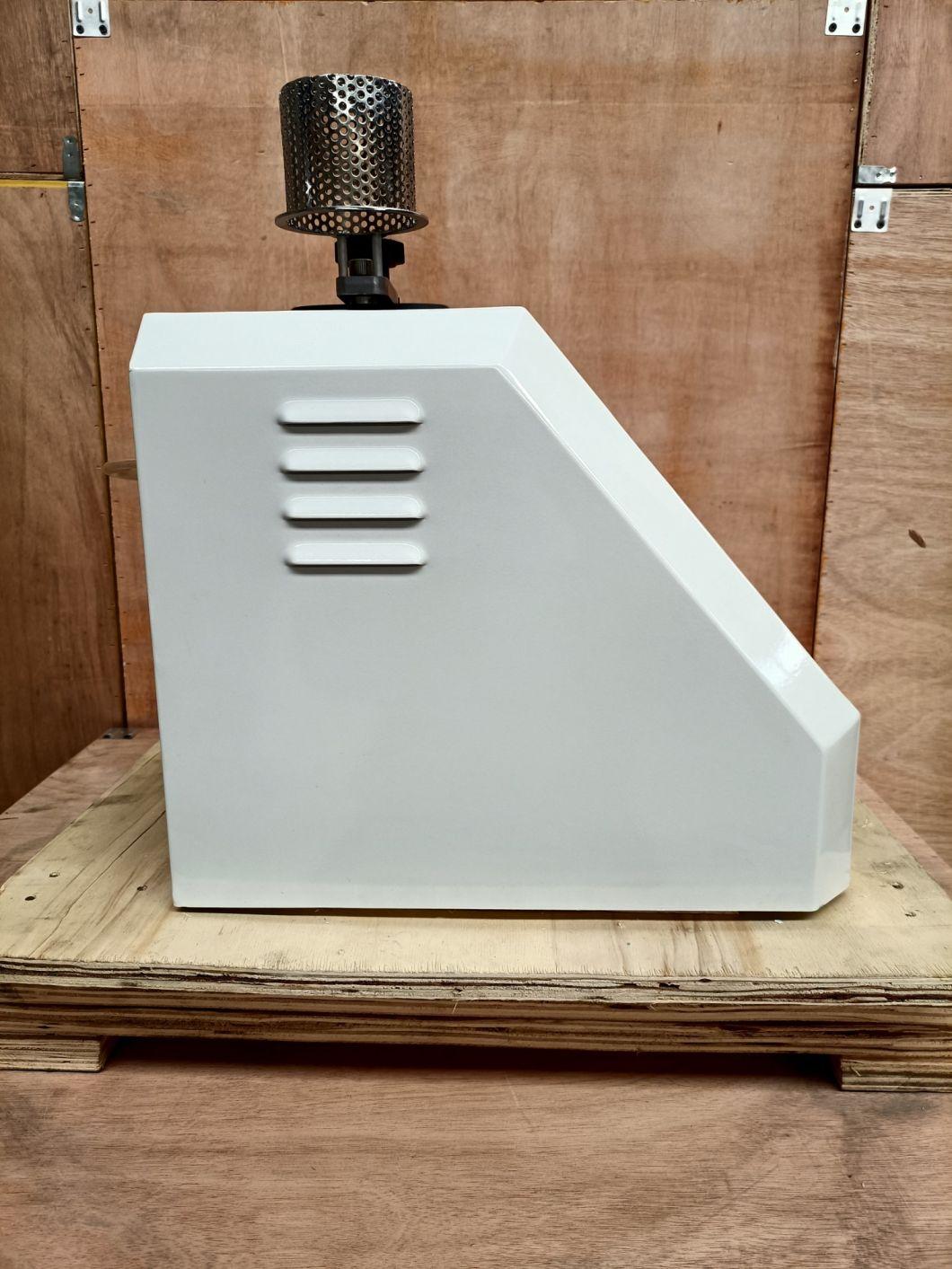

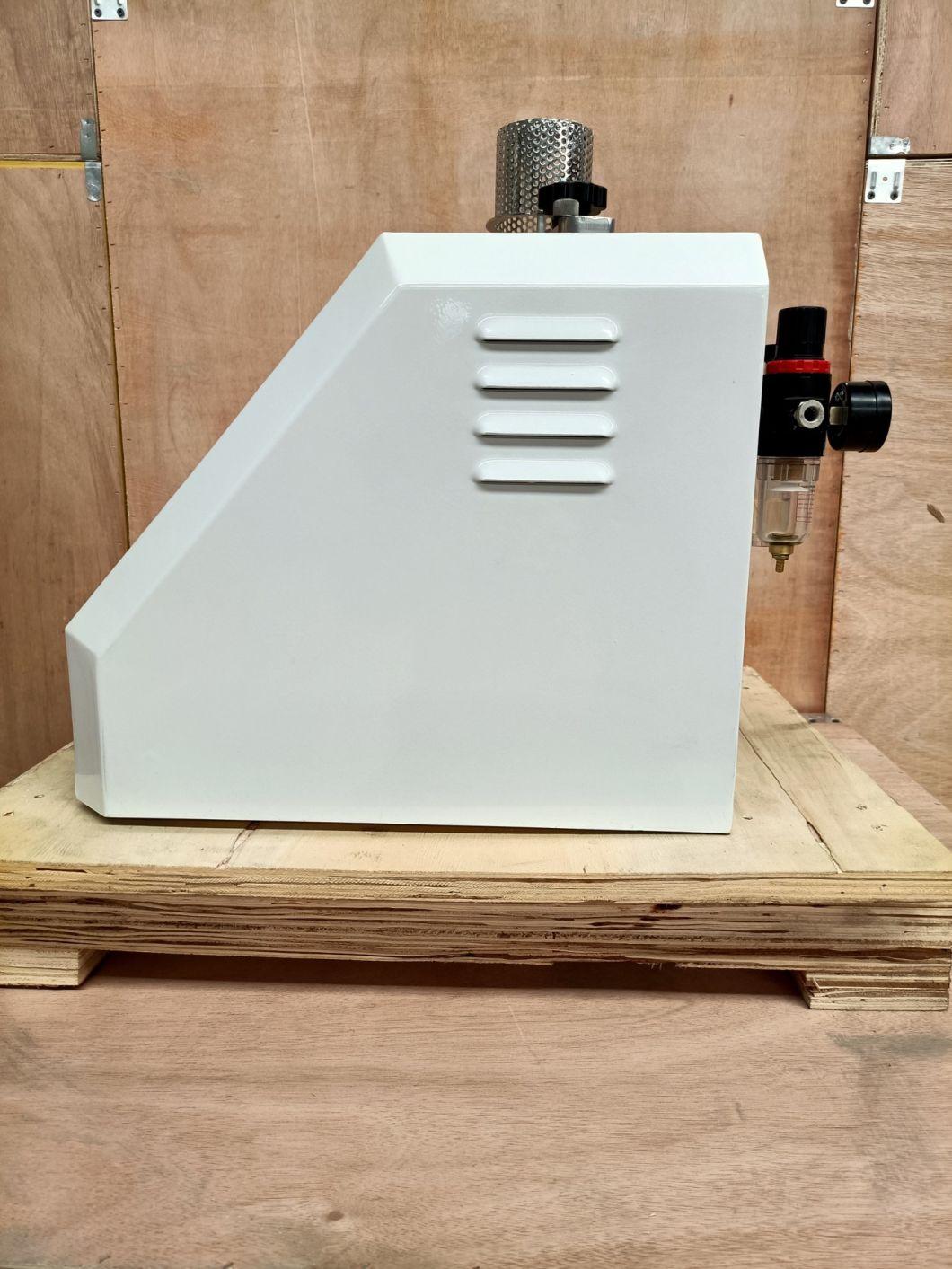

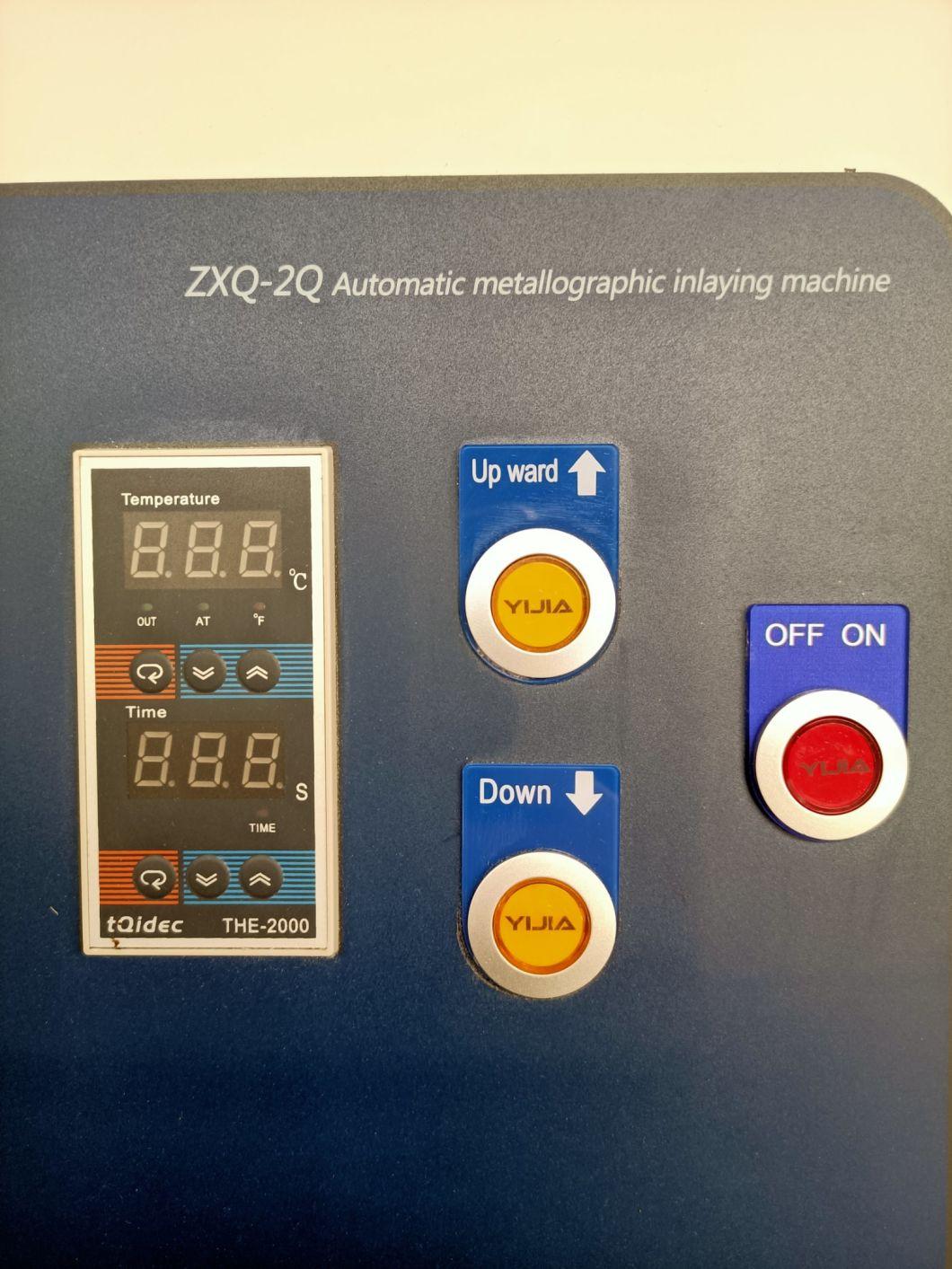

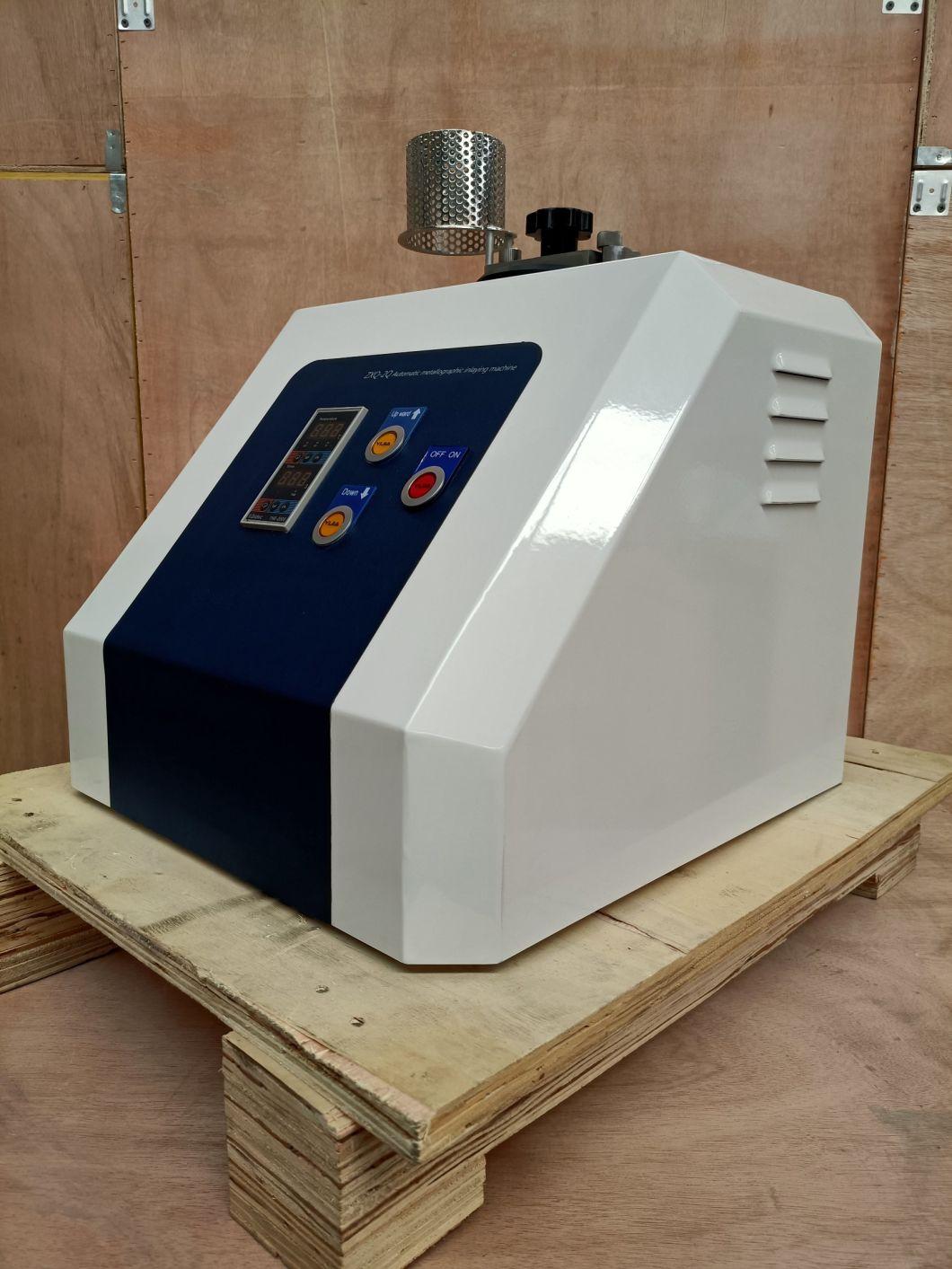

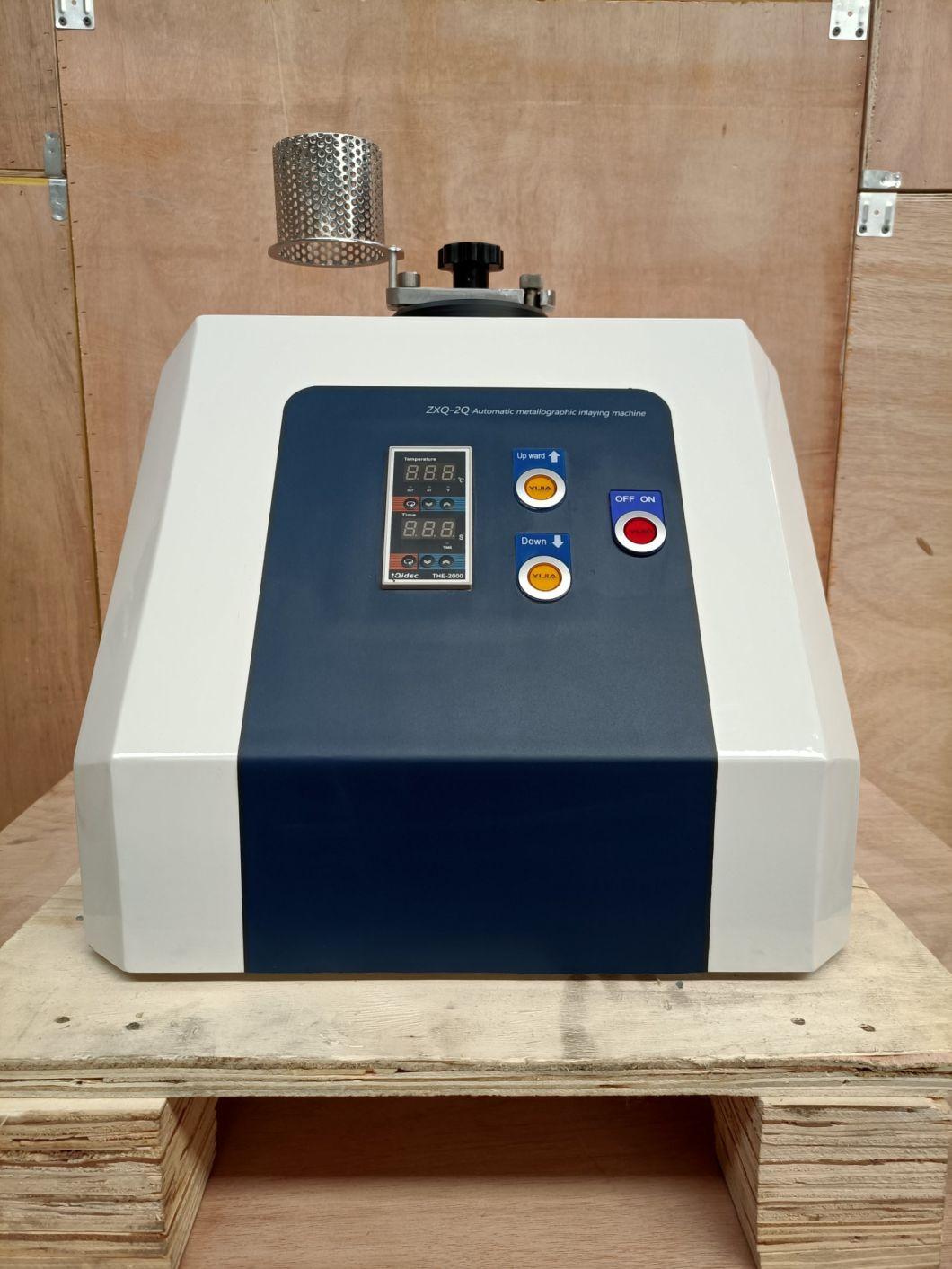

ZXQ-2Q Automatic metallographic sample mounting machine (pneumatic)

Introduction
ZXQ-2Q automatic metallographic sample inlaying machine (pneumatic), suitable for inlaying small, difficult to handle or irregular metallographic and petrographic samples, so as to cut or grind and polish the samples, and then carry out metallographic , Spectral testing or hardness testing. During the sample preparation process, the machine is controlled by the program, and its series of actions from automatic heating, pressurization, automatic cooling to automatic pressure relief and shutdown realizes the effect of this mechanism that it can be unattended during sampling, which reflects the more human nature of the machine. The superior features of chemistry, easy operation and high efficiency.
ZXQ-2Q automatic metallographic inlay machine is an ideal sample preparation equipment for colleges, universities, industrial and mining enterprise laboratories.
The mounting machine can work reliably under the following conditions:
1. The altitude is not higher than 1000m.
2. The temperature of the surrounding medium is not higher than +40ºC and not lower than -10ºC.
3. The relative humidity of the air is not more than 85% (at 20°C).
4. There is no conductive dust, explosive gas, or corrosive gas that can seriously damage metals and insulators.
5. There are no obvious vibrations and bumps.
6. Air source pressure 0.6-0.8mpa

Technical specifications
Specimen pressing specifications: φ30mm, φ45mm (One standard configuration, select when ordering)
Heater: 220v/50Hz/400w temperature control (intelligent) room temperature-250ºC adjustable
Air pressure: 0.7-0.8mpa
Dimensions: 320×350×400mm
Weight: Net weight 20kg, gross weight 30kg
Three, standard accessory box
Host: 1
Power cord: 1
Inlay material: 1 barrel
Technical documents: 1 copy each of manual, certificate, and warranty card
