• Model NO.：ZXQ-3Q
• Performance：Manual
• Power Supply：220V
• Certification：CE
• Weight：120 Kgs 140kgs
• Customized：Customized
• Sample Pressing Diameter：ф25mm, ф30mm, ф40mm. ф50mm
• Temperature Control Range：0-300ºC
• Net Weight：["20kg","20kgs"]
• Timing Range：0-30min
• Heater：220V,50Hz,400W Temperature Control (Intelligent) R
• Dimensions：320×350×400mm
• Pressure：0.7-0.8MPa
• Gross Weight：30kgs
• Powering：Pneumatic
• Transport Package：Plywood Case
• Specification：380× 720× 520mm
• Trademark：OEM ODM
• Origin：China Jinan or Others
• HS Code：8460402000
• Production Capacity：5000set Per Year

Basic Info.

Model NO. ZXQ-3Q Performance Manual Power Supply 220V Certification CE Weight 120 Kgs 140kgs Customized Customized Sample Pressing Diameter ф25mm, ф30mm, ф40mm. ф50mm Temperature Control Range 0-300ºC Net Weight ["20kg","20kgs"] Timing Range 0-30min Heater 220V/50Hz/400W Temperature Control (Intelligent) R Dimensions 320×350×400mm Pressure 0.7-0.8MPa Gross Weight 30kgs Powering Pneumatic Transport Package Plywood Case Specification 380× 720× 520mm Trademark OEM ODM Origin China Jinan or Others HS Code 8460402000 Production Capacity 5000set Per Year

Product Description

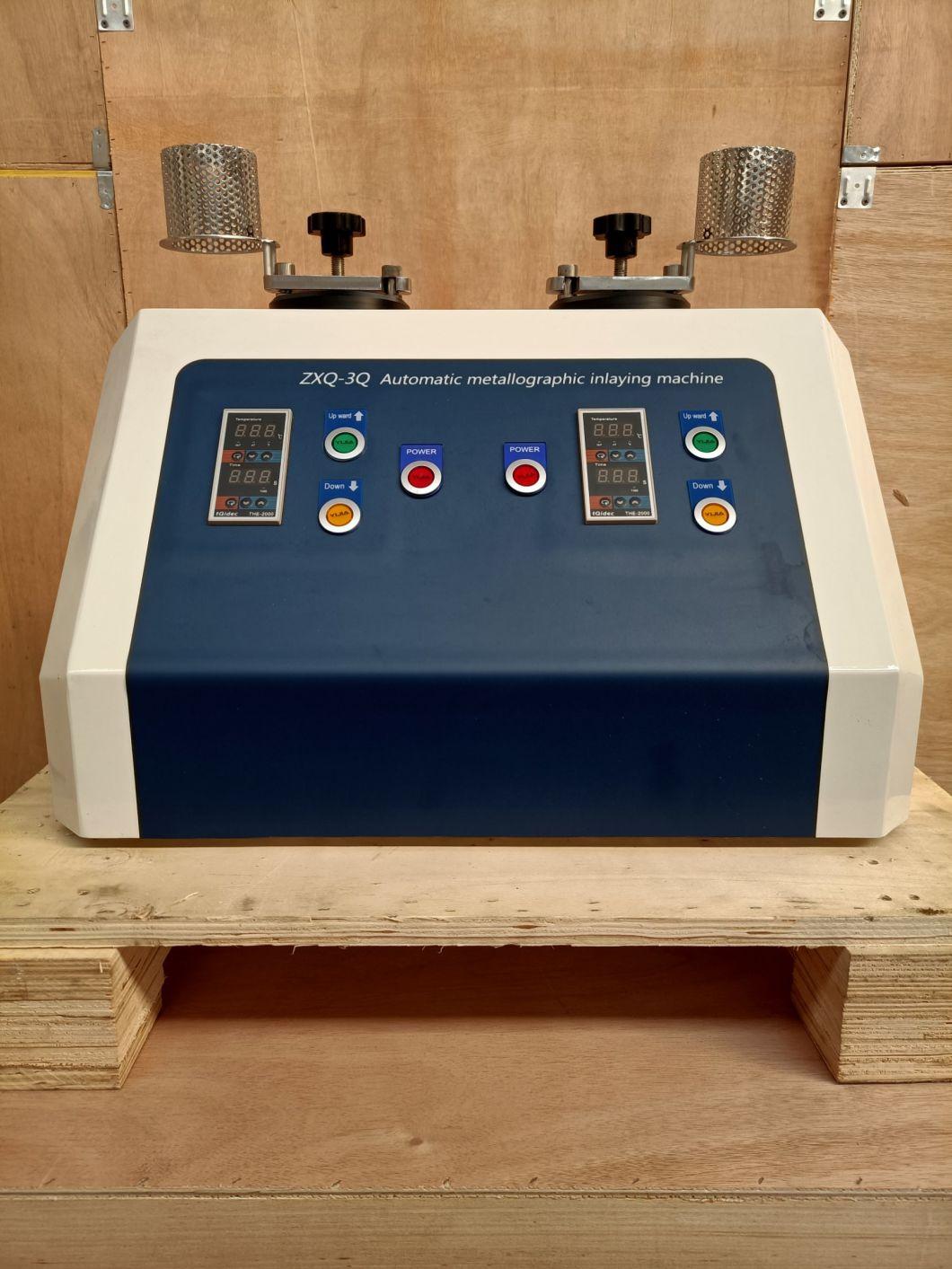

ZXQ-3Q Automatic metallographic sample mounting/inlaying machine (pneumatic)


Product Introduction
ZXQ-3Q double-head (mosaic room) automatic metallographic sample inlaying machine (pneumatic) is an intelligent automatic metallographic inlaying machine designed to meet batch, fast and precise sample preparation. This machine is used for thermosetting plastic compression molding of small metallographic samples that are irregular and difficult to handle. After forming, the grinding and polishing operation can be conveniently carried out, and it is also conducive to the measurement of microstructure in metallographic microscopy and hardness testing. The isolated double inlay chamber can be controlled separately, and two samples of different specifications can be inlaid at the same time.
ZXQ-3Q automatic metallographic inlay machine is an ideal sample preparation equipment for colleges, universities, industrial and mining enterprise laboratories.
The mounting machine can work reliably under the following conditions:
1. The altitude is not higher than 1000m.
2. The temperature of the surrounding medium is not higher than +40ºC and not lower than -10ºC.
3. The relative humidity of the air is not more than 85% (at 20°C).
4. There is no conductive dust, explosive gas, or corrosive gas that can seriously damage metals and insulators.
5. There are no obvious vibrations and bumps.
6. Air source pressure 0.6-0.8mpa

Technical specifications
Specimen pressed parts specifications: ф30mm, ф45mm (double inlaid sleeves are standard with ф30mm, select when ordering)
Heater: 220v/50Hz/800w temperature control (intelligent) room temperature-250ºC adjustable
Air pressure: 0.7-0.8mpa
Dimensions: 450×350×400mm
Weight: Net weight 25kg, gross weight 35kg
Three, standard accessory box
Host: 1
Power cord: 1
Inlay material: 1 barrel 500g
Technical documents: 1 copy each of manual, certificate, and warranty card
