• Chemical Analysis Type：None
• Operating Mode：Touch Screen
• Heating Mode：None
• Off Mode：Time-Lapse
• Transport Package：Export Packing
• Specification：IMSBC
• Trademark：Yosion
• Origin：China
• Production Capacity：1000PCS,Year

Basic Info.

Chemical Analysis Type None Operating Mode Touch Screen Heating Mode None Off Mode Time-Lapse Transport Package Export Packing Specification IMSBC Trademark Yosion Origin China Production Capacity 1000PCS/Year

Product Description

TML-A Plate Tester is the equipment specialized for flow moisture point (FMP) and transportable moisture limit (TML) tests. It fully meets test requirements in IMSBC Code about ultimate fitness water for cargoes which may liquefy.


Features:

· PLC control panel for easy operation.
· Premium quality of motor and screw drive pressing system offer precision and accuracy.
· Pressing position can be set according to operator's demand.
· Plate can spin 360°to provide maximum pressing surface.
· Pressing force is settable. Spring tamper return upward to original position after reaching maximum pressing position.
· Manual mode and automatic mode are switchable.
· Sound-light alarm for reminding next operation.
· Fault alarm system helps to eliminate faults.


Technical Parameters:

Voltage	Power	Pressing  Mode	Max.  Pressure	Jolting  Distance	Jolting  Frequency	Jolting Times  In The First  Pressing	Jolting Times  In The Second  Pressing	Jolting Times  In The Third  Pressing	Tamper  Diameter
220V	100W	Pneumatic	70.7kgf	12.5mm	25 times/minute	35	25	20	Φ30mm

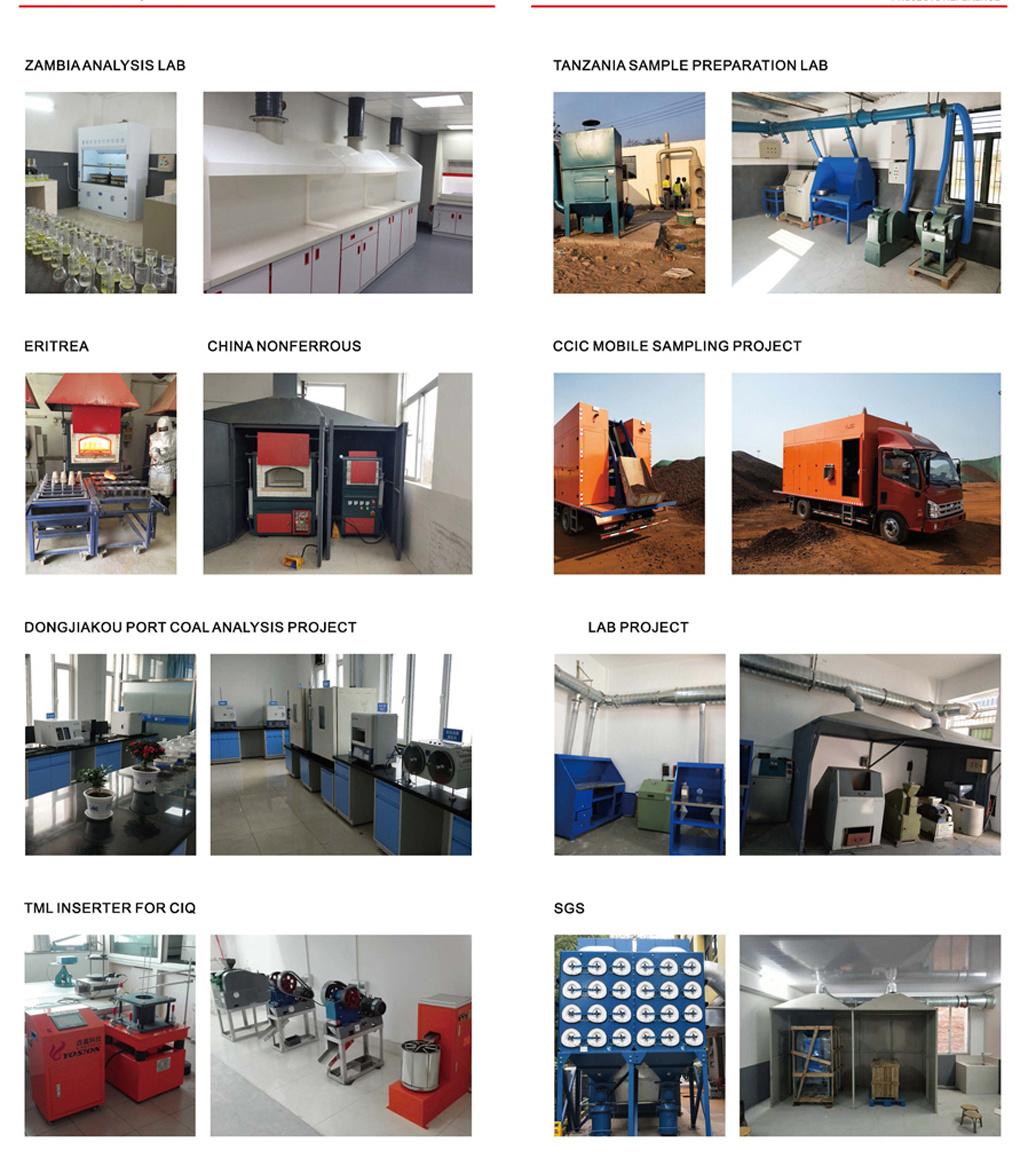

Projescts Reference
