Brief introduction:

BT-1600 Image Particle Analysis System includes optical microscope, digital CCD camera, image processing and analysis software, computer, printer, etc. It combines traditional microscope measuring method and modern image processing technology. The basic work procedure is that it shoots images by special digital camera; transfers particle images to the computer by USB data transmission; process and analyze the images by special particle image analysis software; output analysis results by displayer and printer. The system has characteristics of intuition, accuracy, wide measuring range, automatic identification, automatic counting, automatic calibration, etc., not only can be used to observe particle shape, but also can obtain particle size distribution, average L/D ratio and L/D ratio distribution, and provides a new particle size test method for the fields of scientific research and production.

Specification:


SizeRange:	1-3000 um
Maximum Amplification:	4000
Maximum Resolution:	0.1 um
Repeatability:	< 3%(Errors from sample preparation is excluded)
Digital Camera (CCD):	3 million pixels
Microscope:	Domestic biological microscope, Import biological microscope, Metallographic microscope
Ruler Scale:	10um
Output Results:	Particle size distribution, aspect ratio, circularity distribution, monomer particle and particle swarm
Auto Segmentation Speed:	< 1 second
Segmentation Success Rate:	> 93%
Operation System:	Win XP/ Win 7
ConnectionPort:	USB

Application Fields (for particle shape, particle size analysis, large particles monitoring)

Abrasive: silicon carbide, corundum, garnet, etc.
Battery material: Spherical graphite powder, etc.
Metal powders: spherical aluminum powder, lead-tin alloy powder, other atomized metal powders, etc.
Non-metallic powders:  glass beam, polystyrene, etc.
Acicular powders:  wollastonite, etc.
Biological agent: cell, etc.
Food: milk, flour, etc.
Others: scientific research, teaching, etc.

Test Principle:

Calibration method: Use special scale for microscope to calibrate the size for each pixel, and then measure the size of the particle in micron according to the pixel number of the area of each particle image.

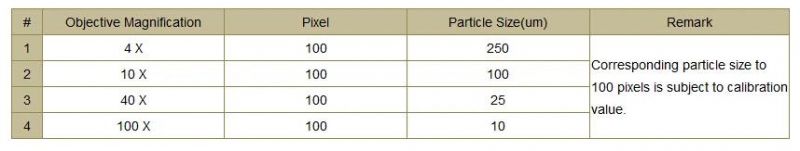

Test principle: Through counting particle number and the pixel number of each particle to calculate equivalent circle area and equivalent sphere volume of each particle, so as to obtain the diameter of equivalent circle area , diameter of equivalent sphere volume , L/D ratio, etc. For convenient operation, a measurement unit for BT-1600 image particle analyzer is 100 pixels. The following table is corresponding particle size to 100 pixels for different objective amplification times.

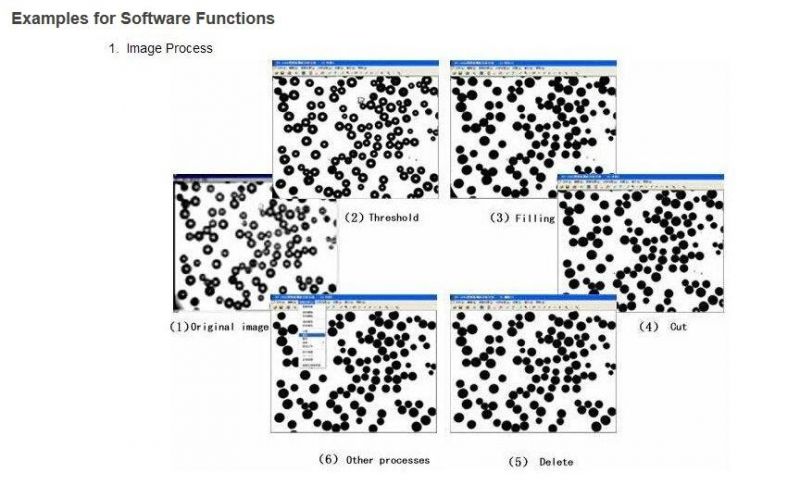

Image analysis:
(obtain particle size distribution, L/D ratio and its distribution, circularity and its distribution, the largest particle, etc.)
