Insulating Oil Dielectric Loss and Resistivity Tester Tp-6100A
Chongqing TOP Oil Purifier Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Function：Measure The Dielectric Loss Factor and DC Resist
- Power Supply Voltage：AC 220V ± 10%
- Power Frequency：30000:1 (Dtgs, Resolution@4cm-1; Sample and Backgr
- Relative Permittivity：0.001
Base Info
- Model NO.：TP-6100A
- Dielectric Loss Factor：0.00001
- Temperature Range：> 0 ~ 125 ºC
- Temperature Measurement Error：± 0.5 ºC
- AC Test Voltage：500 ~ 2200V Continuously Adjustable Frequency 50Hz
- Transport Package：Standard Export Wooden Case
- Trademark：Chongqing TOP
- Origin：Chongqing, China
- HS Code：9026809000
- Production Capacity：100,Month
Description
FOCUS ON OIL FILTRATION SYSTEM OVER 20 YEARS
Recycling your used oil reduces pollution and protecting our environment.
Conserving a valuable resource and getting paid for it.
Chongqing TOP Oil Purifier Co.,Ltd.
Product Description
Product Show:

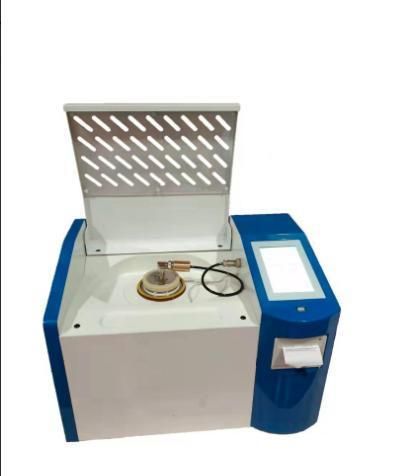

Insulating Oil Dielectric Loss And Resistivity Tester TP-6100A
Application:
TP-6100 Insulating oil dielectric loss and resistivity tester is based on ASTM D 924, IEC and GB/T5654-2007 design and manufacturing of "Liquid Insulating Material Of Relative Permittivity, Dielectric Loss Factor And DC Resistivity Measurements". Used for measuring the dielectric loss factor and DC resistivity of insulation oil and other liquid insulating medium. The instrument is characterized by integrated structure, and integrates the dielectric loss of grease cup, temperature controller, temperature sensor, dielectric loss test bridge, AC test power, standard capacitor, high resistance meter, DC high voltage source and other major components. The instrument adopts full digital technology and all of the intelligent automatic measurement, is equipped with large screen (240*128) LCD display. Test results can be automatically stored and printed out so that the operator without professional training will be able to use it proficiently.
After-sale Service:
* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
Company Profile
Our Company:
Chongqing TOP Oil Purifier Co., Ltd
Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc.Exhibition:

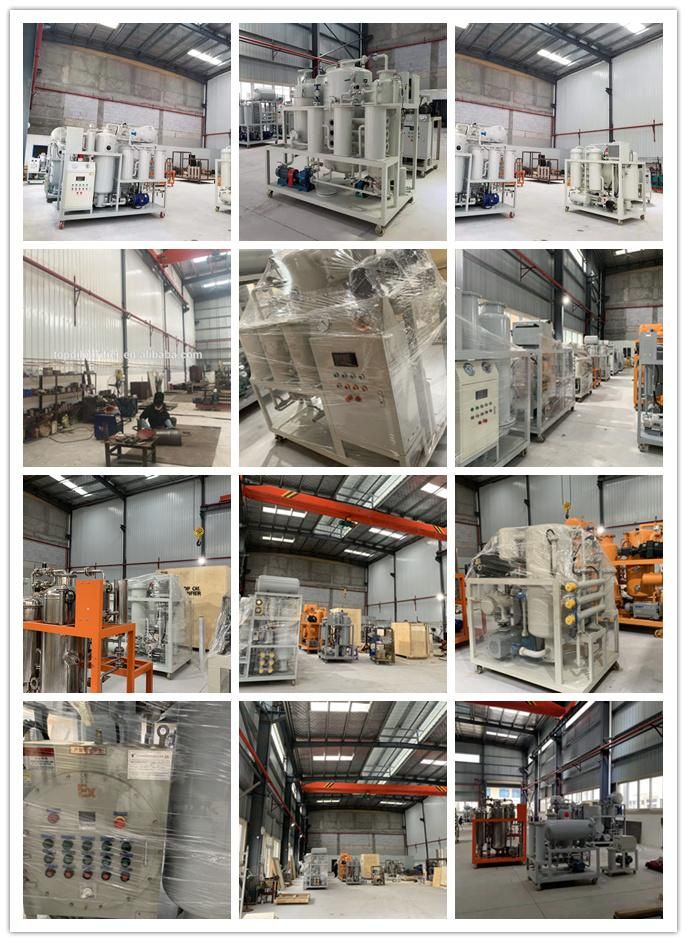

Our Factory:
WELCOME YOUR INQUIRY
