• Model NO.：BA200
• Appliance：Food Analysis, Medical Research, Biochemistry
• Portable：Portable
• Certification：RoHS, CE, ISO9001
• Type：Concentration Meter
• Analysis Method：Chemical Analysis
• Application：Agriculture & Food
• Operating Mode：Keyboard
• Off Mode：Automatic
• Chemical Analysis Type：electrochemistry
• Transport Package：Standard Carton Packing
• Specification：blue-green algae
• Trademark：Twinno
• Origin：Shanghai, China
• HS Code：9027809900
• Production Capacity：3000PCS,Month
• Package size per unit product：41.00cm * 26.00cm * 31.00cm
• Gross weight per unit product：5.000kg
• Lead Time：15 days (1 - 50 Pieces) 30 days (51 - 200 Pieces) 60 days (201 - 500 Pieces) To be negotiated ( > 500 Pieces)

Basic Info.

Model NO. BA200 Appliance Food Analysis, Medical Research, Biochemistry Portable Portable Certification RoHS, CE, ISO9001 Type Concentration Meter Analysis Method Chemical Analysis Application Agriculture & Food Operating Mode Keyboard Off Mode Automatic Chemical Analysis Type electrochemistry Transport Package Standard Carton Packing Specification blue-green algae Trademark Twinno Origin Shanghai, China HS Code 9027809900 Production Capacity 3000PCS/Month

Packaging & Delivery

Package size per unit product 41.00cm * 26.00cm * 31.00cm Gross weight per unit product 5.000kg Lead Time 15 days (1 - 50 Pieces)
30 days (51 - 200 Pieces)
60 days (201 - 500 Pieces)
To be negotiated ( > 500 Pieces)

Product Description

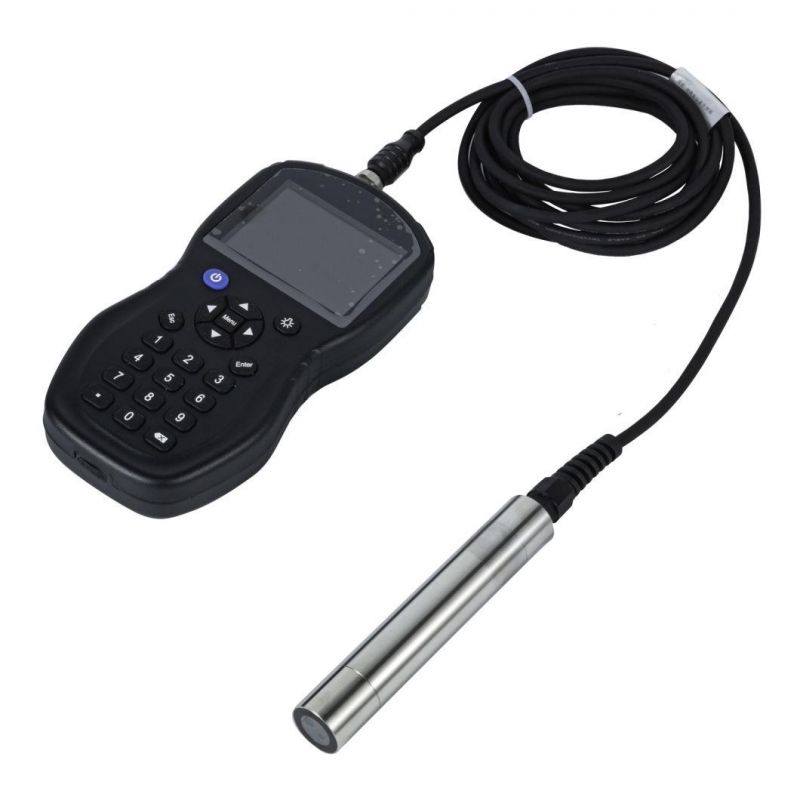

BA200 Portable blue-green algae analyzer



principle of measurement:
The portable blue-green algae analyzer is composed of a portable host and a portable blue-green algae sensor.By taking advantage of the characteristic that cyanobacteria have absorption peak and emission peak in the spectrum, they emit monochromatic light of specific wavelength to the water. Cyanobacteria in the water absorb the energy of the monochromatic light and release monochromatic light of another wavelength. The light intensity emitted by blue-green algae is proportional to the content of cyanobacteria in the water.

Application:
It is widely used in the field portable monitoring of blue-green algae in aquaculture, surface water, scientific research universities and other industries.

Features:

1. Portable host IP66 protection level;
2. Ergonomic curve design, with rubber gasket, suitable for hand  handling, easy to grasp in wet environment;
3. Factory calibration, one year without calibration, can be calibrated on the spot;
4. Digital sensor, easy to use, fast, and portable host plug and play;
5. With USB interface, you can charge the built-in battery and export data through USB interface.



Model	BA200
Measuring method	Optical
Measurement range	150-300,000cells/mL(Customizable)
Measurement accuracy	±5% of the corresponding signal level of 1ppb rhodamine WT dye
Linear	R2 > 0.999
Housing material	Sensor: SUS316L; Host: ABS+PC
Storage temperature	0 ºC to 50ºC
Operating temperature	0ºC to 40ºC
Sensor dimensions	Diameter 24mm* length 207mm; Weight: 0.25 KG
Portable host	203*100*43mm; Weight: 0.5 KG
Waterproof rating	Sensor: IP68; Host: IP66
Cable Length	3 meters (extendable)
Display screen	3.5 inch color LCD display with adjustable backlight
Data Storage	8G of data storage space
Dimension	400×130×370mm
Gross weight	3.5KG

 After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.




FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.

How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.




Delivery and Packing:

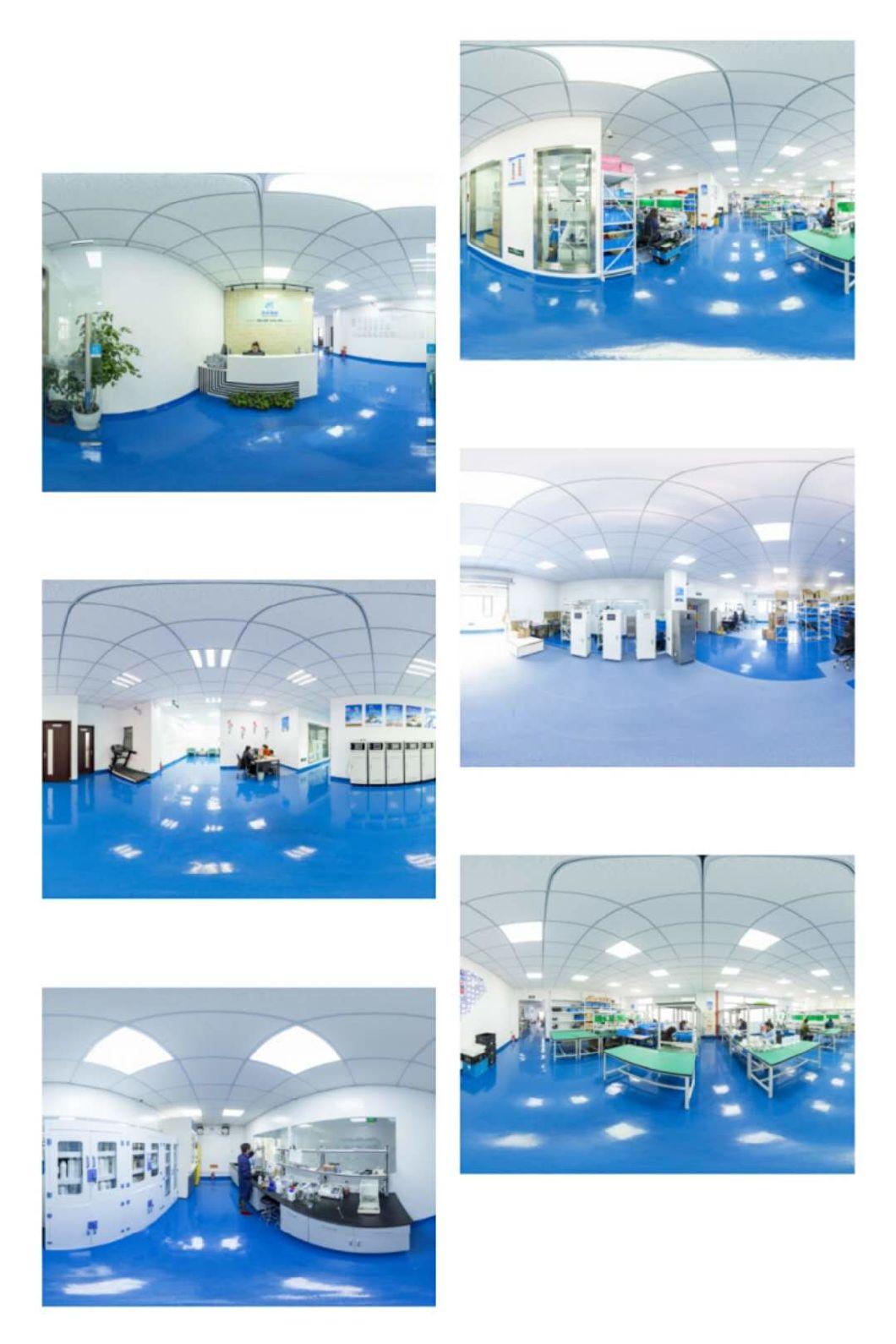

Our company:
