• Model NO.：CS8050D
• Appliance：Food Analysis, Medical Research, Biochemistry
• Portable：Non Portable
• Certification：RoHS, CE, ISO9001
• Type：pH,ORP,TDS,EC,Salinity,DO,FCL
• pH Range：0~14pH
• ORP：-2000mV - 2000mV
• Conductivity：1.0 uS,cm~ 20.0 mS,cm
• TDS：1.0 ppm~10.00 ppt
• Salinity：0.0~ 16.0 g,L
• Temperature：0~60 C
• Dissolved Oxygen：0.0-400.0%, 0.00-40.00 mg,L
• Transport Package：1 Piece,Carton
• Specification：Diameter 45 x Length 176 mm
• Trademark：twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：1000pieces,Month

Basic Info.

Model NO. CS8050D Appliance Food Analysis, Medical Research, Biochemistry Portable Non Portable Certification RoHS, CE, ISO9001 Type pH/ORP/TDS/EC/Salinity/DO/FCL pH Range 0~14pH ORP -2000mV - 2000mV Conductivity 1.0 uS/cm~ 20.0 mS/cm TDS 1.0 ppm~10.00 ppt Salinity 0.0~ 16.0 g/L Temperature 0~60 C Dissolved Oxygen 0.0-400.0%, 0.00-40.00 mg/L Transport Package 1 Piece/Carton Specification Diameter 45 x Length 176 mm Trademark twinno Origin Shanghai, China HS Code 9027 Production Capacity 1000pieces/Month

Product Description

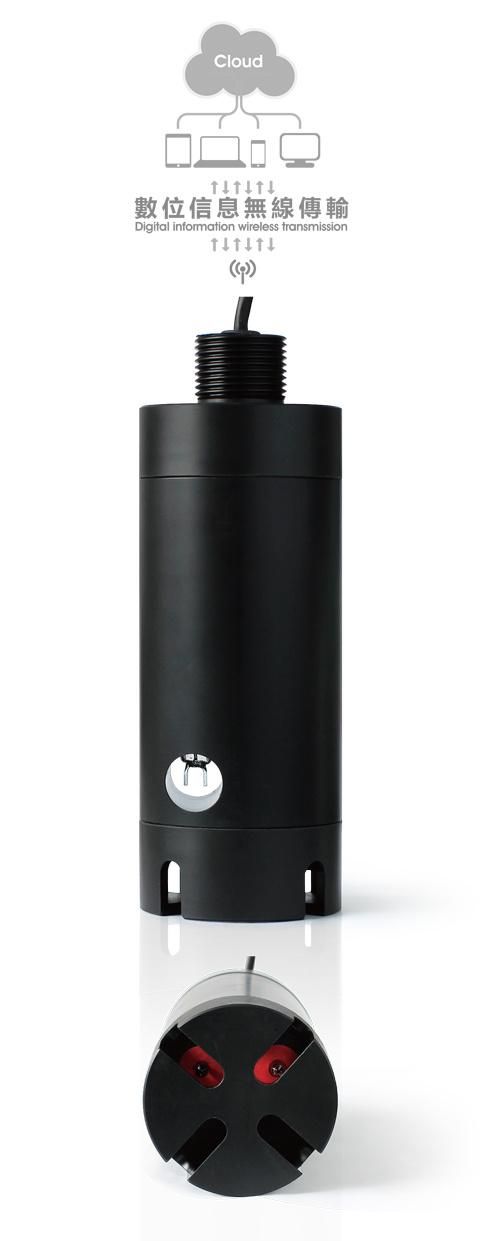

CS8050D Multi-parameter Digital Sensor
pH,ORP, Conductivity/TDS/Salinity, Dissolved Oxygen,Temperature,RS485 Modbus RTU



Model No.	CS8050D
Specifications
pH	0 - 14pH
Zero (pH)	7.00 ± 0.25
Resolution	0.01pH
Reference system	SNEX Ag/ AgCl/ KCl
Liquid junction	SNEX
ORP	-2000mV - 2000mV
Resolution	1mV
Accuracy	±1mV
Reference system	±1%
Sensitive membrane	Pt
Liquid junction	SNEX
Conductivity	1.0 μS/cm~ 20.0 mS/cm
Resolution	0.1 μS/cm~ 0.01 mS/cm
Conductivity coefficient	K=1.0
Temperature coefficient	0.00 %~10.00 %
TDS	1.0 ppm~ 10.00 ppt
Resolution	0.1 ppm~ 0.01 ppt
TDS coefficient	0.40~ 1.0
Salinity	0.0~ 16.0 g/L
Resolution	0.1 g/L
Accuracy	±0.5% FS
Salinity coefficient	0.2~0.8, default(0.60)
Liquid junction	Glass,Pt
Dissolved Oxygen	0.0-400.0%,0.00-40.00 mg/L
Resolution	0.1%,0.01 mg/L
Accuracy	±0.2% FS
Pressure	+20 ~ -10 bar
Principle	Polarography
Salinity compensation range	0.0~50.0 ppt
Temperature compensation range	0.0~50.0 °C
Pressure compensation range	600~2000 mBar
Response time	< 60 s (95%,25 °C)
Stabilization time	15 - 20 min
Zero drift	<0.5%
Temperature	0 - 60 °C
Accuracy	± 0.5 °C
Unit	°C
Sensor
Housing material	POM
Dimensions	Φ72 x 205 mm
Weight	1.0KGS
Electrode cap	NPT 1"
Cable length	5m
Connection	terminals
Communication interface/protocol	RS-485 Modbus RTU
Power supply	DC-12V
Output	pH,ORP,Conductivity, TDS,Salinity, Dissolved Oxygen,Temperature
Waterproof rate	IP68

After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.


FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.

How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.
