• Model NO.：CS3701D
• Certification：RoHS, CE, ISO9001
• Type：Concentration Meter, EC,TDS,Salinity
• Function：Over Voltage Protection, Overheat Protection, Short Circuit Protection, Water Quality Mornitoring
• Materials：Plastic
• Conductivity Measring Range：1.0 μS,cm~ 20.00 mS,cm
• TDS Measring Range：1.0 ppm~ 10.00 ppt
• Pressure：0-8Bar
• Housing Material：PP
• Liquid Junction Material：Glass, Platinumi
• IP Rate：IP68
• Installation thread：NPT 3,4 inch
• Power supply：12VDC
• Transport Package：1 Set,Carton
• Specification：Diameter 30mm*Length 160mm
• Trademark：Twinno
• Origin：Shanghai, China
• HS Code：90278099
• Production Capacity：5000sets ,Month
• Package size per unit product：25.00cm * 15.00cm * 10.00cm
• Gross weight per unit product：1.500kg
• Lead Time：15 days (1 - 500 Pieces) 30 days (501 - 1500 Pieces) 60 days (1501 - 3000 Pieces) To be negotiated ( > 3000 Pieces)

Basic Info.

Model NO. CS3701D Certification RoHS, CE, ISO9001 Type Concentration Meter, EC/TDS/Salinity Function Over Voltage Protection, Overheat Protection, Short Circuit Protection, Water Quality Mornitoring Materials Plastic Conductivity Measring Range 1.0 μS/cm~ 20.00 mS/cm TDS Measring Range 1.0 ppm~ 10.00 ppt Pressure 0-8Bar Housing Material PP Liquid Junction Material Glass, Platinumi IP Rate IP68 Installation thread NPT 3/4 inch Power supply 12VDC Transport Package 1 Set/Carton Specification Diameter 30mm*Length 160mm Trademark Twinno Origin Shanghai, China HS Code 90278099 Production Capacity 5000sets /Month

Packaging & Delivery

Package size per unit product 25.00cm * 15.00cm * 10.00cm Gross weight per unit product 1.500kg Lead Time 15 days (1 - 500 Pieces)
30 days (501 - 1500 Pieces)
60 days (1501 - 3000 Pieces)
To be negotiated ( > 3000 Pieces)

Product Description

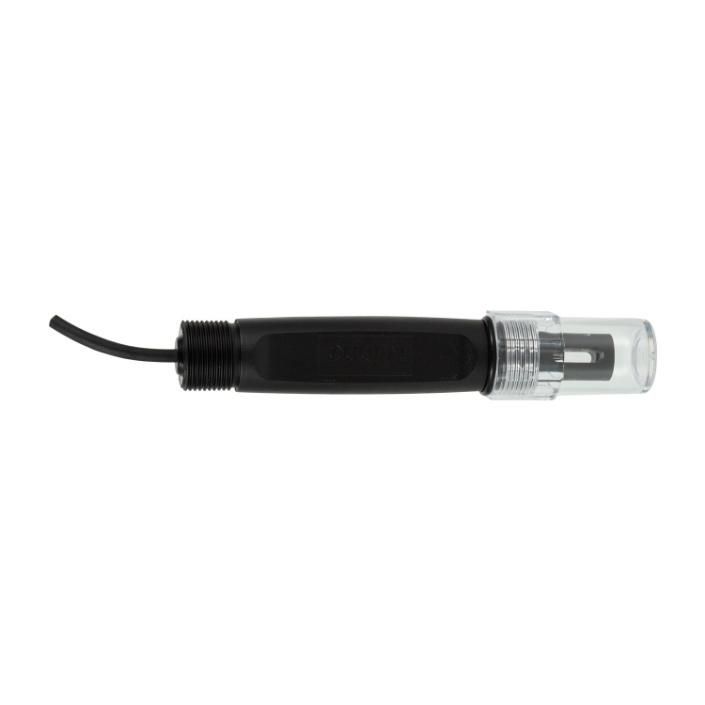

CS3701D Digital Conductivity Sensor



Designed for Pure, Boiler Feed water, Power Plant, Condensate Water.

Easy to connect to PLC, DCS, industrial control computers, general purpose controllers, paperless recording instruments or touch screens and other third party devices.

Conductivity sensor technology is an important field of engineering and technology research, used for the liquid conductivity measurement, is widely used in human production and life, as electric power, chemical industry, environmental protection, food, the semiconductor industry research and development, Marine industrial production and essential in the development of technology, a kind of testing and monitoring devices.The conductivity sensor is mainly used to measure and detect industrial production water, human living water, seawater characteristics and battery electrolyte properties.

Measuring specific conductivity of aqueous solutions is becoming increasingly important for determining impurities in water. The measurement accuracy is greatly affected by temperature variation, polarization of the contact electrode surface, cable capacitance, etc.Twinno has designed a variety of sophisticated sensors and meters that can handle these measurements even in extreme conditions.

Suitable for low conductivity applications in the semiconductor, power, water and pharmaceutical industries, these sensors are compact and easy to use.The meter can be installed in several ways, one of which is through the compression gland, which is a simple and effective method of direct insertion into the process pipeline.

The sensor is made from a combination of FDA-approved fluid receiving materials. This makes them ideal for monitoring pure water systems for the preparation of injectable solutions and similar applications.In this application, the sanitary crimping method is used for installation.





Model NO.	CS3701D
Power/Outlet	9~36VDC/RS485 MODBUS RTU
Measure material	Graphite (2 Electrode)
Housing material	PP
Waterproof grade	IP68
Measurement range	Con:1-30000us/cm;  TDS:0-15000mg/L Salinity:0-18ppt;;0-1.8%;0-18g/L
Accuracy	±1%F.S
Pressure resistance	≤0.6Mpa
Temperature compensation	NTC10K
Temperature range	0-80ºC
Calibration	Sample calibration, standard liquid calibration
Connection methods	4 core cable
Cable length	Standard 10m cable, can be extended to 100m
Installation thread	NPT3/4''
Application	General application, river, lake , drink water,etc.

After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.


FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.

How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.





Delivery and Packing:






Our company:
