• Model NO.：CS7832D
• Certification：RoHS, CE, ISO9001, ISO9001, CE
• Type：Concentration Meter, TSS,MLSS,Turbidity Electrode
• Function：Over Voltage Protection, Overheat Protection, Short Circuit Protection
• Materials：Stainless Steel
• Power：12VDC
• Output：RS485 MODBUS RTU
• Measure：180 degree infrared
• Housing material：POM+316 Stainless steel
• Waterproof grade：IP68
• Measurement range：0.01-400NTU
• Accuracy：<measured value +,- 2%
• Installation thread：G3,4
• Transport Package：1 PCS,Carton
• Specification：Diameter 50mm* length 223mm
• Trademark：Twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：3000PCS,Month
• Package size per unit product：35.00cm * 28.00cm * 12.00cm
• Gross weight per unit product：2.500kg
• Lead Time：15 days (1 - 500 Pieces) 30 days (501 - 1500 Pieces) 60 days (1501 - 3000 Pieces) To be negotiated ( > 3000 Pieces)

Basic Info.

Model NO. CS7832D Certification RoHS, CE, ISO9001, ISO9001, CE Type Concentration Meter, TSS/MLSS/Turbidity Electrode Function Over Voltage Protection, Overheat Protection, Short Circuit Protection Materials Stainless Steel Power 12VDC Output RS485 MODBUS RTU Measure 180 degree infrared Housing material POM+316 Stainless steel Waterproof grade IP68 Measurement range 0.01-400NTU Accuracy <measured value +/- 2% Installation thread G3/4 Transport Package 1 PCS/Carton Specification Diameter 50mm* length 223mm Trademark Twinno Origin Shanghai, China HS Code 9027 Production Capacity 3000PCS/Month

Packaging & Delivery

Package size per unit product 35.00cm * 28.00cm * 12.00cm Gross weight per unit product 2.500kg Lead Time 15 days (1 - 500 Pieces)
30 days (501 - 1500 Pieces)
60 days (1501 - 3000 Pieces)
To be negotiated ( > 3000 Pieces)

Product Description

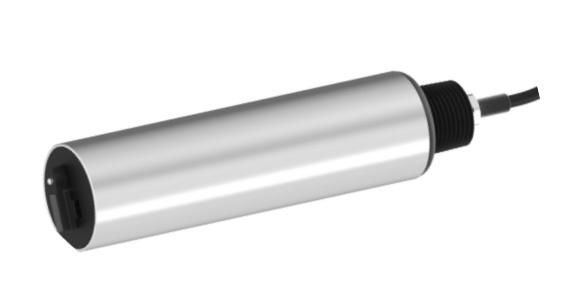

CS7832D Digital Turbidity Sensor with Automatic Cleaning Function





The principle of the turbidity sensor is based on the combined infrared absorption and scattered light method. The ISO7027 method can be used to continuously and accurately determine the turbidity value. According to ISO7027 infrared double-scattering light technology is not affected by chromaticity to determine the sludge concentration value. The self-cleaning function can be selected according to the use environment. Stable data, reliable performance; built-in self-diagnosis function to ensure accurate data; simple installation and calibration.

The electrode body is made of 316L stainless steel, which is corrosion-resistant and more durable. The seawater version can be plated with titanium, which also performs well under strong corrosion. Fully automatic electrode scraper, self-cleaning function, effectively prevent solid particles from covering the lens, improve measurement accuracy, and prolong use accuracy.

IP68 waterproof design, can be used for input measurement. Real-time online recording of Turbidity/MLSS/SS, temperature data and curves, compatible with all water quality meters of our company.





Typical application:

Turbidity monitoring of water from waterworks, water quality monitoring of municipal pipeline network; industrial process water quality monitoring, circulating cooling water, activated carbon filter effluent, membrane filtration effluent, etc.





Main features:


1. The internal upgrade of the sensor can effectively prevent the internal circuit from dampness and dust accumulation, and avoid damage to the internal circuit.
2. The transmitted light adopts stable invisible near-monochromatic infrared light source, which avoids the interference of chroma in liquid and external visible light to sensor measurement.And built-in luminosity compensation, improve the measurement accuracy.
3. The use of quartz glass lens with high light transmittance in the optical path makes the transmission and reception of infrared light waves more stable.
4. Wide range, stable measurement, high precision, good reproducibility.
5. Communication functions: Two photoelectric isolation signal output, one RS-485 communication interface (Modbus-RTU protocol compatible), the fastest communication interval is 50ms.One way 4 ~ 20mA current output, 4-20mA can reverse output; No instrument, can be directly connected to computers, PLC and other devices with RS485/4-20mA signal interface for data acquisition.It is convenient for users to integrate the sensor into the upper computer system and the IoT system and other industrial control environment.
6. Without meter, the sensor can be set online through software, from the machine address and baud rate, online calibration, restore factory, 4-20mA output corresponding range, modify the range, proportional coefficient and incremental compensation Settings.

Technical parameters:


Model No.	CS7832D
Power/Outlet	9~36VDC/RS485 MODBUS RTU
Measurement mode	135°IR scattered light method
Dimensions	Diameter 50mm*Length 223mm
Housing material	PVC+316 Stainless steel
Waterproof rating	IP68
Measurement range	10-4000 NTU
Measurement accuracy	±5% or 0.5NTU,whichever is grater
Pressure resistance	≤0.3Mpa
Measuring temperature	0-45ºC
Calibration	Standard liquid calibration, water sample calibration
Cable length	Default 10m,can be extended to 100m
Thread	1 inch
Weight	2.0kg
Application	General applications, rivers, lakes, environmental protection, etc.

After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.




FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.

How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.
