Analysis Instrument

Handheld Portable Dissolved Oxygen Meter DO Meter

Shanghai Chunye Instrument Technology Co., Ltd.
  • Warranty:1 year warranty lifelong free technical support
  • Display:Digital

Base Info

  • Model NO.:DO200
  • Appliance:Food Analysis, Medical Research, Biochemistry
  • Portable:Portable
  • Certification:RoHS, CE, ISO9001
  • Type:Concentration Meter
  • Analysis Method:Chemical Analysis
  • Application:Agriculture & Food
  • Operating Mode:Keyboard
  • Off Mode:Automatic
  • Chemical Analysis Type:electrochemistry
  • Measuring Range:4.5-200.0 Mg,L
  • Accuracy:0.01-0.1 Mg,L
  • Screen:20* 30 mm Multi-Line LCD with Backlight
  • Lock:Auto , Manual
  • Protection Grade:IP67
  • Temperature Compensation:Yes
  • Salinity Range:0.0 Mg,L (Ppm) - 13.00 G,L (Ppt)
  • Salinity Coefficient:0.48~0.65, Adjustable (Factory Coefficient:0.65)
  • Sample Requirements:50ml
  • Sample Treatment:4.8<pH<5.2
  • Transport Package:1 Piece,Carton
  • Specification:6.5x9.5x22cm
  • Trademark:Twinno
  • Origin:Shanghai, China
  • HS Code:9027
  • Production Capacity:5000pieces,Month
  • Package size per unit product:35.00cm * 25.00cm * 12.00cm
  • Gross weight per unit product:2.500kg
  • Lead Time:15 days (1 - 50 Pieces) 30 days (51 - 200 Pieces) 60 days (201 - 500 Pieces) To be negotiated ( > 500 Pieces)

Description







OthersScreen65*40mm Multi-line LCD Backlight DisplayProtection GradeIP67Automatic Power-off10minutes (optional)Working Environment-5~60ºC,relative humidity<90%Data storage256 sets of data storageDimensions94*190*35mm (W*L*H)Weight250g Sensor/Electrode specificationsElectrode model No.CS4051Measurement range0-40 mg/LTemperature0 - 60 °CPressure0-4 barTemperature sensorNTC10KResponse time< 60 s (95%,25 °C)Stabilization time15 - 20 minzero drift<0.5%Flow rate> 0.05 m/s Residual current< 2% in airHousing materialSS316L, POMDimensions130mm, Φ12mmMembrane capReplaceable PTFE membrane capElectrolytePolarographicConnector6-pin

After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.



FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.

How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.




Delivery and Packing:

Handheld Portable Dissolved Oxygen Meter DO Meter


Handheld Portable Dissolved Oxygen Meter DO Meter

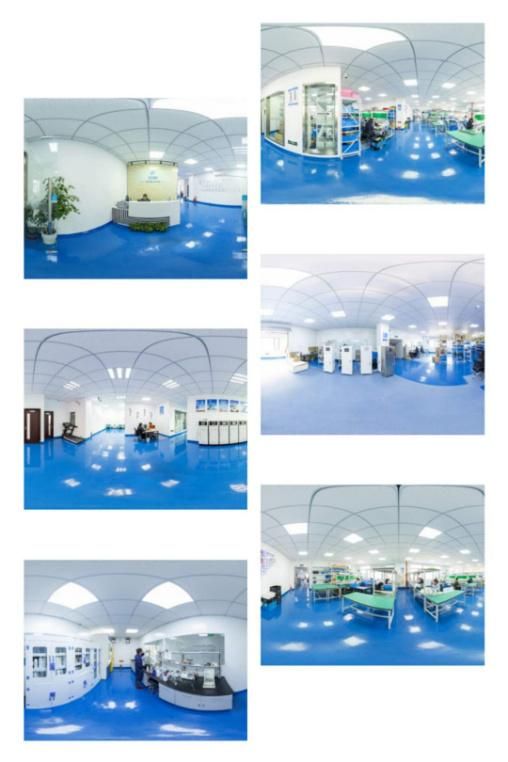

Our company:

Handheld Portable Dissolved Oxygen Meter DO Meter

 Handheld Portable Dissolved Oxygen Meter DO MeterHandheld Portable Dissolved Oxygen Meter DO Meter
