• Model NO.：YX-WK,QWSF
• Weight：0-100Kg
• Power Source：AC220V±22V
• Customized：Non-Customized
• Product Description：Microwave Moisture Analyzer
• Warranty：1year
• Testing Time：20~40min
• Temperature Precision：±2.5ºC
• Power Supply：100 ~260V, 50,60Hz
• Cabinet Dimension：580mm× 650mm× 660 mm
• Maximum Power：≤ 1.6kw
• Transport Package：Standard Export Package
• Trademark：Labkits
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. YX-WK/QWSF Weight 0-100Kg Power Source AC220V±22V Customized Non-Customized Product Description Microwave Moisture Analyzer Warranty 1year Testing Time 20~40min Temperature Precision ±2.5ºC Power Supply 100 ~260V, 50/60Hz Cabinet Dimension 580mm× 650mm× 660 mm Maximum Power ≤ 1.6kw Transport Package Standard Export Package Trademark Labkits Origin Hunan China Production Capacity 500PCS/Month

Product Description

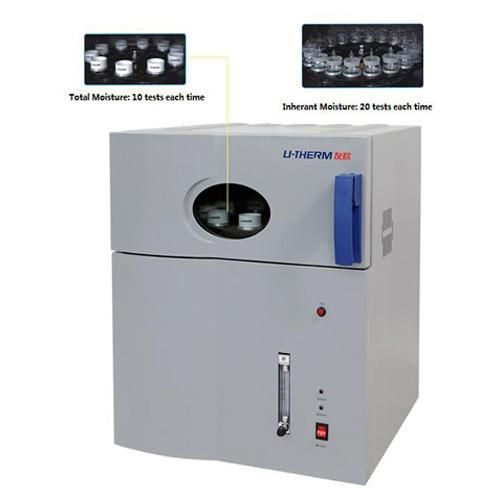

Item: Full Automatic Microwave Moisture Analyzer
Model: YX-WK/QWSF

Application area
It is applicable to test the moisture in coal, heavy oil, carbon, and mineral for various industries.

Technical Parameters
Sample Size: Inherent Moisture 1±0.2g (Diameter < 0.2mm); Total Moisture 10g~12g (Diameter< 6mm)
Sample Quantity: 20 Samples each time (Inherent Moisture)
10 Samples each time (Total Moisture)
Built-in Mettler Satorious Balance: resolution 0.1mg/0.0001g
Testing Time: 20~40min
Temperature Precision: ±2.5ºC
Microwave Leaking: Superior to the requirement of national standard GB4706.21
Power Supply: 100 ~260V, 50/60HZ
Maximum Power ≤ 1.6KW
Cabinet Dimension: 580mm× 650mm× 660 mm
Weight: 75kgs

Features Highlight
1. The computer automatically control sample weighting and determine whether moisture is evaporated. The results will be calculated, saved and printed out. Integrated with electronic balance, the measuring results are stable and reliable.
2. One test could determine the all-moisture or air-dry basis moisture of a couple of samples (rather than a single one).
3. Microwave power control, infrared heating control and time control mechanisms are available for option.
4. Adopt the fast measuring method by microwave drying, measuring time is short and results are accurate and reliable.
5. Introduce the advance USB technology, complying with the latest development in Computer technology. One PC could control 1 ~ 4 sets microwave moisture analyzer, or integrated into a multi-function meter with other instruments, realizing one PC control multi-instrument.
6. Completely support Windows systems; high stability; can link electronic scale and share data in long distance through network.
7. No microwave leakage; it is quite safe during operation.
8. High quality inner stainless chamber to make the microwave reflection more stable; thus the temperature is good uniform inside the chamber.
9. Option of nitrogen gas connection, so the testing could be made in the nitrogen atmosphere (inert gas).
10. Observation window is available for checking the sample during testing.

Configuration

Item	Quantity	Unit
Microwave Oven	1	PC
Microwave Card	1	PC
Asbestos Board	2	PC
Φ40 Measuring Bottle	20	PC
Φ70 Measuring Bottle	10	PC
Controlling Cable	1	PC
0.1mg Electronic Scale	1	Set
Connecting Cable For Electronic Scale	1	PC
Tray and Bracket	1	Set
Wrench	1	PC
Screwdriver	1	Set
Socket Board	1	Set
Application Software for Windows System	1	CD
Instruction Manual	1	PC
