• Model NO.：YX-WK,MFL
• Power Source：AC220V±22V
• Customized：Non-Customized
• Product Description：Muffle Furnace
• Temperature Testing Range：Rt - 1000 ºC
• Time Controlling Range：0~5999 Min
• Dimension：460mm×550mm×400 mm
• Transport Package：Standard Export Package
• Trademark：Labkits
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. YX-WK/MFL Power Source AC220V±22V Customized Non-Customized Product Description Muffle Furnace Temperature Testing Range Rt - 1000 ºC Time Controlling Range 0~5999 Min Dimension 460mm×550mm×400 mm Transport Package Standard Export Package Trademark Labkits Origin Hunan China Production Capacity 500PCS/Month

Product Description

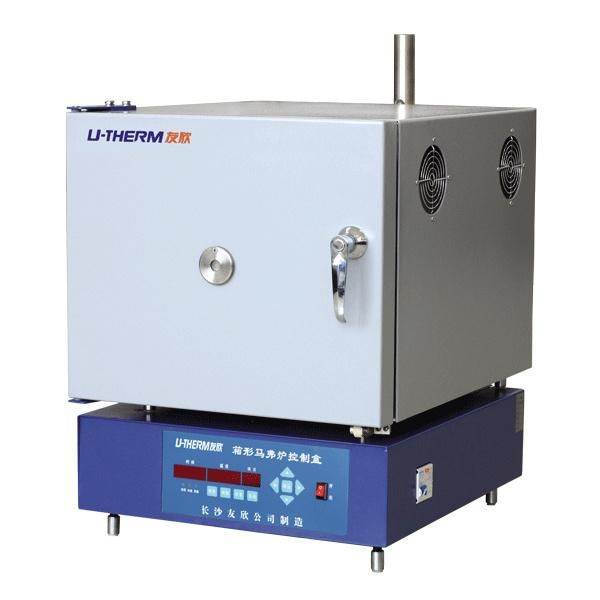

Item: Coal Ash & Volatile Matter Tester – Muffle Furnace
Model: YX-WK/MFL


Application Area
Applicable in the industry such as electrical power, coal, commerce inspection, environment protection, metallurgy, paper making, petrochemical, earth probe and research institute or quality inspection organization to test the ash or Volatile Matter content in the coal materials.

Technical Parameter
Temperature testing range: RT ~ 1000 ºC
Temperature testing resolution: 1 ºC
Temperature uniformity: ± 5 ºC
Time controlling range: 0~5999 min
Time controlling resolution: 1 min
Time testing precision: 30s/24h
Power Supply: 220V, 50/60HZ
Power: ≤ 4 KW
Dimension: 460mm×550mm×400 mm
Weight: 55kg

Features
1. Controlled by microcontroller. With LED displayer and film keyboard, convenient in operation.
2. Automatically read temperature, control temperature, and control time; with constant temperature system. The result needs manual calculation and can not be stored.
3. In every experiment, the ash or Volatile Matter of a couple of samples (rather than a single sample) can be tested out.
4. Alternative in temperature controlling or time controlling, so the customer can do the experiment according to his own need.
5. Using the advanced light-fiber muffle furnace. With scientific and novel structure. Quick rise in temperature. Excellent performance in stabilizing the furnace temperature.

Configuration

Item	Quantity	Unit
Muffle Furnace	1	PC
Muffle Furnace Controlling Unit	1	PC
Ash Constituent Controlling Card	1	PC
Nickel Chromium Thermocouple (300mm)	1	PC
Ash Constituent Crucible	10	PC
Ash Constituent Crucible Bracket	1	PC
Volatile Matter Crucible	10	PC
Volatile Matter Bracket	1	PC
Chimney	1	PC
Asbestos Board	2	PC
Wrench	1	PC
Screwdriver	1	Set
Socket Board	1	Set
Instruction Manual	1	PC
