• Model NO.：TPY-6PC
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. TPY-6PC Origin Hunan China Production Capacity 500PCS/Month

Product Description

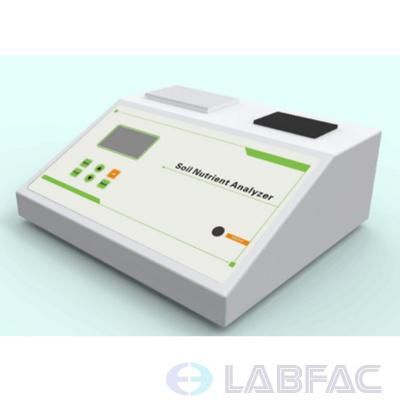

Item: Soil Nutrient Meter Detector Analyzer Tester Testing Equipment test
Model: TPY-6A

Specification

1           Soil Nutrient technical parameter
1.1         Stability: Absorbency of light drift<0.003
1.2         Repeatability: Absorbency of light<0.005
1.3         Linearity errors: red light for Copper sulfate, and blue light forpotassium bichromate < 3.0%
1.4         Sensitivity: Red light≥4.5x0-5
                                                 Blue light≥3.17×10-3

1.5          Wavelength range: Red light 620±5nm; Blue light440±5nm
1.6          Anti-Knocking performance: qualified

2. pH technical parameter
Testing range: 1-14
Error: ±0.1

3. Salinity technical parameter
Testing range: 0.01% -1.00%
Error: ±5%

4. Soil moisture technical parameter (TPY-7PC)
Moisture unit: % (m³/m³)
Accuracy: ±2%
Moisture content rate testing range: 0-100%

5. Instrument technical parameter
Display mode: LCD display
Interface: USB
Working environment: 0~40ºC  35~85%RH
Alternating current (AC): 220V-240V, 50Hz, adapter: 12V/3A
Size: 32*28*11cm


Model	Function
TPY-6PC	Based on TPY-6A, with a software, be able to connect to computer for data storage
